10-10
8.Trailer socket
A hella’s 7-pin trailer socket is equipped as a standard equipment.Lamp on a trailer can be
operated through the socket.
Note:
Lamp on the trailer should be of the same size or smaller than those on the trailer.
5AVSS 0.85GYTurn signal (RH)5
4AVSS 0.85WLStop Light4
3AVSS 0.85GBTurn signal (LH)3
1AVSS 2.0BEarth1
7AVSS 0.85WGReserve light7
6AVSS 0.85YWRear Light (Number plate)6
2AVSS 0.85YSmall light(Tail light)2
Wire HousingSpecificationColorDescriptionSocket No.

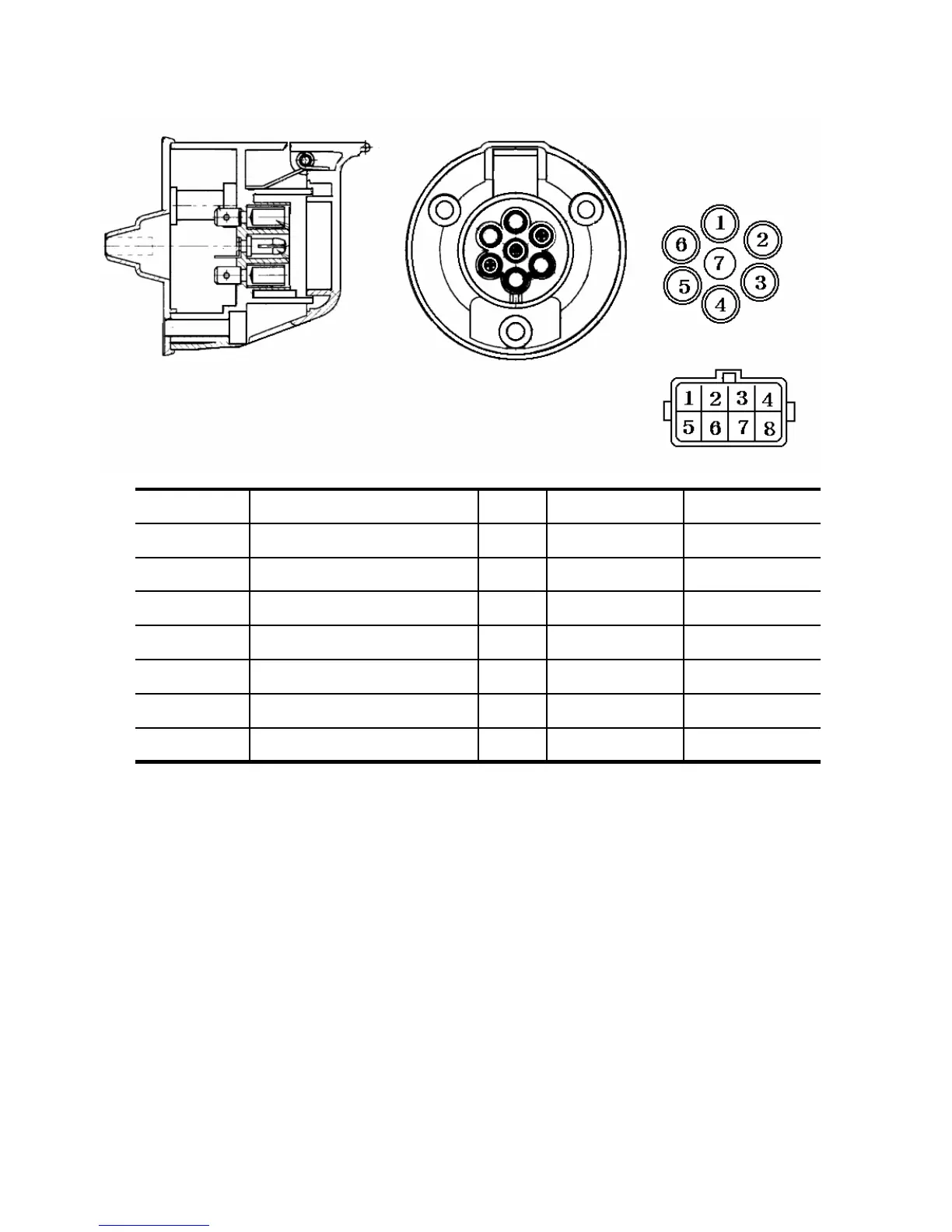

Fig.10-23
