5-11
(3) Disassembly of reverse shaft and related parts.

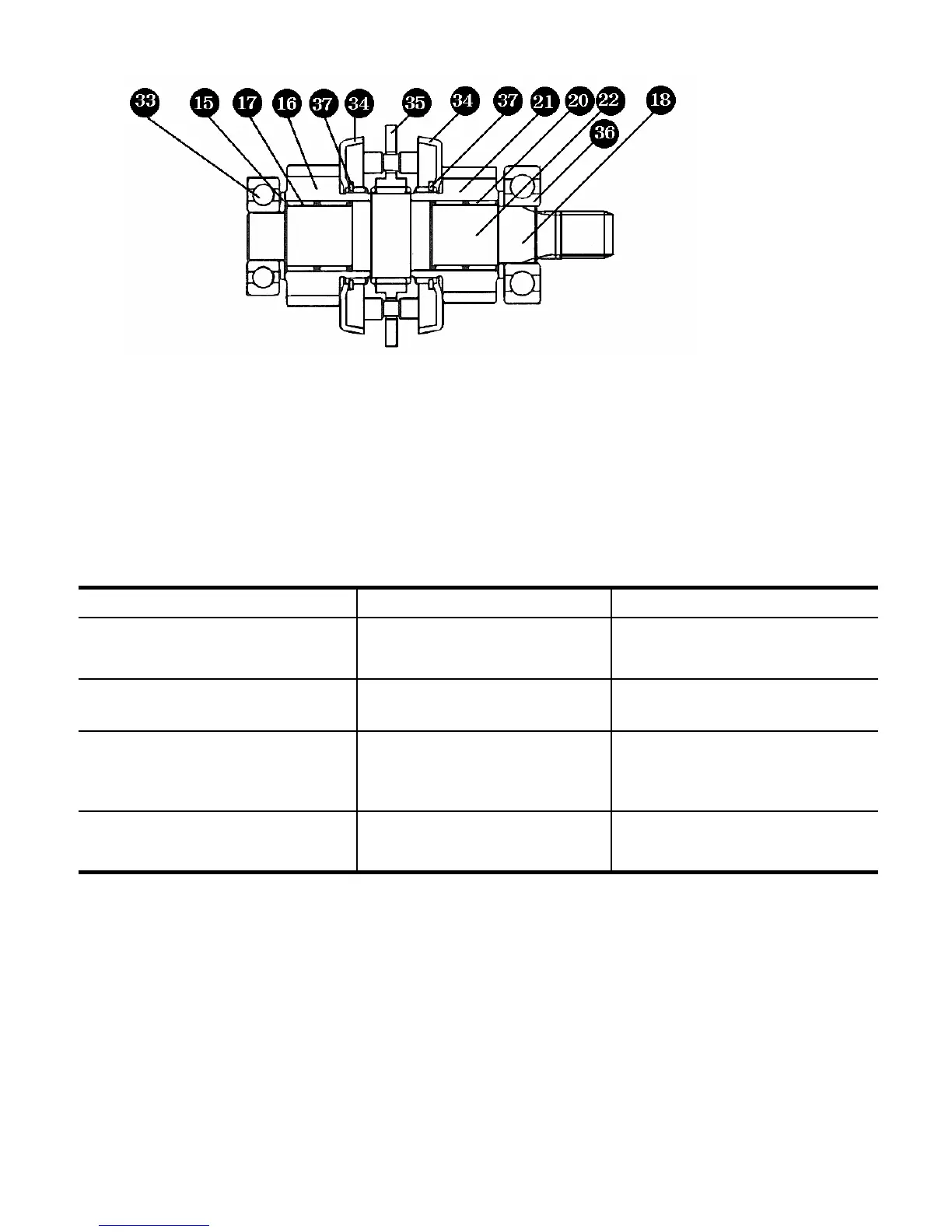

Fig.5-26
(17) Needle bearing
(20) Needle bearing
(33) RBB(6305)
(34)Synchro-cup
(35)Synchro-hub comp
(36)RBB(6306)
(37) Snap ring
a.Remove bearings(33 and 36)
b.Remove washers(15 and22),needle bearings(17 and 20),synchro-hub comp,(35),etc.synchro-cup(34)
can be taken off as an assembly with gears(16 and 21).
c.Remove snap ring(37) and detach the synchro-cup.
1.2 INSPECTION
Before and after disassembly,inspect each part for points mentioned below,and replace if necessary.
9.5 Kgf
(20.9lbs)
13.0-18.8 Kgf
(28.7-41.5 lbs)
Synchro-hub thrust for shifting
Neutral-Engaging
-51.17 ㎜
(2.015 in)
Assembled width of
synchromesh assembly
Dimension A
0.3 ㎜
(0.012 in)
0 ㎜
(0 in)
Stepped wear of teeth
0.5 ㎜
(0.020 in)
0.1 - 0.2 ㎜
(0.004-0.008 in)
Backlash of each gear (measured
in meshed condition)
Usable limitsStandard valuesInspection items
-Inspect bearings such as ball bearings and needle bearings for abnormalities in rotation such as
irregularity,hitching,etc.by turning them with pressure applied by hand.Replace defective ones.
-Seriously worn or damaged parts should also be placed.
To Next Page
