5-23
0.5 mm
(0.020 in)
0 mmThrust play of fixed gears
-51.17
(2.015in)

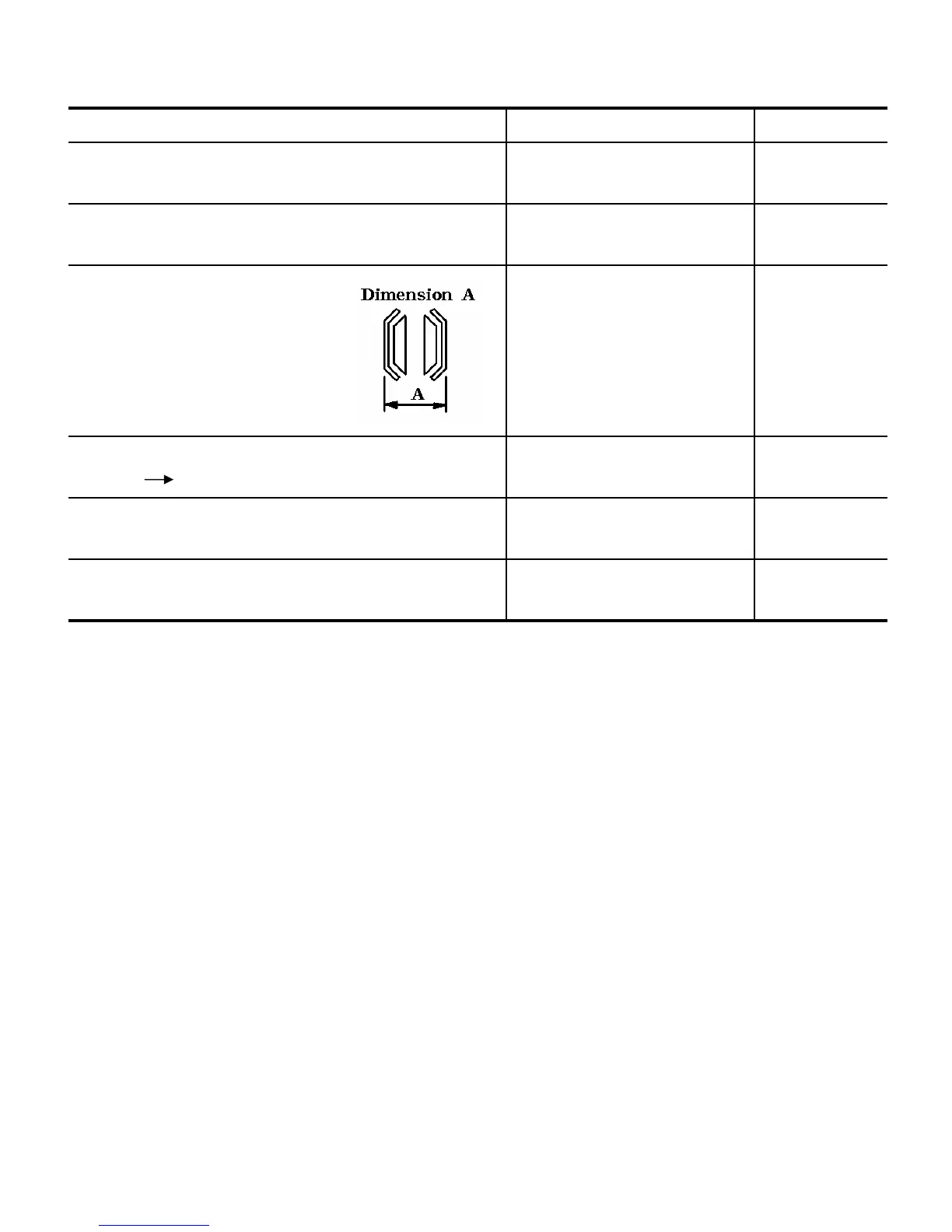

Assembled width of synchromesh
assembly
0.5mm
(0.020 in)
0.1-0.2mm(0.004-0.008in)Backlash of each gear(measured in meshed condition)
0.5 mm
(0.020 in)
Wear in each shifter
9.5 Kgf
(20.9 lbs)
13.0-18.8 Kgf
(28.7-41.4lbs)
Synchro-hub thrust for shifting
Neutral Engaging
0.3 mm
(0.012 in)
0mmStepped wear of teeth
Usable limitsStandard ValueInspection Item
3.2 INSPECTION
Before and after disassembly,inspect each part for points mentioned below,and replace if necessary.
- Inspect bearings such as ball bearings and needle bearings for abnormalities in rotation such as
irregularity,hitching,etc. by turning them with pressure applied by hand.Replace defective ones.
- Serious worn or damaged parts should also be replaced.
+0.18
-0.424
