5-25
a.While holding the gear in the position shown in the drawing,install the assembly of the main
change gears and related parts in position by tapping it slightly on the front of a plastic hammer
and then the gears by tapping it on the rear.
b. Sub assemble the shifter stay,spring, and steel ball(Fig.5-47) on the reverse shift metal(support)
and install the sub-assembly on the shift stay
c. Align the holding parts in the reverse shift metal with RBB’s of the sub assemblies of the
counter gears and main change gears, straight pins,etc.,and install the reverse shift metal on the
spacer transmission case.
Note:
-Align the cut-away part of gear to clear the gear
-When installing the O-ring,take care not to damage it or allow it to fall

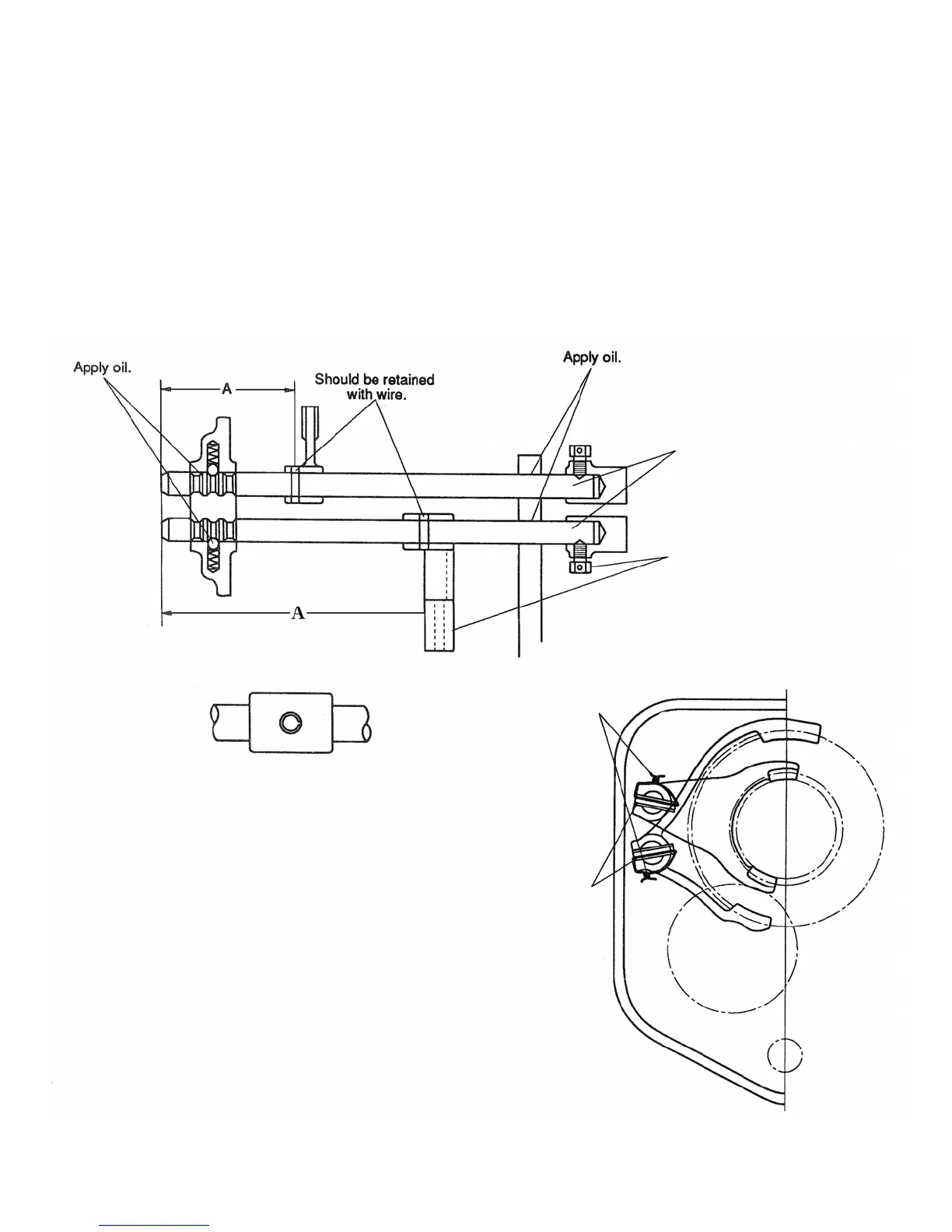

When installing main
change Shifter stays,take
care not to mix them:
shifter with longer
dimension A should be
installed in the lower
position
Shifter forks and
tightening bolts should
be installed in a position
about 180°apart from
each other
Note:
-Install spring(roll) pins so that their seams are
positioned as illustrated in Fig.5-49
Spring pin ends should
be driven in until their
ends become flush with
the shifter surfaces
Fig.5-49
Fig.5-48
Spring pins should be
retained with wire and each
wire should be twisted in
the position illustrated
To Next Page
