CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
21

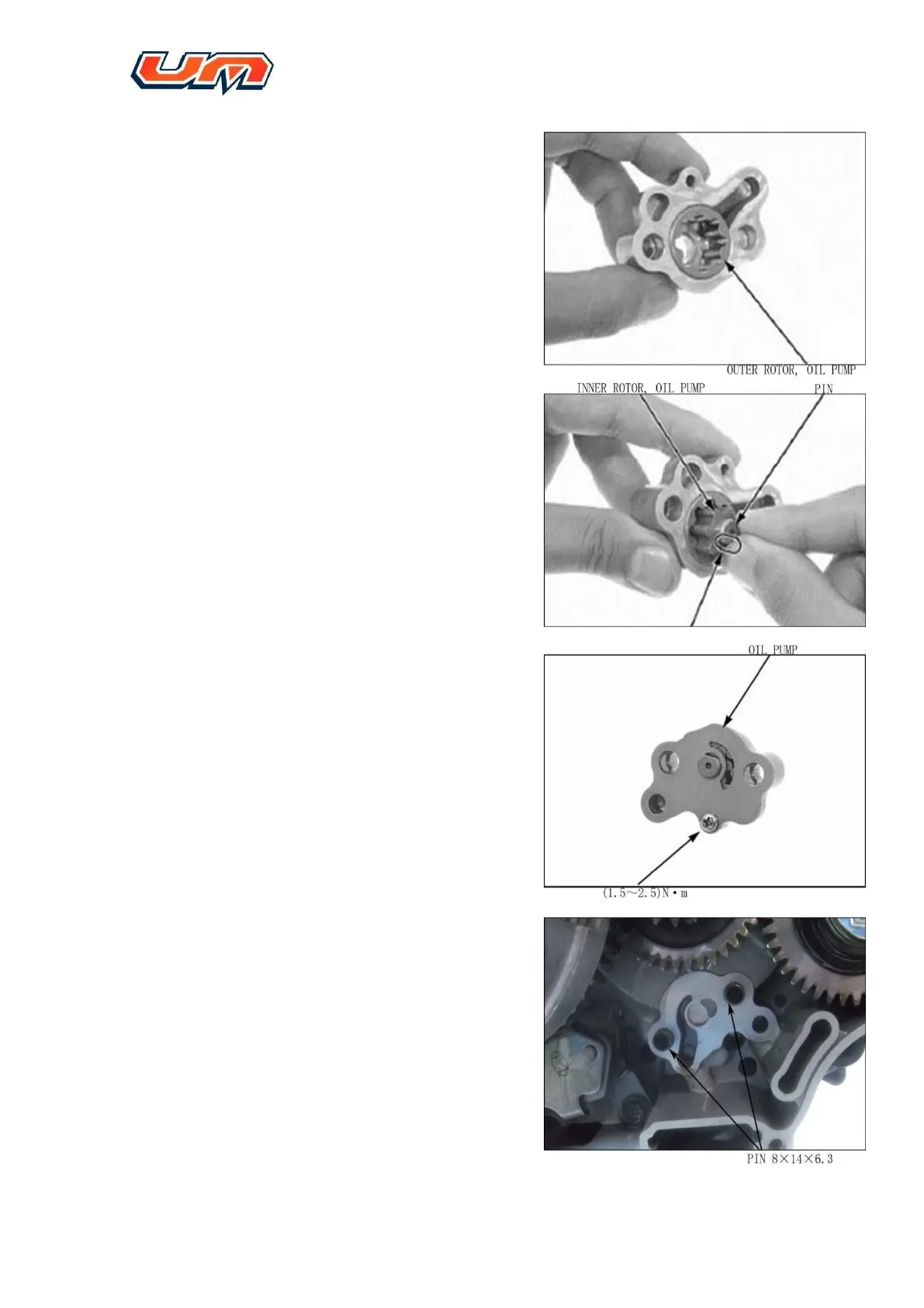

3.4.4.1. Apply lube oil on the circumference of outer
rotor and install the rotor into oil pump casing.
3.4.4.2. Apply lube oil on the circumference of inner
rotor, pin shaft and pin and install them into oil pump
casing.
3.4.4.3. Install cover plate of oil pump and tighten the
screw.
Tightening torque: 3.0 N.m
3.4.4.4 Install locating pin on the engine.
