CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
32

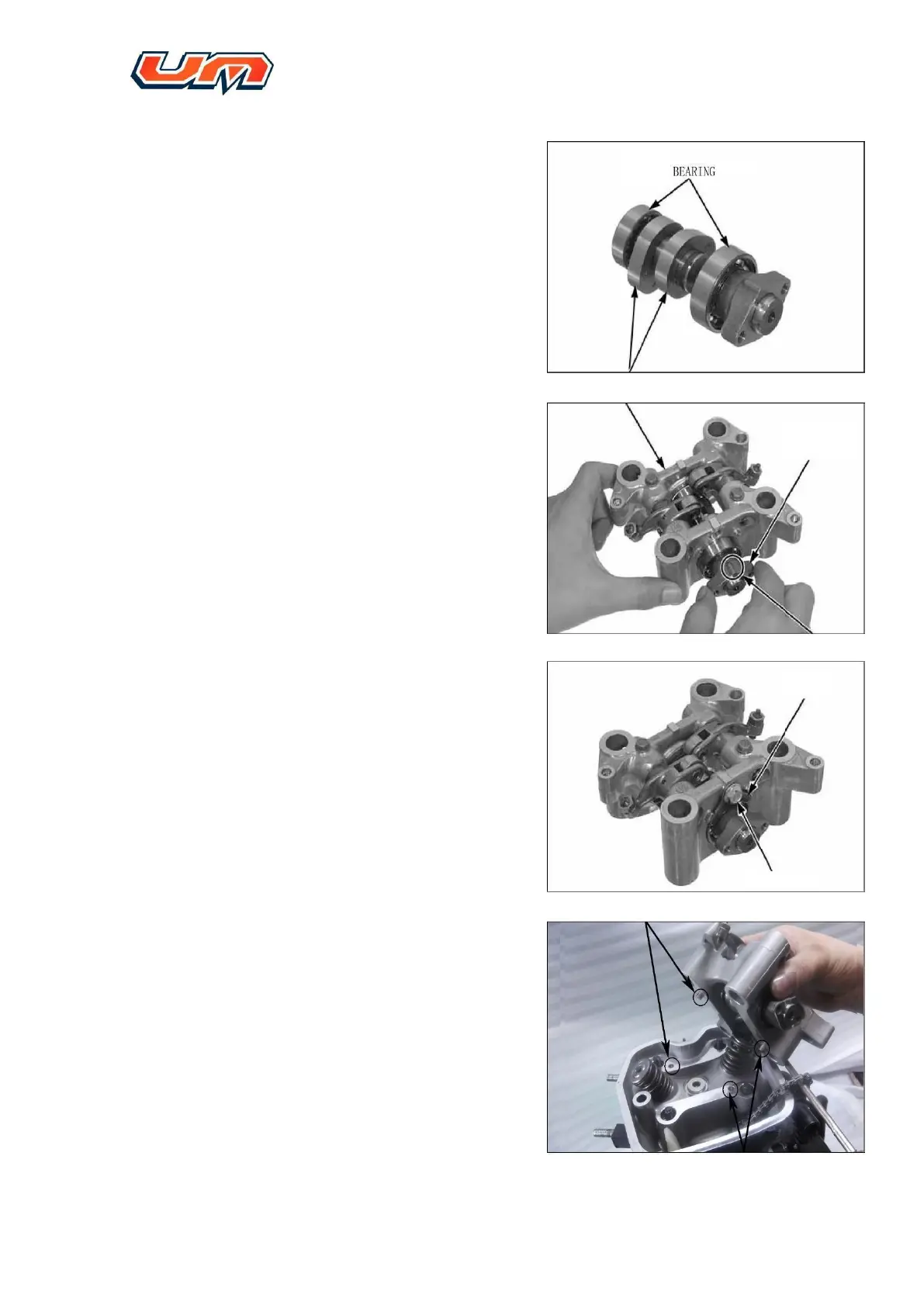

4.3.2.5. Before installing camshaft, apply appropriate
amount of lube oil on the circumference of bearings (at
both ends). Then apply appropriate amount of SO
2
grease into cams.
4.3.2.6. Mounting the camshaft into the rocker bracket,
take special attention to the projected point on flange
shall be upward, as shown in the figure.
4.3.2.7. Mounting stop plate and fastening bolts
Tightening torque: 10 N.m
4.3.2.8. Install the completed rocker arm assembly to
cylinder head. Be careful to check whether two
positioning pins are in good conditions before
assembling.
