4. PrtSc cop y & st orage func tion
Introd uction to S ystem Prom pt
There is 1 PrtSc key in upper left corner of the scree
n
for UTD2000L/2000EX series of oscillograph. User
can press the key for screen copy after plugging in U-
disk. Displayed image can be saved in U-disk by wa
y
of “.BMP” format
.

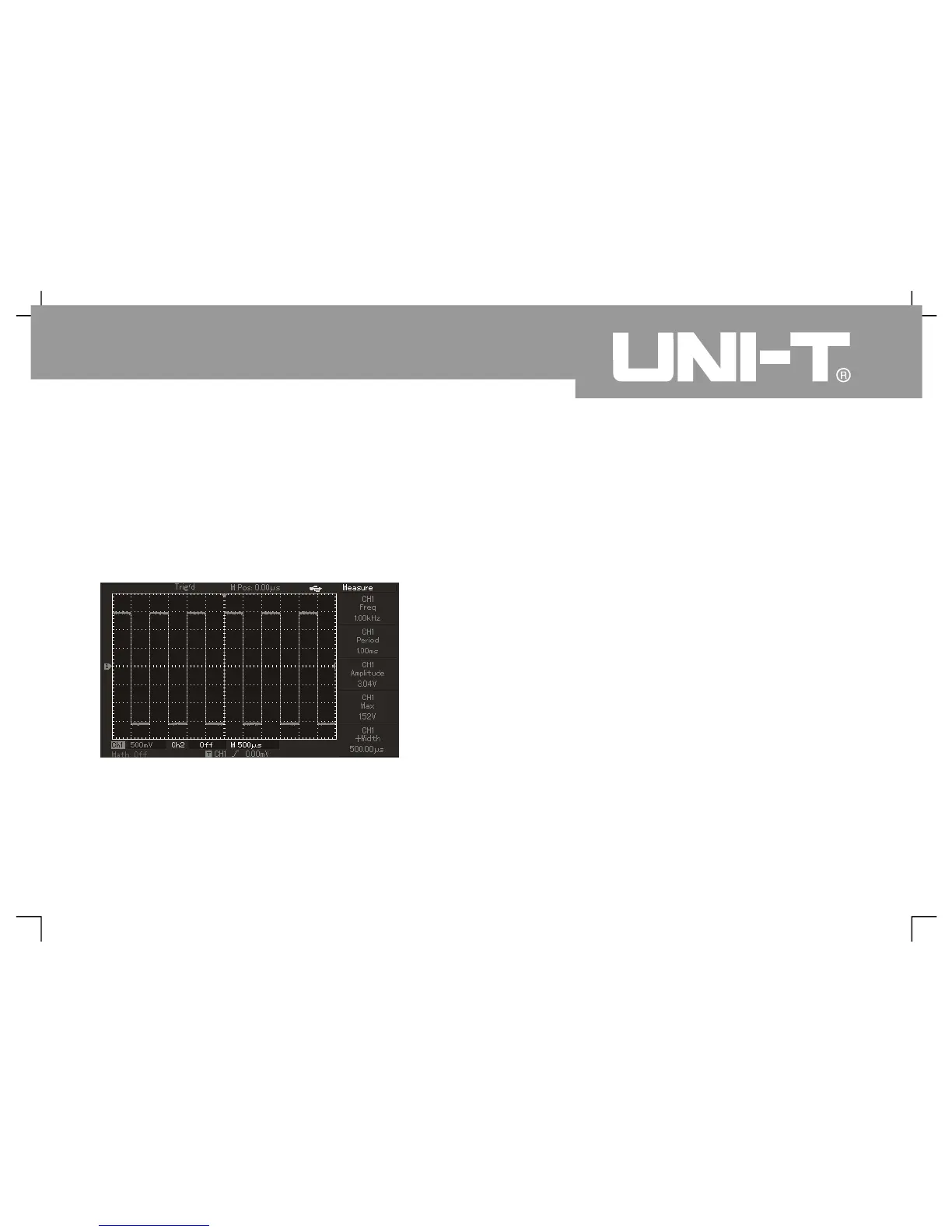

Figure 3-15 Screen cop
y
Regulation to the extreme: It prompts that multi-
purpose knob has been regulated to the greatest
extent under current status and continued adjustment
is not allowed. The prompt will display whe
n
regulating vertical deflection coefficient switch, time
base switch, X displacement, vertical displacement
and trigger level to the terminal
.
Successful connection of U-disk: The prompt will
display on the screen after connecting U-disk to
digital storage oscillograph and correct connection
.
Plug-out of U-disk: The prompt will display on the
screen when plugging out U-disk from digital
storage oscillograph.Saving: The prompt will
display on the sc reen with schedule bar below it
when sav ing waveform
Chapter 4: System Prompt and
Troubleshootin
g
