It has to observe waveform display variation b
altering obtainment mode. Please refer to Figure 2-
19 and 2-20 for sampled waveform display if signal
contains large noise when adopting 32 times of
average mode or without adopting average mode
Operating Manual for UTD2000/3000
4

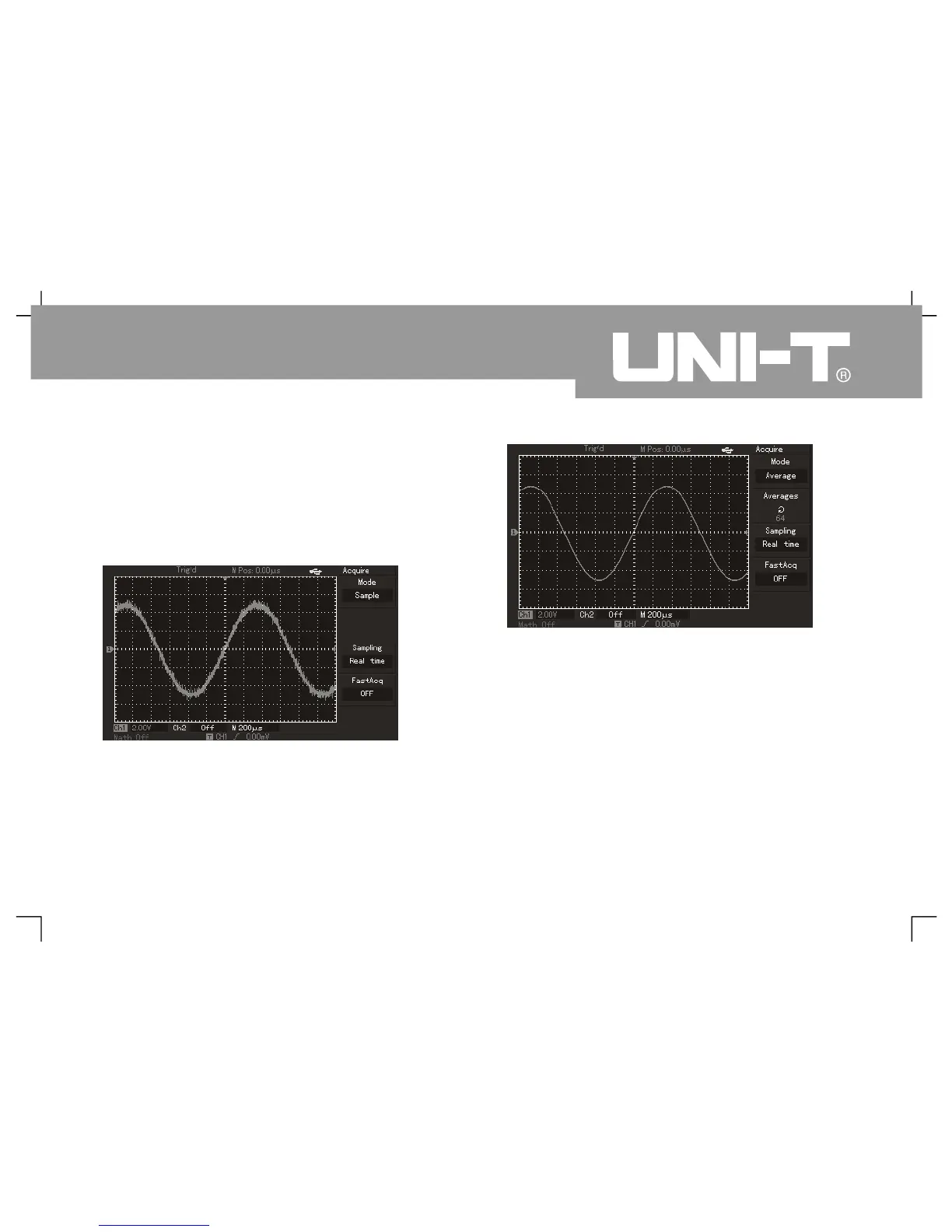

Figure 2-20 W aveform by adopting 32 times of average mode
Figure 2 Waveform without adoptin
Please select real-time sampling mode for observation
2. Please select equivalent sampling mode for observatio
of high-frequency periodic signal
3. Please select peak-value detection mode to avoid mixed
signal envelope. Please select average sampling mode wit
step of multiples of 2 for average value to reduce random
noise of displayed signal. Average times can be selected
