Oper ating Man ual for UTD2000/ 3000
3

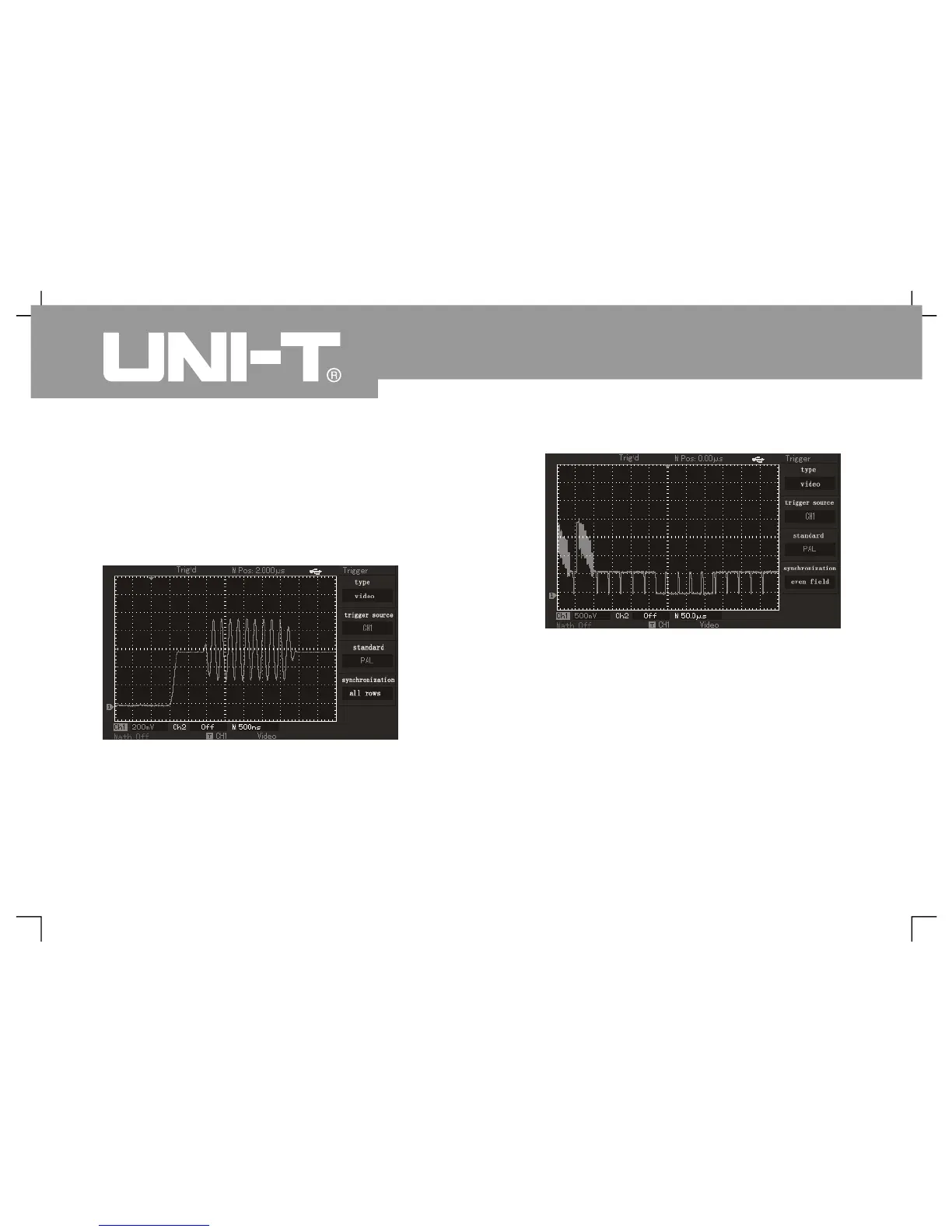

Please refer to Figure 2-14 for screen display whe
selecting standard system of PAL and row
synchronization as synchronization mode. Please
refer to Figure 2-15 for field synchronization of
synchronization mode
Figure 2 14 Video trigger: Row synchronizatio
㧙
Figure 2 15 Video trigger: Field synchronizatio
LT TRIGTrigger signal comes from 2 vertical
chan nel s d urin g A LT T RIG . S uch trig ger mod e c an be
adopted for synchronous observation of 2 signals
without regard to signal frequency. Please refer to
following figure for trigger alternation waveform
display
