Oper ating Man ual fo r UTD 2000/3000
will be displayed on Y axle after selecting X-
Y
display mode
.
Note: Digital s torage oscillograph can capture
waveform by any sampling speed under normal X-
Y
mode. Similarly, it is allowed to adjust samplin
g
rate, vertical gear of channels and time base gear
under X-Y mode. Default sampling rate is 100MS/s
under X-Y mode. In general, sampling rate ca
n
reduce to gain excellent Lissajou’s figure. Followin
g
functions do not effect during X-Y display
.
Automatic testing mode
Cursor measurement mode
Reference or mathematical calculation waveform
View window extension functio
n
Trigger cont
rol
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
30

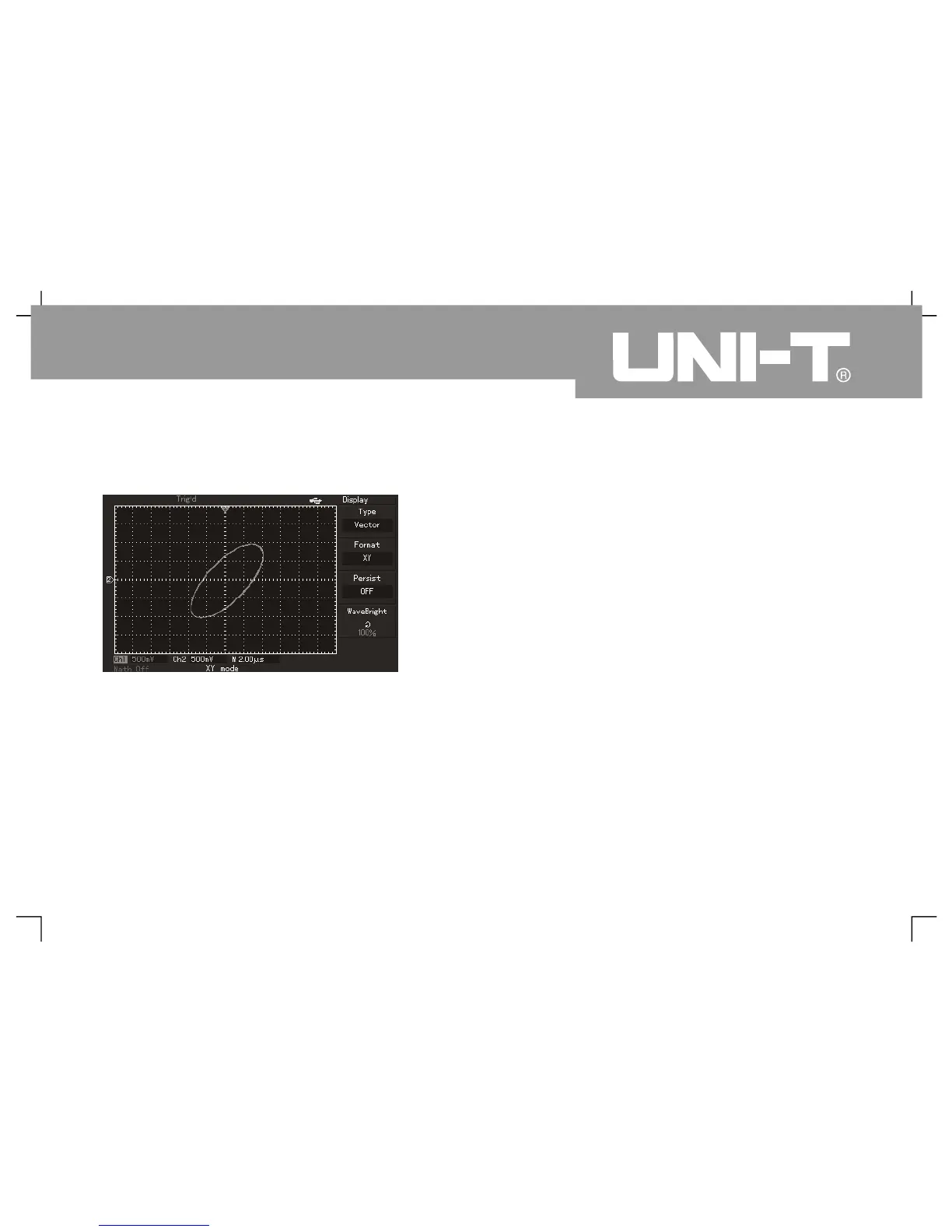

Figure 2 Waveform display under X -Y mode㧙1
