UNI-T UTD3025C

Operating Manual for UTD2000/3000
8
2
5. To press [F4] key as menu operation key to select
synchronization of odd field or even field
.
6. To adjust horizontal time base by rotatin
g
horizontal SCALE knob in horizontal control area so
as to gain clear waveform display
.

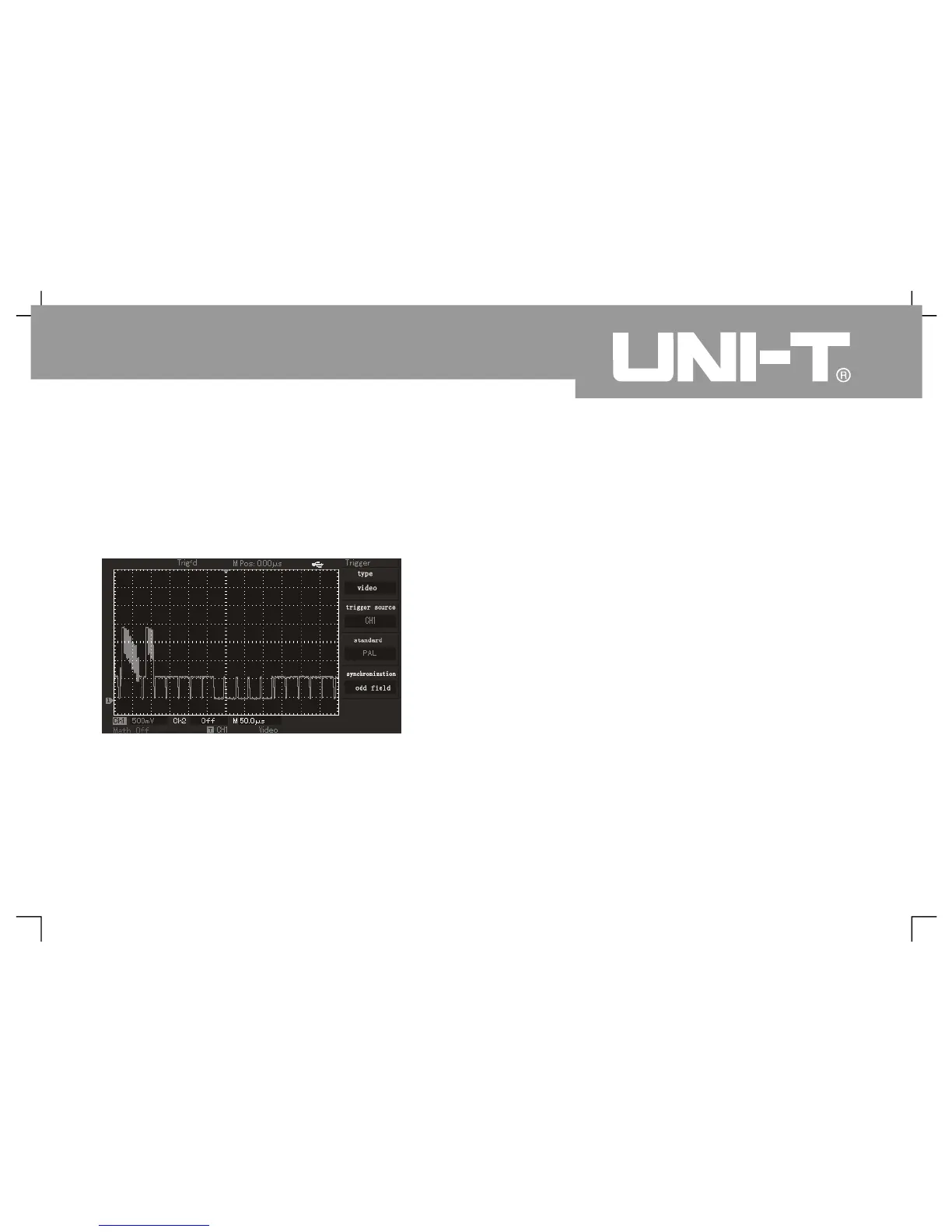

Figure 3-8 Trigger of video field
Please operate according to following steps for
trigger in video row
:
1. To press [MENU] button in trigger control area to
display trigger area
.
2. To press[ F1] key as menu operation key to select
video.
3. To press [F2] key as menu operation key to set
trigger source to Ch1
.
4. To press[F3] key as menu operation key to select
video standar
d
of PAL
.
5. To press[ F4] key as menu operation key to select
synchronization to designated row
.
6. To rotate multi-purpose knob controller for trigger
in any row
.
7. To adjust horizontal time base by rotatin
g
horizontal SCALE knob in horizontal control area so
as to gain clear waveform display
.
Trigger of video row
