s shown in following figure, STORAGE in MENU
control area is function key of storage system
Operation steps
Please press STORAGE Enter into type menus
There are 3 types, namely, waveform, setup and
bitmap
Please refer to Figure 2-16 for selection of type
waveform and entry into following waveform
storage menu. Please call out REF (reference
waveform shown in the second page) from Section
2 of the chapter after saving waveform
Form 2-16 Waveform storage menu (the first page)
Operating Manual for UTD2000/3000
50

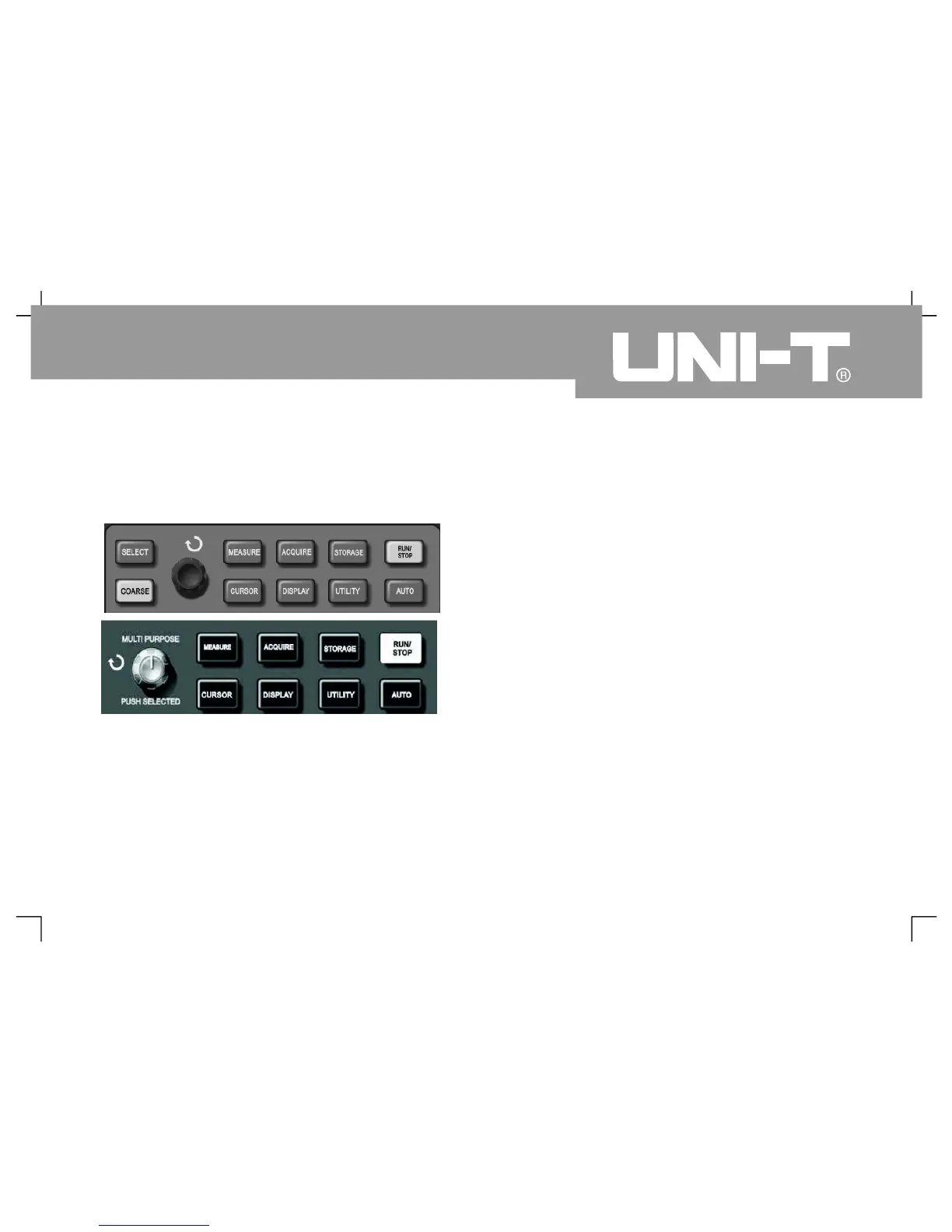

Figure 2 22 Function key (storage) for sampling system
STORAGE key can b e used to display storage setup menu. You
can save oscillograph waveform or setup status to internal
storage area or U disk to call out saved waveform by Ref
(or RefB) or call out setup status by STORAGE key. Waveform
display area of oscillograph can be saved to DSO contents in U
disk in a form of bitmap. Saved bitmap can be read by PC computer
