Unilumin UMini W User Manual

27
The following window is displayed. Set Sending Board Resolution (1920×1080 recommended). Set Graphics
Output Resolution to the same value as Sending Board Resolution. Then click Save to save the settings.

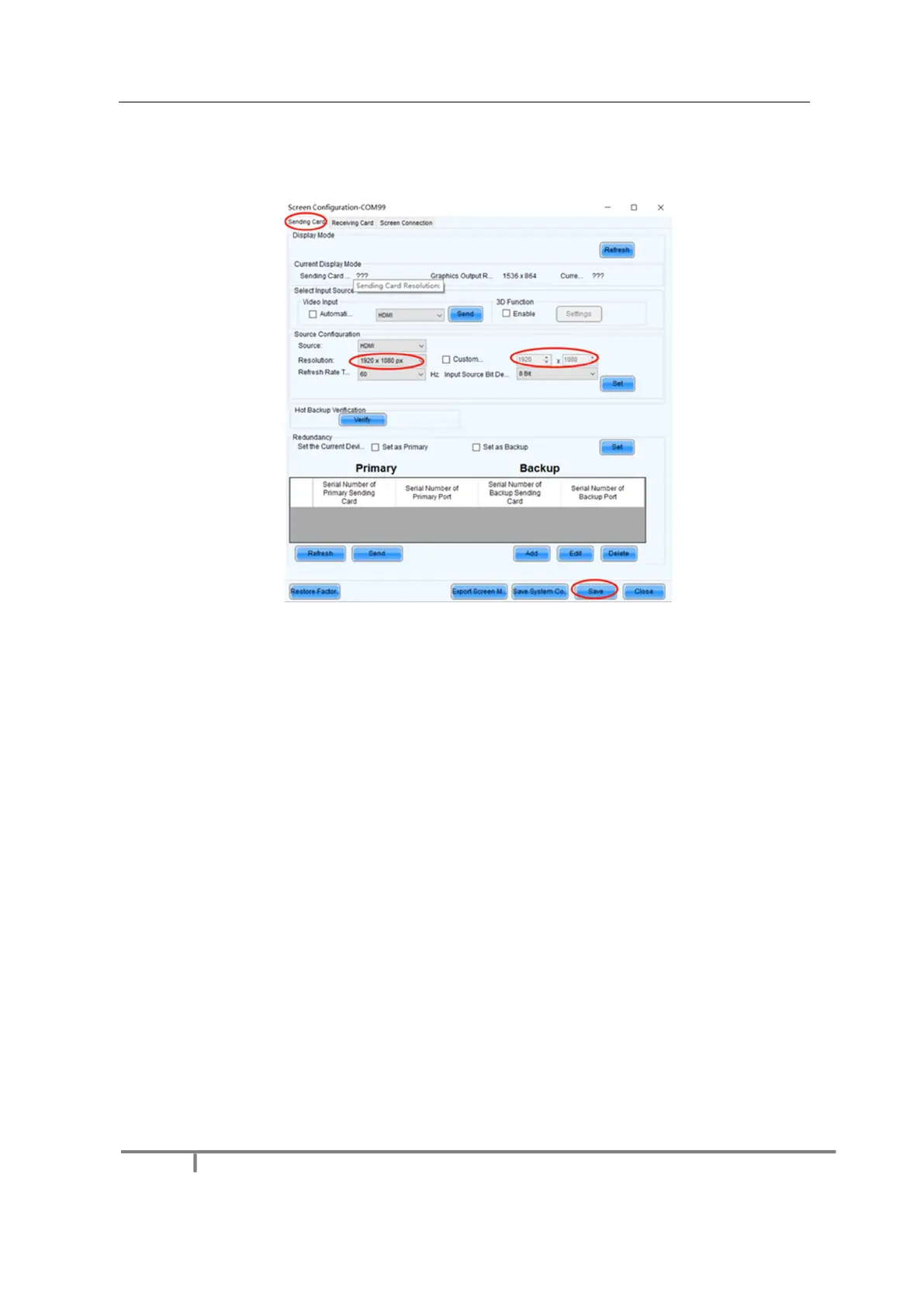

Fig 3-7 Sending Board Configuration
After configuring the parameters on the Sending Board page, click Recaiving Card to display the following
window:
1） Click Load From File to load the file xxxx.rcfg stored in the optical disk.
2） Click Send to Receiving Card.
3） After sending, confirm that the loaded picture received by scan board is normal on the screen. Then click
Save.

Unilumin UMini W Specifications

General

Brand	Unilumin
Model	UMini W
Category	Monitor
Language	English
