4.CALIBRATION
43

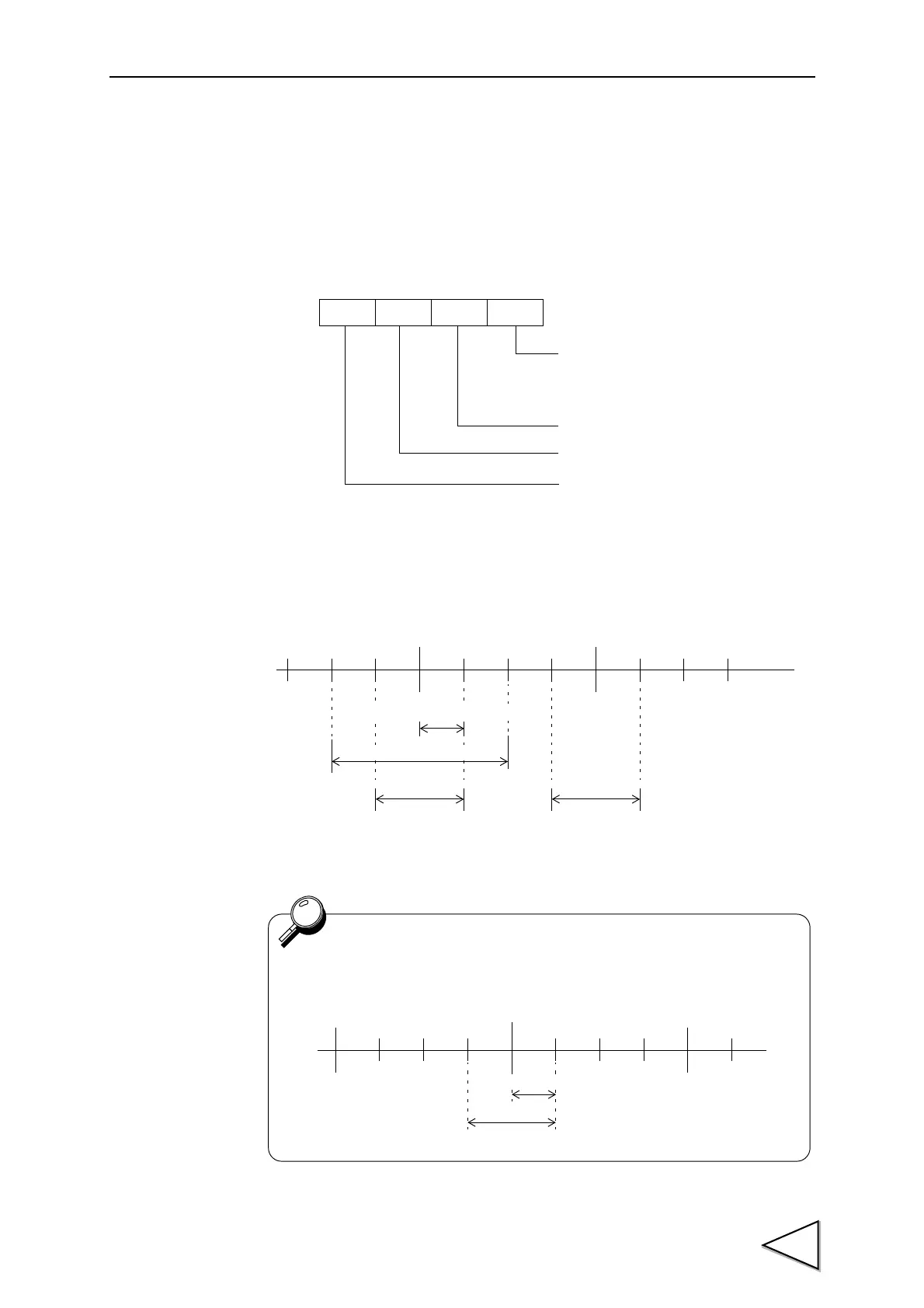

1/4 Scale Division
This function facilitates finding the central portion within the Minimum scale
division. If this function is enabled, the width of Minimum scale division is
further divided into four equal width portions. If reading falls within the central
two portions, CZ bit (11th
bit of n+5 CH) will be set to “1”. This function can be
enabled/disabled by the user.
10
0
10
0
1/4 of scale division
Decimal place
Undefined
Undefined
1：ON
0：OFF
m+38 Function selection
nn+1
CZ bit “1” CZ bit “1”
1/4 of Minimum scale division
Minimum scale division
When 1/4 scale division is disabled, CZ becomes “1” only if
reading coincides with true zero point.
-1 01
CZ bit “1”
1/4 scale division
