6.WEIGHING MODE SETTING AND OPERATION
74
Stop signal
・ When the stop signal turns "ON", three output signals (SP1, SP2, and SP3) are
simultaneously brought to "0".
・ Sequence error occurs if the start signal changes to "ON" while the stop signal
is "ON".
・ To recover the system from sequence error, enter stop signal again.
6-2-3. Mode Selection

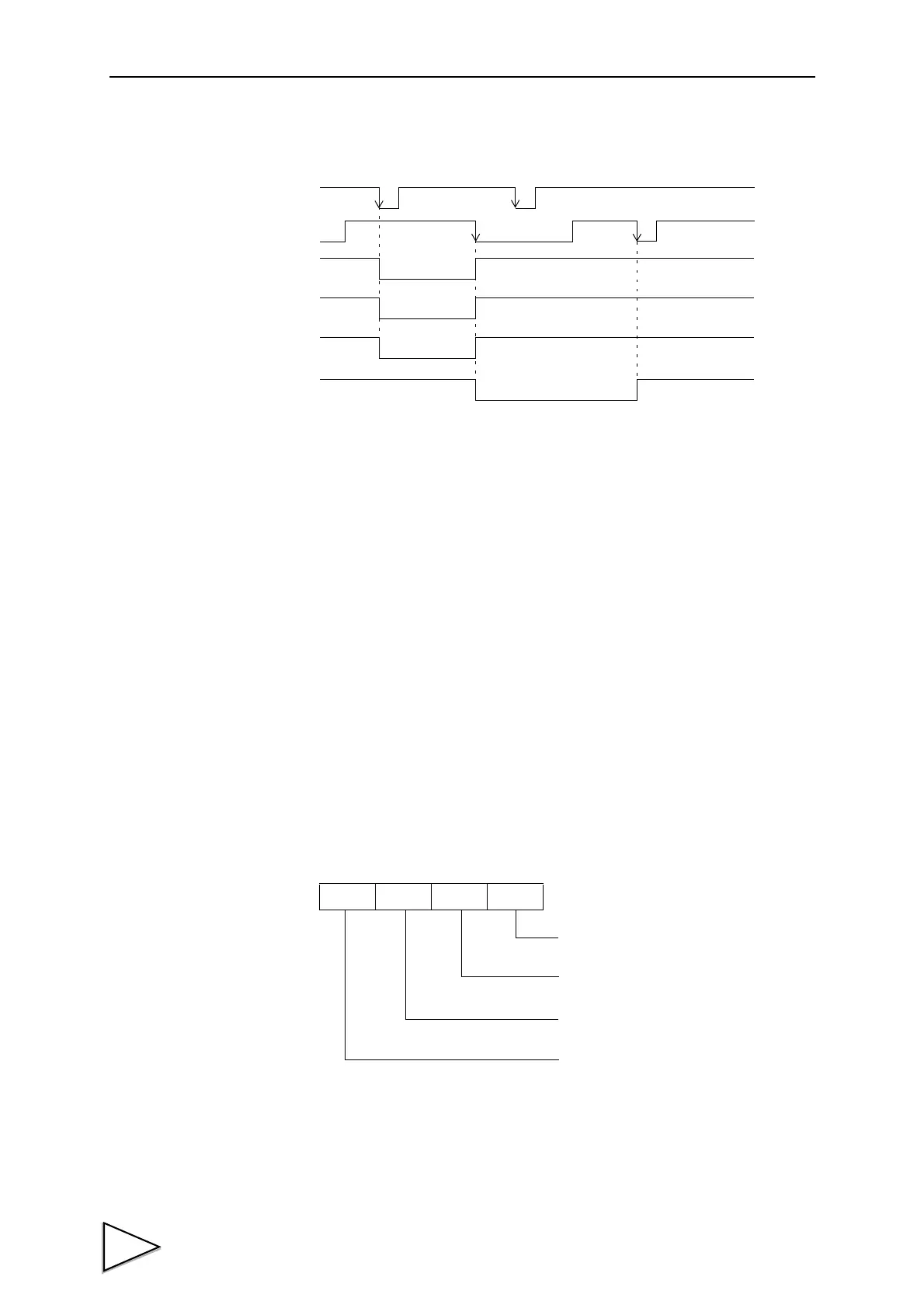

This parameter is used for defining simple comparison and sequence control
mode operation.
Start
Stop
SP1
SP2
SP3
Sequence error
ON
OFF
ON
ON
ON
ON
10
0
10
0
10
0
10
0
At start weight value confirmation
m+32
1: Sequence control mode
0: Simple comparison mode
At start NZ confirmation
Auto jog
Mode selection:
