6.WEIGHING MODE SETTING AND OPERATION
73
③ Sequence with Auto jog
・ Set Auto jog (m+32CH Sequence mode) to "ON"
・ Scheduling of Complete output is determined by the settings for complete
signal output mode (Weighing function 2 for m+28CH).
・ Over/Under comparison is performed when complete output 1 is sent out and
the Weight value at that moment is held. Thus, settings for Over/Under
comparison mode (Weighing function 2 parameters for m+28CH) are ignored.
・ Upper/Lower limit comparison is automatically performed at a regular
interval, ignoring settings for the Upper/Lower limit comparison mode
(Weighing function 2 parameters for m+28CH).

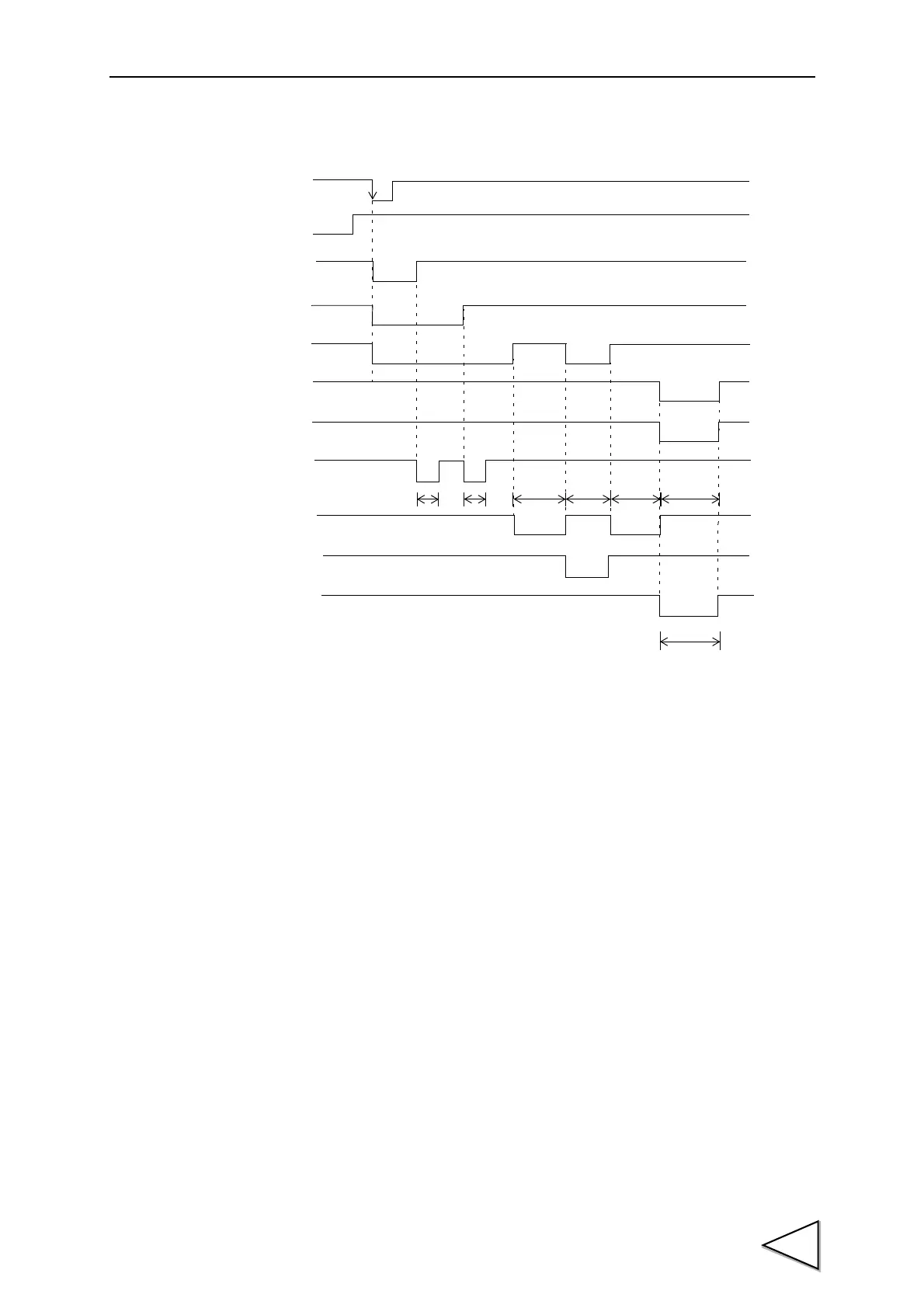

・ t1: Comparison inhibit time m+20CH
t2: Compare time m+21CH
t3: Complete output time m+22CH
t4: Auto jog timer m+23CH
Start
Stop
SP1
SP2
SP3
Complete
Judge（Over/Go）
Compare time
ON
Complete
ON
ON
ON
ON
Hold
Comparison
OFF
t2 t3t4
t1t1
t2
Auto jog timer
inhibit time
output time
