6.WEIGHING MODE SETTING AND OPERATION
72

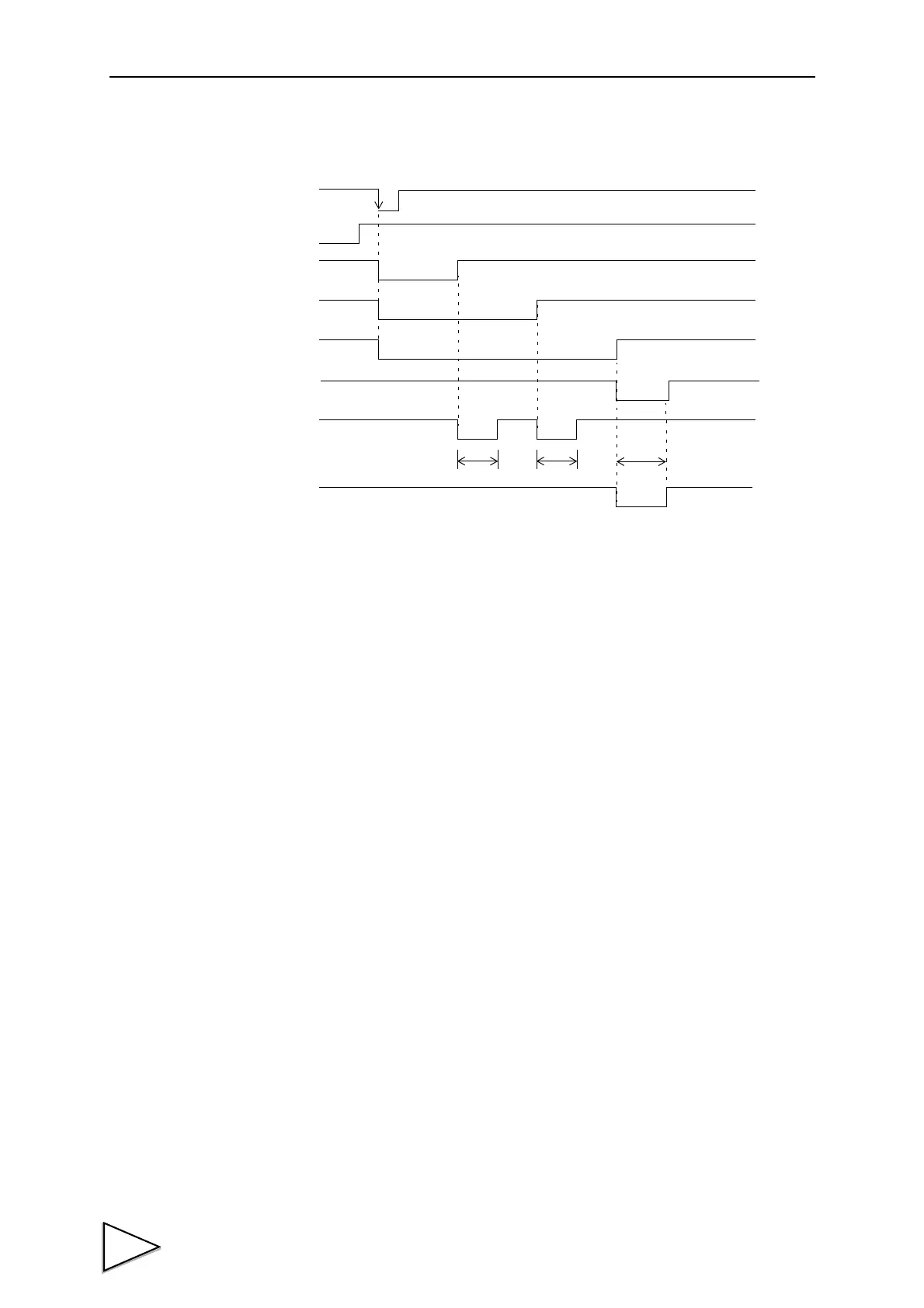

② Normal sequence control (without Over/Under comparison)
・ Over/Under determination is skipped if Judging times (m+24CH) is set to
"00".
・ Complete signal output is triggered by the transition of Final signal (OFF-
edge: 1 → 0). Note that the settings for complete signal output mode do not
have effect here.
・ t1: Comparison inhibit time m+20CH
t3: Complete output time m+22CH
Start
Stop
SP1
SP2
SP3
Complete
ON
OFF
Complete
ON
ON
ON
ON
t3t1t1
Comparison
inhibit time
output time
