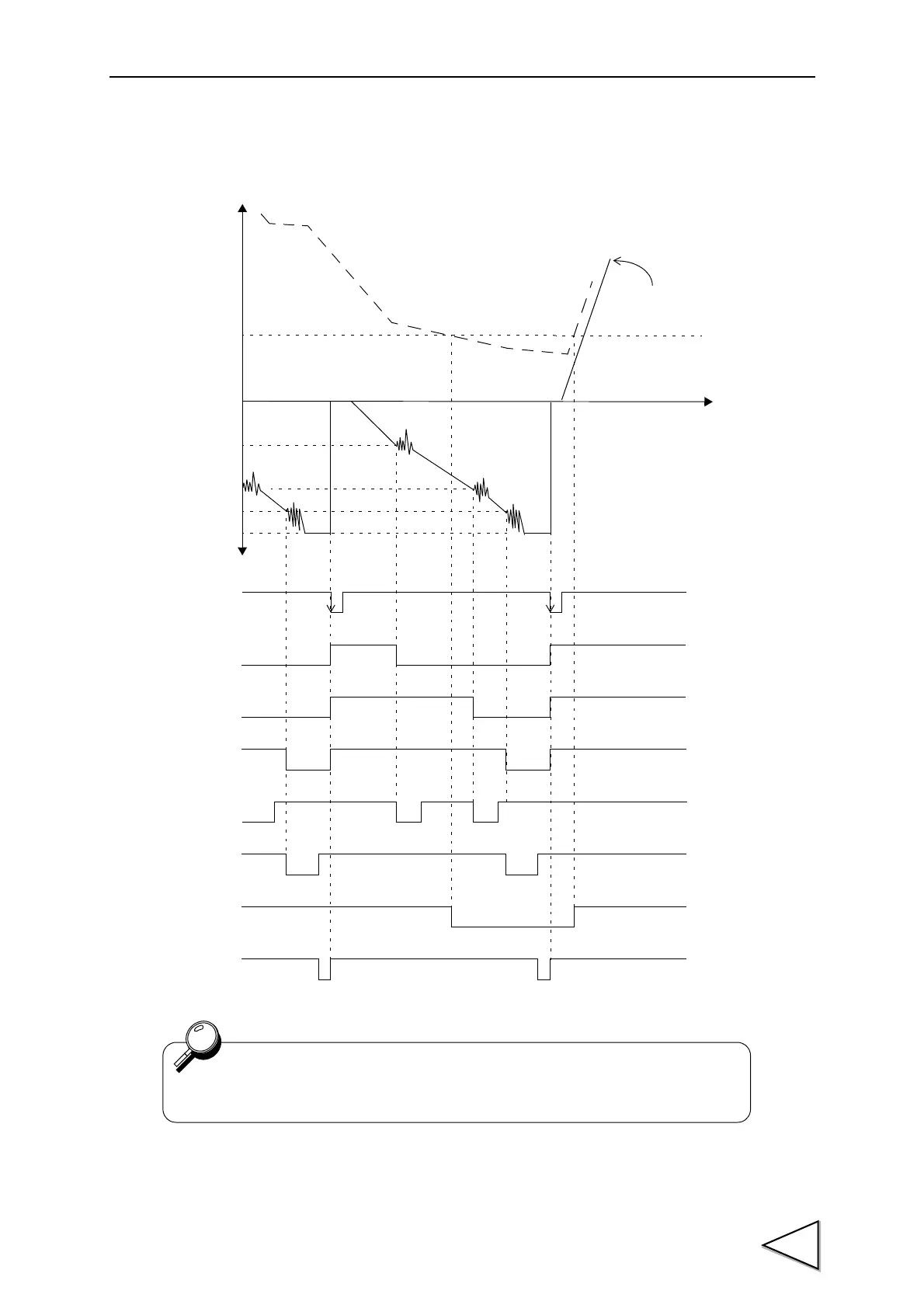

Final –SP1
Final – SP2
Final -FF. CPS
NET
GROSS
Time
Lower limit
Near zero signal is used to detect completion of discharge, as in the case of
Feed weighing.
Tare subtraction
SP1
SP2
SP3
Comparison
Compare time
Lower limit
Judge
inhibit time
(Go/Over/Under)
Gross weight is used for Upper/Lower limit comparison.
Net weight is used for Final, SP2, and Near zero comparison.
(For evaluation of discharged weight, Net weight takes
negative value and compared as such)
Raw material feeding continues
until Upper limit signal
changes its state.
