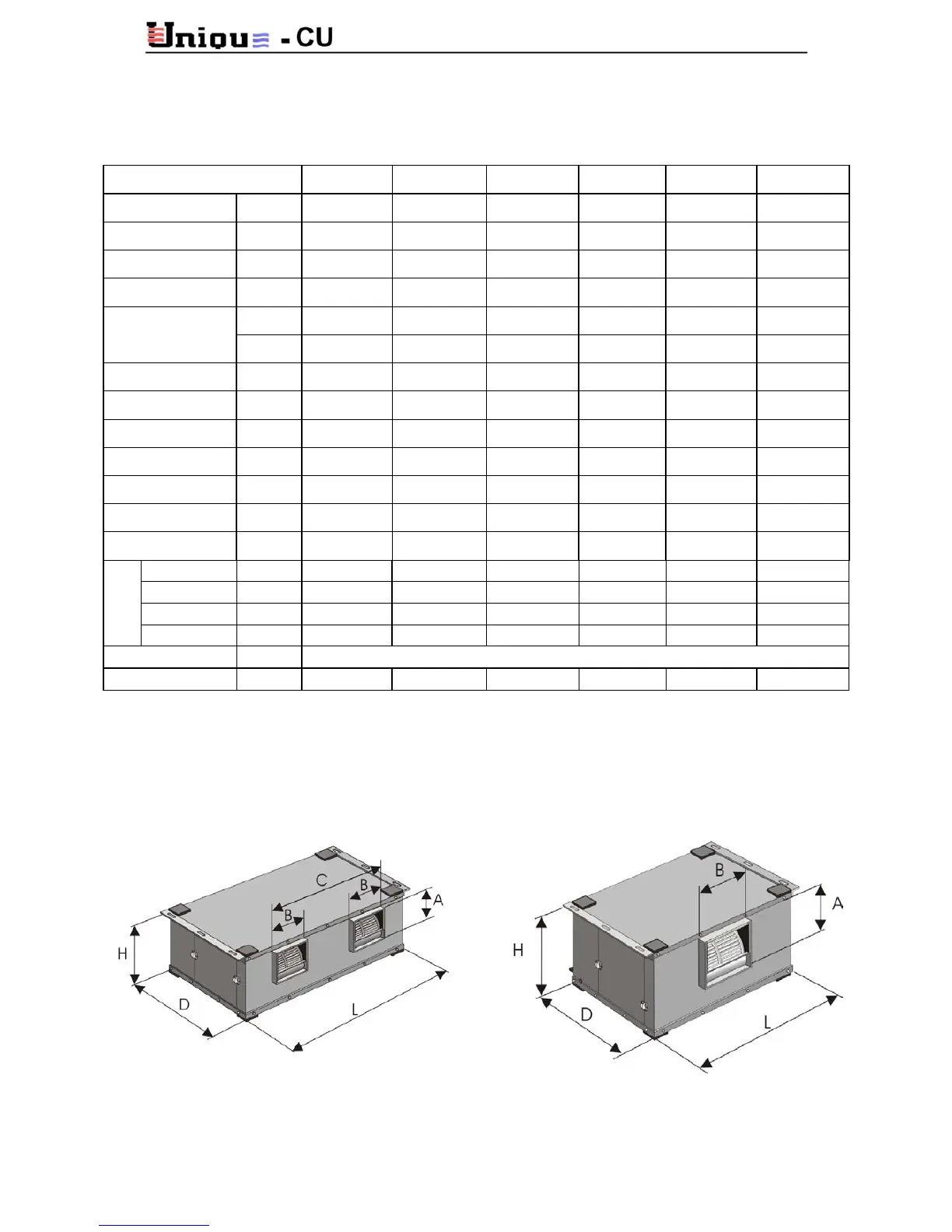

2.1.3 Indoor Unit Data - Models CU150, CU200, CU250
Indoor Unit CU150-A CU150-C CU200-A CU200-C CU250-A CU250-C
Dimensions (LxDxH) mm 760x450x250 760x550x300 970x450x250 680x600x400 970x450x250 680x600x400
Supply Air Duct Dim.
(A, B, C)
mm 102, 212, 604 124, 258 102, 262, 724 265, 305 102, 262, 724 265, 305
Return Air Duct Dim.
(WidexHigh)
mm 590x230 590x230 820x230 440x380 820x230 440x380
High Fan Speed
(Number of Speeds)
R.P.M
1060
(3)
1300
(4)
1200
(3)
900
(3)
1200
(3)
900
(3)
m
3
/h 510 816 918 1190 918 1530
Air Flow
(at High speed)
cfm 300 480 540 700 540 900
Noise Level
(see note 1)
dbA 38 40 38 40 38 40
Net Static Pressure
(see note 2)
mm H
2
O 3 5 3 6 4 6
Indoor Fan Motor KW 0.037 0.093 0.0745 0.25 0.0745 0.25
Number of Fans 2 1 2 1 2 1
Fan type and Model
Centrifugal
180x145
Centrifugal
DD7-7-90W
Centrifugal
220x145
Centrifugal
DD9-9-245W
Centrifugal
220x145
Centrifugal
DD9-9-245W
Full Load Amperage Amp. 0.6 1.3 0.6 1.1 0.6 1.1
Motor Capacitor µF/Volt 3/400 4/400 3/400 8/400 3/400 8/400
Face Area m²/ ft² 0.13/1.4 0.13/1.4 0.19/2.1 0.17/1.8 0.19/2.1 0.17/1.8
Tube Diameter Inch 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
Rows Deep 4 4 4 4 4 4
Coil
Fins Spacing Per Inch 12 12 12 12 12 12
Air Filter 1 Removable and Washable Filter
Net Weight Kg. 26 28 28 32 32 32
Notes:
1. Noise level at fan high speed, measured at a 4 m. distance in free field.
2. Net static pressure available at fan discharge at nominal capacity.
Indoor Unit Type A Indoor Unit Type C
