- 17 -

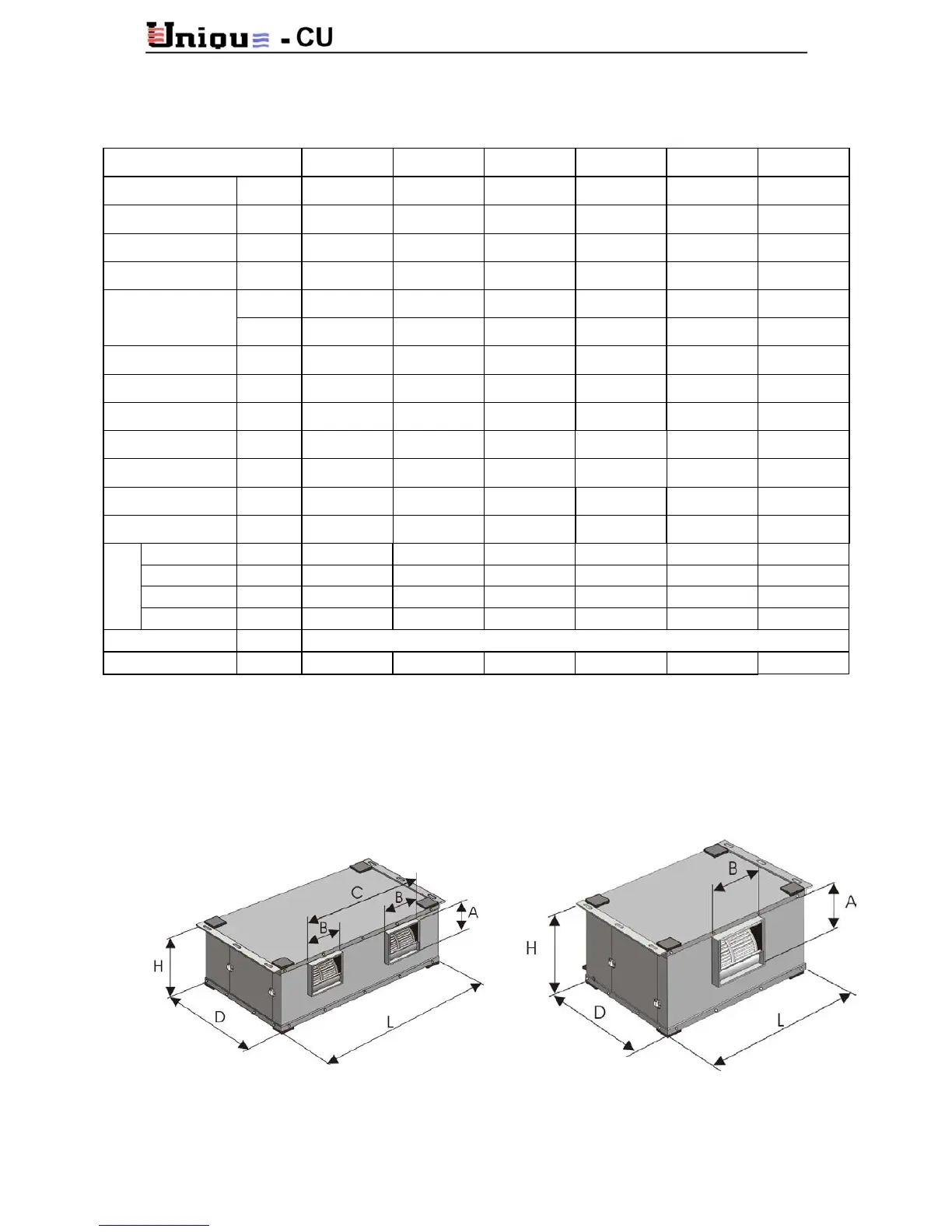

2.4.3 Indoor Unit Data - Models CU600, CU700, CU800
Indoor Unit CU600-A CU600-C CU700-A CU700-C CU800-A CU800-C
Dimensions (LxDxH) mm
1200x700x400 1040x700x480 1300x700x440 1080x800x550 1480x700x440 1240x800x550
Supply Air Duct Dim.
(A, B, C)
mm 265, 305, 900 295, 335 265, 305, 900 345, 400 265, 305, 900 345, 400
Return Air Duct Dim.
(WidexHigh)
mm 980x380 850x457 1100x407 880x510 1280x407 1023x510
High Fan Speed
(Number of Speeds)
R.P.M
900
(3)
900
(3)
900
(3)
900
(3)
900
(3)
900
(3)
m
3
/h 3400 3400 4080 4080 4760 4760
Air Flow
(at High speed)
cfm 2000 2000 2400 2400 2800 2800
Noise Level
(see note 1)
dbA 40 41 41 43 41 43
Net Static Pressure
(see note 2)
mm H
2
O 6 13 6 18 6 8
Indoor Fan Motor KW 2x0.25 0.56 0.37 0.56 0.37 0.56
Number of Fans 2 1 2 1 2 1
Fan type and Model
Centrifugal
DD 9-9-245W
Centrifugal
DD10-10-550W
Centrifugal
DD 9-9-370W
Centrifugal
DD12-12-550W
Centrifugal
DD 9-9-370W
Centrifugal
DD12-12-550W
Full Load Amperage Amp. 2x1.1 3.6 2x2.6 4.6 2x2.6 4.6
Motor Capacitor µF/Volt 2x8/400 10/400 2x8/400 15/400 2x8/400 15/400
Face Area m²/ ft² 0.37/4 0.39/4.21 0.45/4.86 0.45/4.86 0.52/5.62 0.52/5.62
Tube Diameter Inch 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
Rows Deep 4 4 4 4 4 4
Coil
Fins Spacing Per Inch 12 12 12 12 12 12
Air Filter 1 Removable and Washable Filter
Net Weight Kg. 79 76 82 87 88 93
Notes:
1. Noise level at fan high speed, measured at a 4 m. distance in free field.
2. Net static pressure available at fan discharge at nominal capacity.
Indoor Unit Type A Indoor Unit Type C
