5.5.1.3.3 Handle method
This option is used to select the notification type to be used in the event of an alarm. Possible options are:
on screen warning
audible warning
upload to center
trighgger alarm out
send email
On screen warning
The video channel concerned by an alarm appears full screen. The external alarm status will be indicated by a red icon
on the camera status bar if the “On screen warning” option is checked.
Audible warning
An acoustic notification will be generated, also if the buzzer is inhibited.
Upload to center
The alarm notification is sent to a server (PC) whose IP address is set in “NETWORK” → “IP Event Server” menu.
Trigger alarm out
Notification is sent to one or more outputs, according to the selection, such as for example sirens, flashers, etc.
To set, select the respective check box using “◄►” and press “ENTER” or “EDIT”.
Symbol “” indicates that the selected option is enabled; symbol “×” indicates that it is not.
Send email
The alarm is notified by sending a message to the email address programmed in “NETWORK” → “Email” → “Setup“.
5.5.1.3.4 PTZ linkage
Position the “Active Frame” on the “PTZ linkage” icon and press “ENTER”.
The following window will appear.

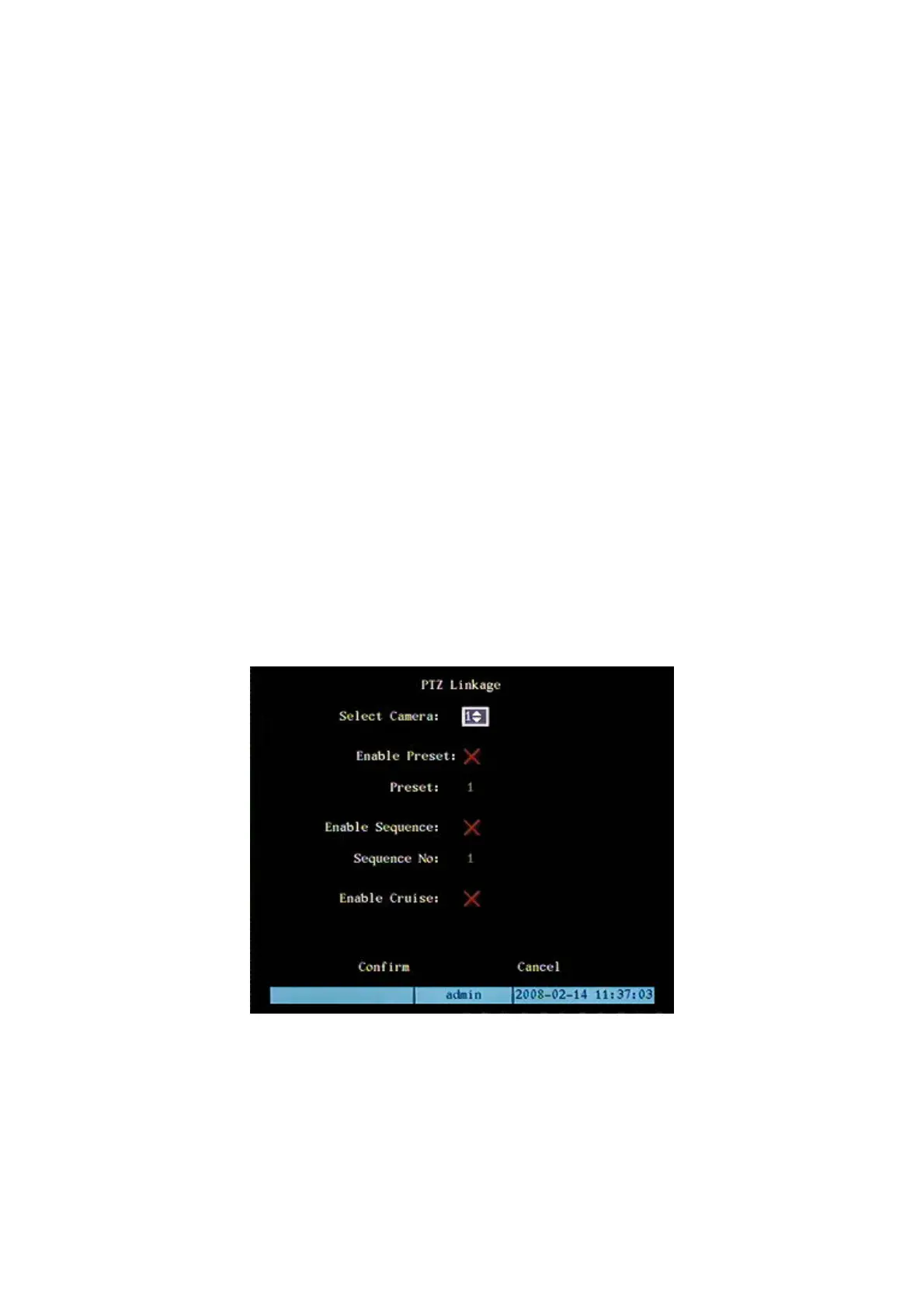

Figure 35: PTZ linkage submenu
The selected item is highlighted.
Press arrows “◄►” to point the cursor to the various menu items.
Select “CONFIRM” and press “ENTER” to make the changes effective.
Select “CANCEL” and press “ENTER” to cancel the changes.
Press “ESC” to go back by one step.
Press “ESC” several times until the configuration window closes to quit the configuration menu.
DS1093-005C 53
