5.6 PTZ MENU
Description
Use this menu for setting the communication parameters with the devices connected to the RS- -485 port, such as for
example PTZ cameras (Easy-Dome // Ref.1092/650).
eIMPORTANT NOTE
It is advisable to connect one only DVR to each RS-485 PTZ control line to exploit the functions of the Urmet
Domus DVR DVS digital video recorders to the maximum.
Position the “Active Frame” on the “PTZ” icon and press “ENTER”.
The following window will appear.

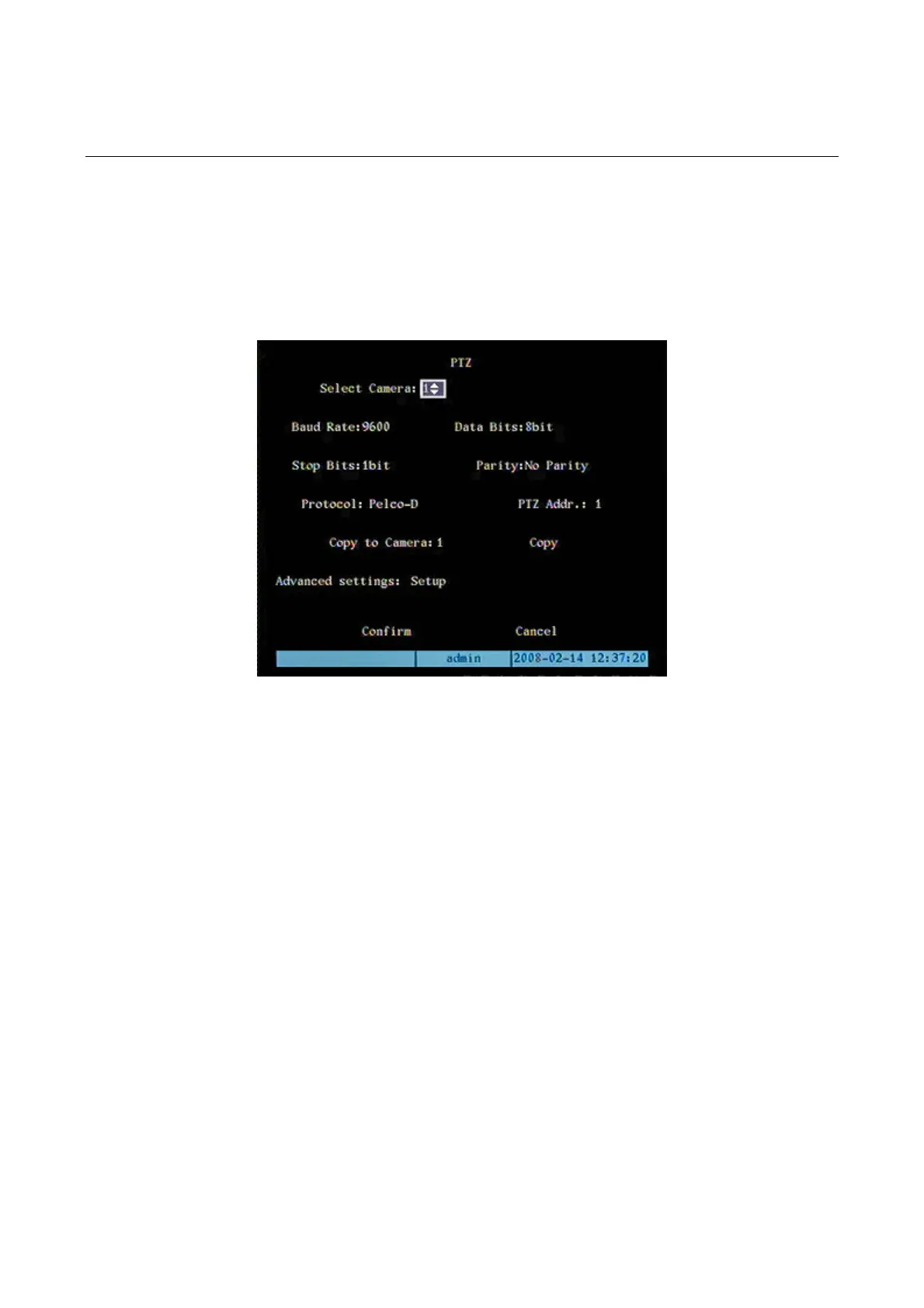

Figure 38: PTZ menu (basic settings)
This page contains the basic menu settings.
Select “SETUP” and press “ENTER” to access advanced settings.
The selected item is highlighted.
Press arrows “◄►” to point the cursor to the various menu items.
Select “CONFIRM” and press “ENTER” to make the changes effective.
Select “CANCEL” and press “ENTER” to cancel the changes.
Press “ESC” to go back by one step.
Press “ESC” several times until the configuration window closes to quit the configuration menu.
eIMPORTANT NOTE
The baud rate, data bits, stop bits, parity, protocol flow and IP address parameters must be coherent with those of the
camera.
Refer to the appendix of this manual for Urmet Ref.1092/650.
DS1093-005C 58
