5.6.2 PTZ MENU ADVANCED SETTINGS
Position the “Active Frame” on the “SETUP” icon and press “ENTER”.
The following window will appear.

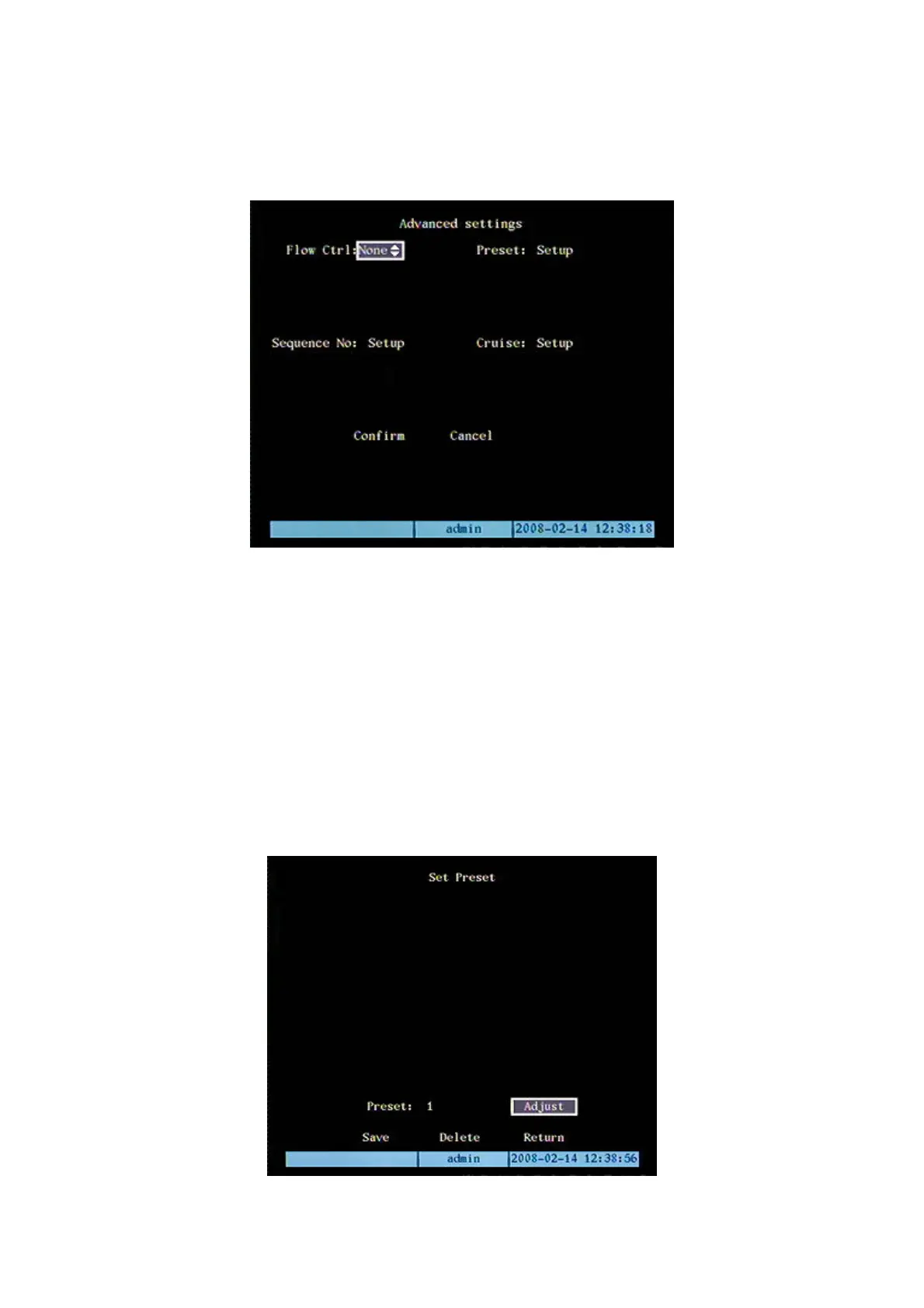

Figure 39: configuration menu channel recording (advanced settings)
This page contains the advanced menu settings.
Select “SETUP” and press “ENTER” to access advanced settings.
The selected item is highlighted.
Press arrows “◄►” to point the cursor to the various menu items.
Select “CONFIRM” and press “ENTER” to make the changes effective.
Select “CANCEL” and press “ENTER” to cancel the changes.
Press “ESC” to go back by one step.
Press “ESC” several times until the configuration window closes to quit the configuration menu.
5.6.2.1 Flow ctrl
This option can be used to set the data flow check transiting on the RS-485 port.
Possible options are: “None”, “Software” and “Hardware”.
Use “▲▼” to select.
5.6.2.2 Preset
Position the “Active Frame” on the “Setup” icon and press “ENTER”.
The following window will appear.
Figure 40: preset programming interface
DS1093-005C 60
