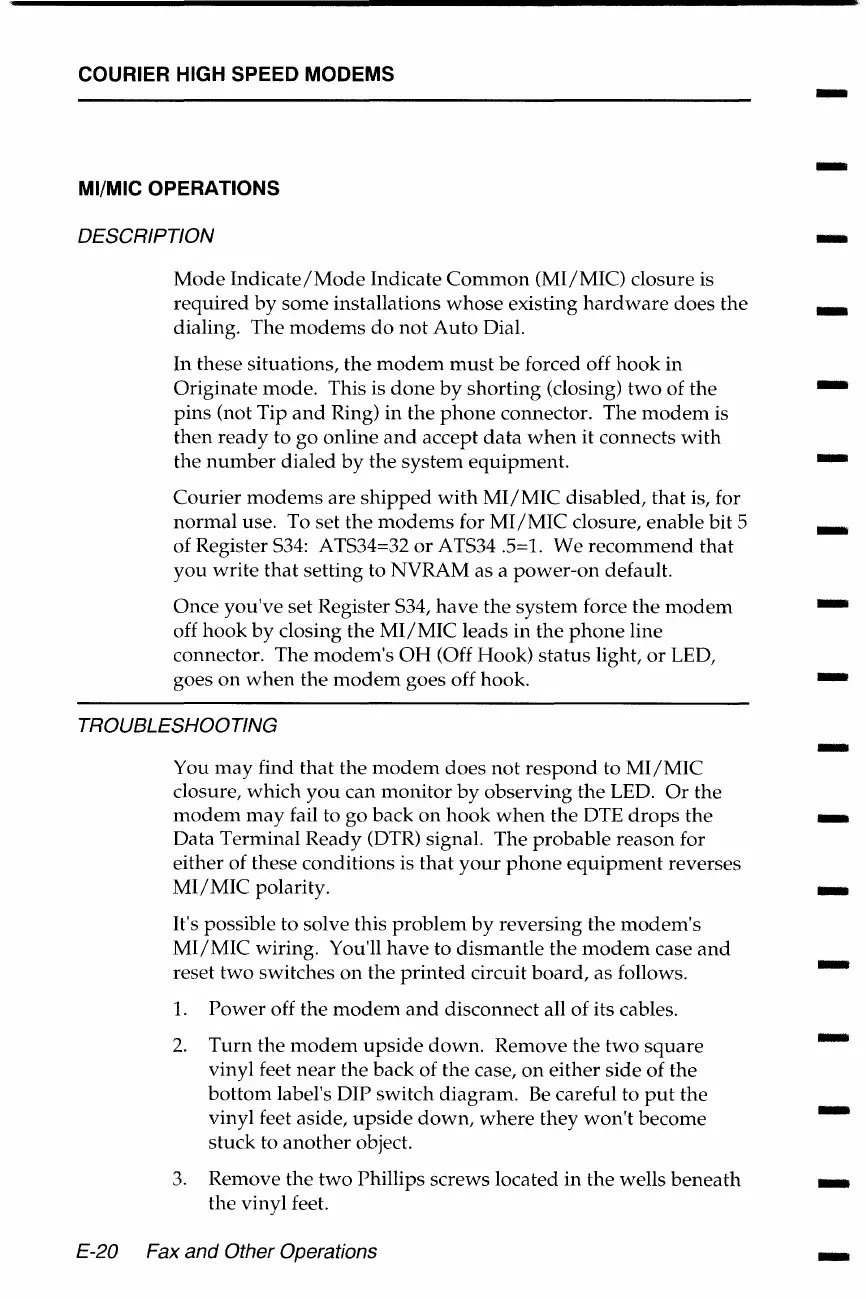

COURIER HIGH SPEED MODEMS
Ml/MIC OPERATIONS
DESCRIPTION
Mode
Indicate/Mode
Indicate
Common
(Ml/MIC)
closure is
required
by
some
installations
whose
existing
hardware
does
the
dialing. The
modems
do
not
Auto
Dial.
In these situations,
the
modem
must
be
forced off
hook
in
Originate mode. This is
done
by
shorting
(closing)
two
of
the
pins
(not Tip
and
Ring) in the
phone
connector. The
modem
is
then
ready
to go online
and
accept
data
when
it connects
with
the
number
dialed
by
the
system
equipment.
Courier
modems
are
shipped
with
Ml/MIC
disabled,
that
is, for
normal
use. To set
the
modems
for
Ml/MIC
closure, enable bit 5
of Register 534: AT534=32
or
AT534 .5=1.
We
recommend
that
you
write
that
setting to NVRAM as a
power-on
default.
Once
you've
set Register 534,
have
the
system
force
the
modem
off
hook
by
closing
the
Ml/MIC
leads in
the
phone
line
connector.
The
modem's
OH
(Off Hook)
status
light,
or
LED,
goes
on
when
the
modem
goes off hook.
TROUBLESHOOTING
You
may
find
that
the
modem
does
not
respond
to
Ml/MIC
closure,
which
you
can
monitor
by
observing
the
LED.
Or
the
modem
may
fail to
go
back
on
hook
when
the
DTE
drops
the
Data Terminal
Ready
(DTR) signal.
The
probable
reason
for
either of these conditions is
that
your
phone
equipment
reverses
Ml/MIC
polarity.
It's possible
to
solve this
problem
by
reversing
the
modem's
Ml/MIC
wiring. You'll
have
to
dismantle
the
modem
case
and
reset
two
switches
on
the
printed
circuit
board,
as follows.
1.
Power
off
the
modem
and
disconnect all of its cables.
2.
Turn
the
modem
upside
down.
Remove
the
two
square
vinyl feet
near
the
back
of the case,
on
either
side
of
the
bottom
label's DIP switch
diagram.
Be
careful to
put
the
vinyl feet aside,
upside
down,
where
they
won't
become
stuck
to
another
object.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
3.
Remove
the
two
Phillips screws located
in
the
wells
beneath
-
the vinyl feet.
