COURIER HIGH SPEED MODEMS
S-Register Functions (S$)
At ATS$, the Courier displays a screen that shows a partial
summary of the S-Register functions. A second screen, activated
by pressing any key, shows the remaining registers. The first
screen is as follows.
HELP, S Register Functions <CTRL-S to Stop, CTRL-C to CanceD
S0 Ring to Ansuer On S19 Inactivit'J TiMeout (Hin)
St Counts 11 of Rings S20 Reserved
SZ Escape Code Char> SZ1 Break Length ( V100sec)
S3 Carri age Return Char SZZ Xon Char'
S4 Line Feed Char SZ3 Xoff Char
SS Backspace Char SZ4 DSR Pulse TiMe (1/50sec)
S6 Uiiit TiMEY'Dial Tone <sec) SZS Reserved
S7 U<1it TiHel'Carrier <sec) SZ6 RTSl'CTS Delay TiMe <VHl0sec)
SS CoMMa Thie (sec) SZ7 Bil Mapped
S9 Cilrrier Detect TiHe (11'10sec) 1 = U21 Mode
S10 Carrier Loss TiMe (1/10sec) 2 = Disable TCl1
S11 Dial Tone Spacing (Msec) 'I = Disable U3Z
S1Z Escape Code Tl He ( V50sec) 8 = Dls;ible Z100h:z
S13 Bit 11apped 1& = Disilble MNP Handshake
1 = Reset On DTR Loss 32 = Disilble U. '12 Detect Phase
2 = Do Originate in Auto Ans:we.- f,'I = Rese.-ued
'I = tlo Pause Before Result Codes 128 = Unusual SU-Inco11patibil ity
8 = Do DS0 On DTR SZ8 U32 Handshake Ti11" < V10sec)
Strike a ke':J when read'j

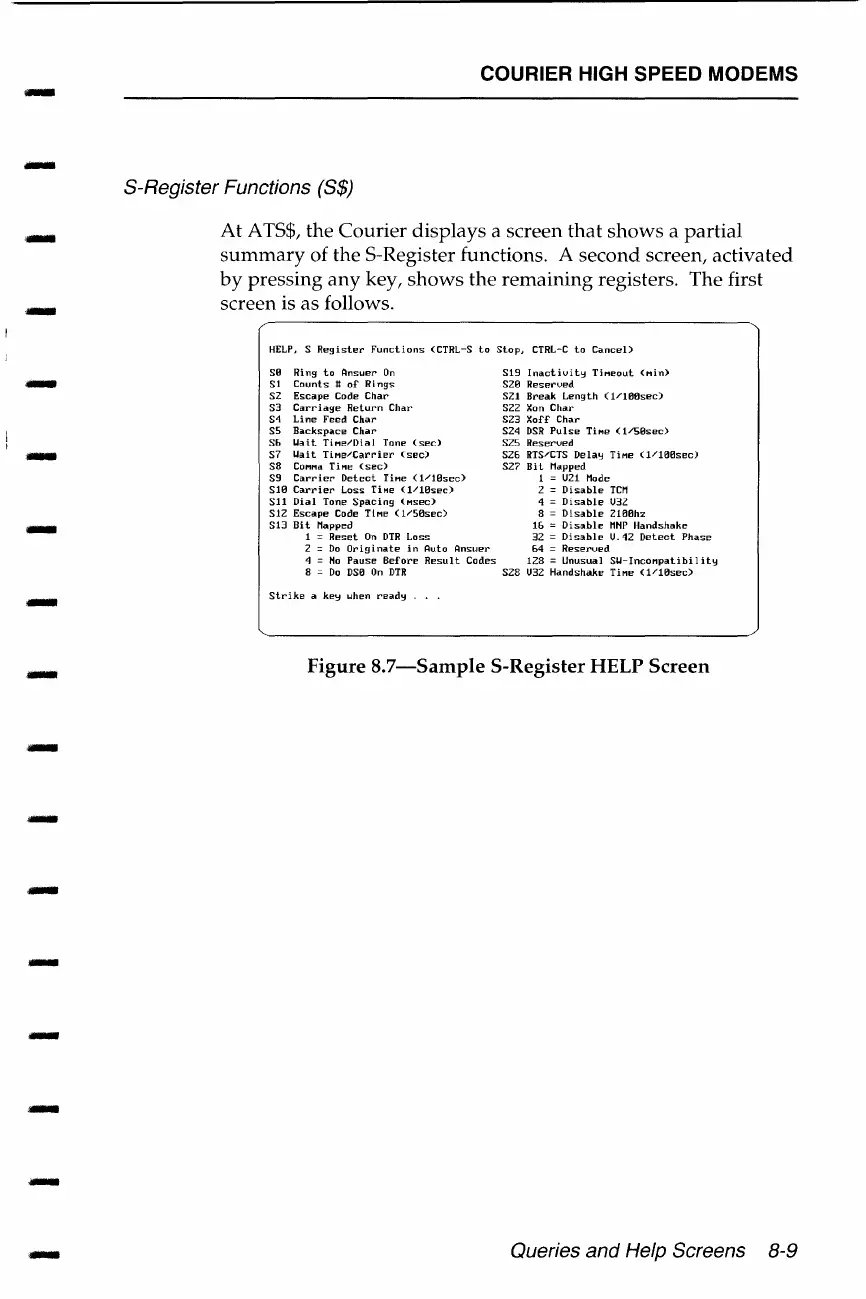

Figure 8.7-Sample S-Register HELP Screen
Queries and Help Screens 8-9
