29

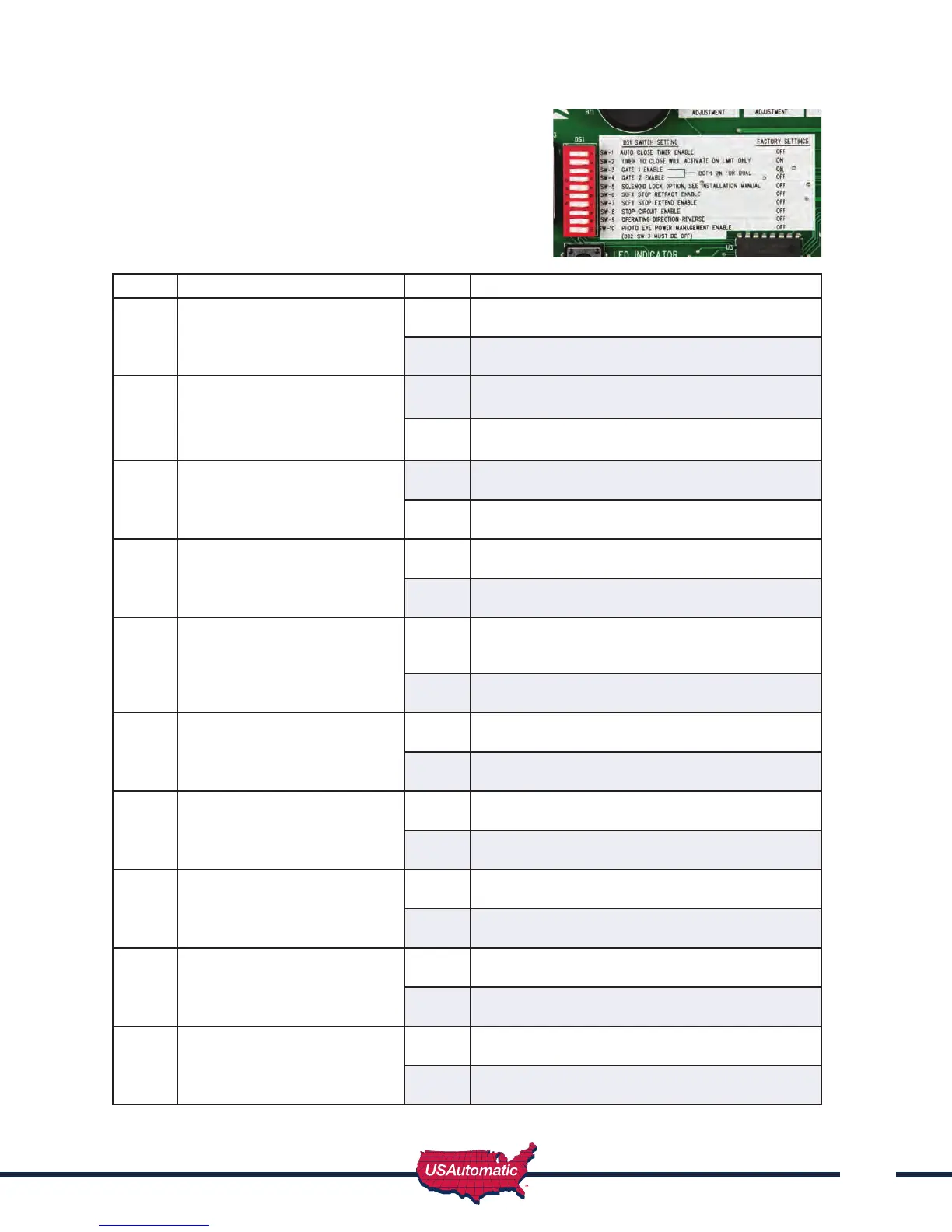

DS1 Function Dip Switches
ON - Down on right
OFF - Down on left
Switch Setting Factory Settings are shown in bold type
1
Automatic Close Timer Enable
(Not recommended unless safety
devices are installed)
ON Timer to close is activated
OFF Timer to close is disabled
2
Timer to Close Function ON Timer to close activates only if open limit is
activated
OFF Timer to close works from any point the gate is
stopped
3
Gate 1 Enable ON Gate 1 operator enabled to function
OFF Gate 1 operator disabled
4
Gate 2 Enable
(both gates on for dual)
ON Gate 2 operator enabled to function
OFF Gate 2 operator disabled
5
Solenoid Lock Option
(see accessory wiring page 43)
ON DS2 SW 1 must be on, output +12vdc with delay
when gate is operating
OFF No function. See DS 2 SW 1 Pg 30
6
Soft Stop Retract Enable ON Enables soft stop for retract position
OFF Disables soft stop for retract position
7
Soft Stop Extend Enable ON Enables soft stop for extend position
OFF Disables soft stop for extend position
8
Stop Circuit Enable
(A normally closed pushbutton
is required)
ON Allows for a stop button input to be utilized
OFF Disables the stop button function
9
Operating Direction Reverse
(Must be on for push to open
installations to operate correctly)
ON Push to Open
OFF Pull to Open
10
Photo Eye Power Management
Enable
ON Enables PEPM - see page 44-45
OFF Disables PEPM
To Next Page
