GV-Mount 211 Packing List
For details, see Appendix B. Optional Installation for ABD1300.

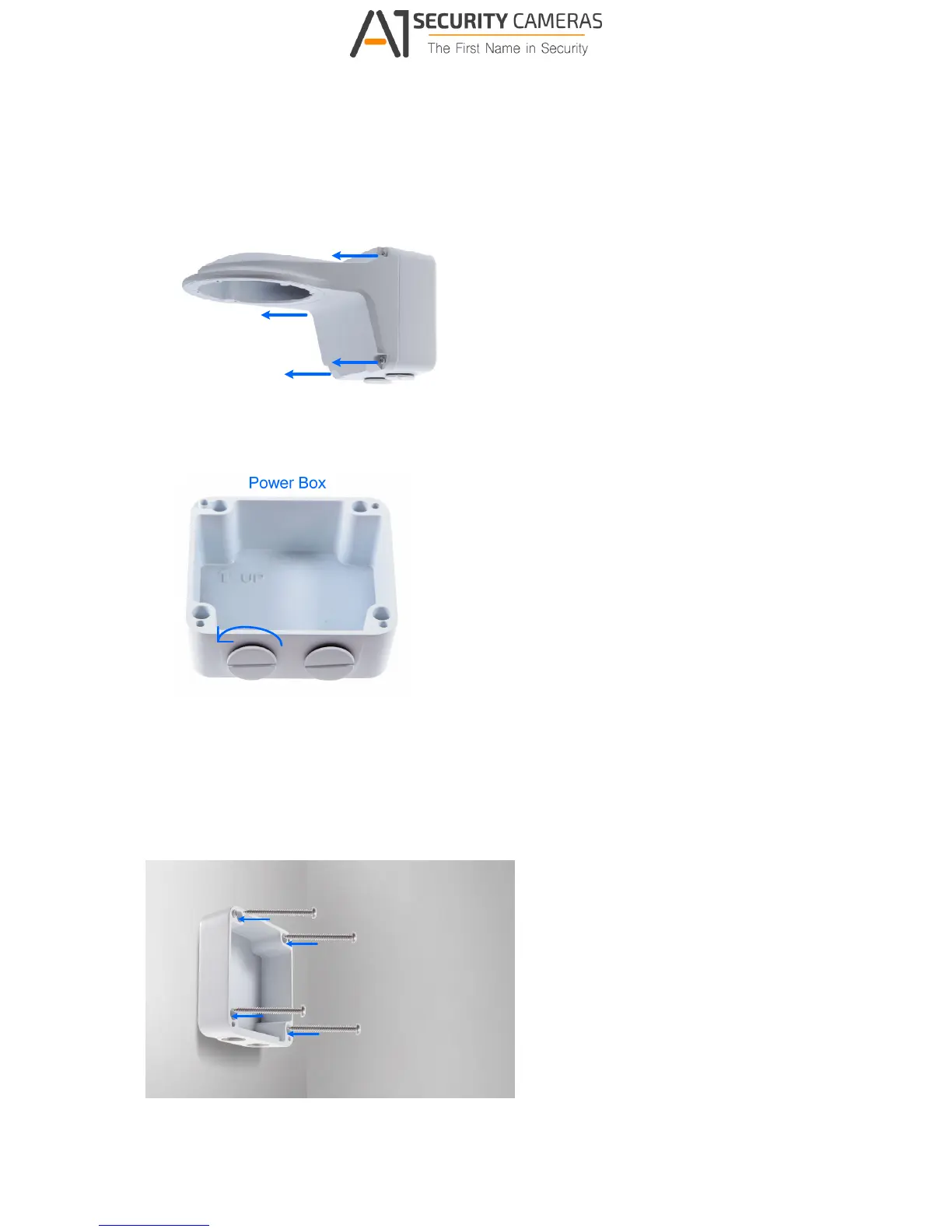

1. Unscrew the bracket.
Figure C-2
2. Loosen the indicated area by turning it anticlockwise.
Figure C-3
3. Stick the drill template paster to the wall with the arrow pointing up.
4. Drill 4 holes according to the sticker and insert the 4 screw anchors to the 4 holes.
5. Secure the power box to the wall with four long screws.
Figure C-4
