1 - ASSEMBLY

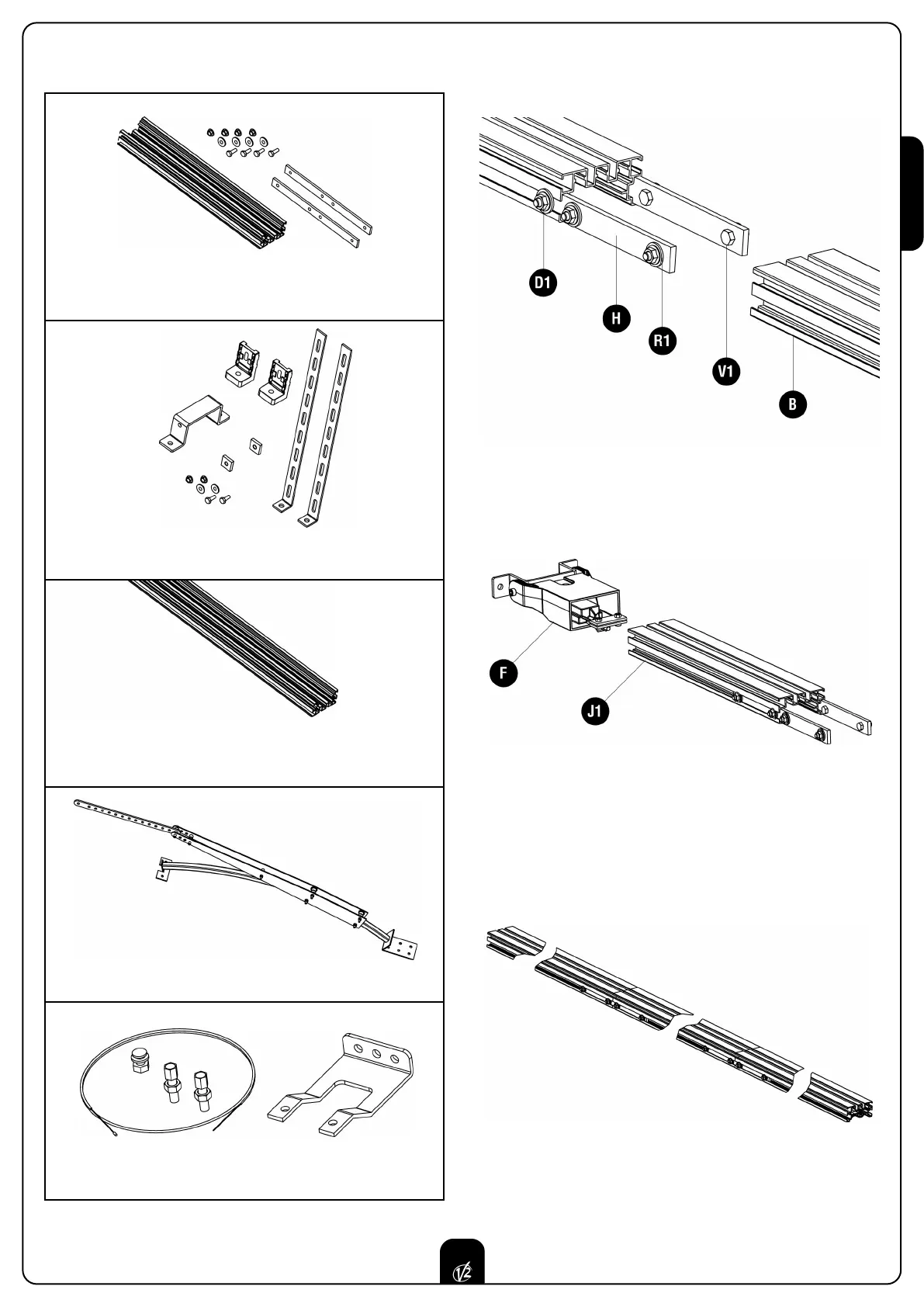

1.1 Assemble the section bar guide B by means of the
junction bars H, bolts V1, nuts D1 and washers R1.
1.3 Let the sections match perfectly and fix the bolts.
WARNING: check the firmness of the section connections
to avoid unthreading.
1.2 If the installation requires the J1 extension, add the
400 mm section to the head of the previously mounted
sections, in order to insert the part F at the end of J1.
ACCESSORIES
J5 - Kit to release from outside, equipped with a metallic string.
J2 - Additional fastening support equipped with pierced bar
forheight adjustment.
J1 - Mounting extension for 40 cm run increase. Provided with
fixing elements for sectional doors and counterweight balanced
doors up to 3 m of height.
J3 - Chain guide (Lenght= 3m) for counterweight balanced
doors up to 2,8 m of height. (spring balanced doors up to 2,6
m and sectional doors up to 2,6 m)
J4 - Adapter arm for balance weight garage doors.
