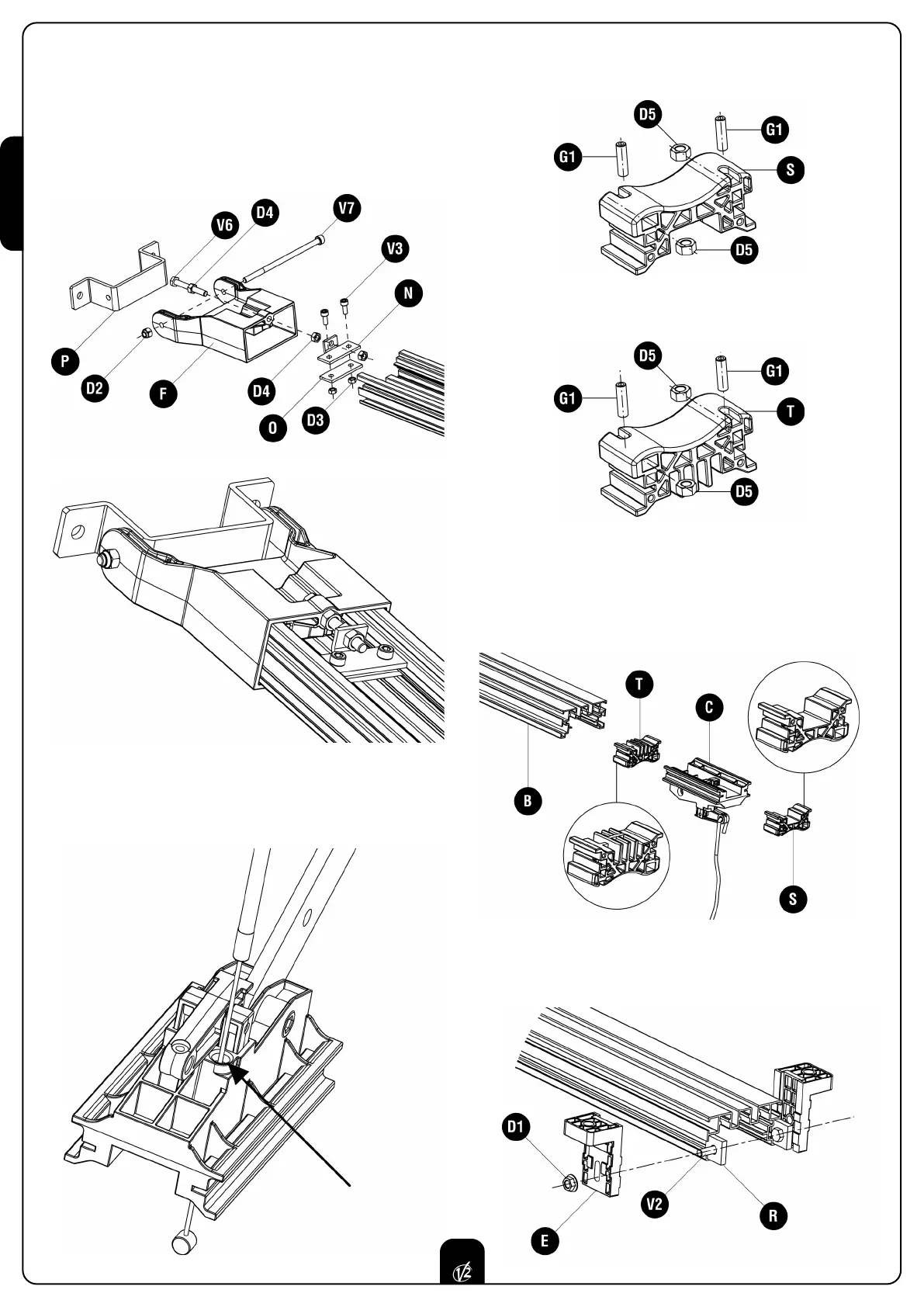

2.0 Assemble fastening supports E: insert bolts V2 and drill
plates R into the special section bar spaces, then adapt
such supports on the section bar with reference to the
bolts and close nuts D1.
1.9 Insert the mechanic closing stop T, the draft truck C and
the mechanic opening stop S into the section bar guide B.
WARNING: we suggest to grease the sliding part of the draft
truck with spray grease usable also on plastic parts.
1.8 Insert the bolts D5 into the special spaces of the mechanic
opening stop T and lightly fasten grub screws G1.
1.4 Insert tip O and bracket N into the special section bar
guides, then lightly fasten by means of the two screws V3
and bolts D3.
1.5 Insert the front fastening group F into the section bar
guide and bring it up to the ledge. Fasten the element
F on the bracket N by means of the special adjustment
screw V6. Shut bolts and screws and check the firmness.
1.6 If you want to install the accessory J5 kit for release from
outside, its metallic string needs to be inserted into the
special draft truck C hole before putting the truck into the
section bar.
26
1.7 Insert the bolts D5 into the special spaces of the mechanic
opening stop S and lightly fasten grub screws G1.
