ENGLISH
RELEASE FROM INSIDE
To release the automation: just pull the doorknob downwards.
WARNING: do not use the doorknob equipped with a
string to open the door. It is forbidden hanging objects to the
release string.

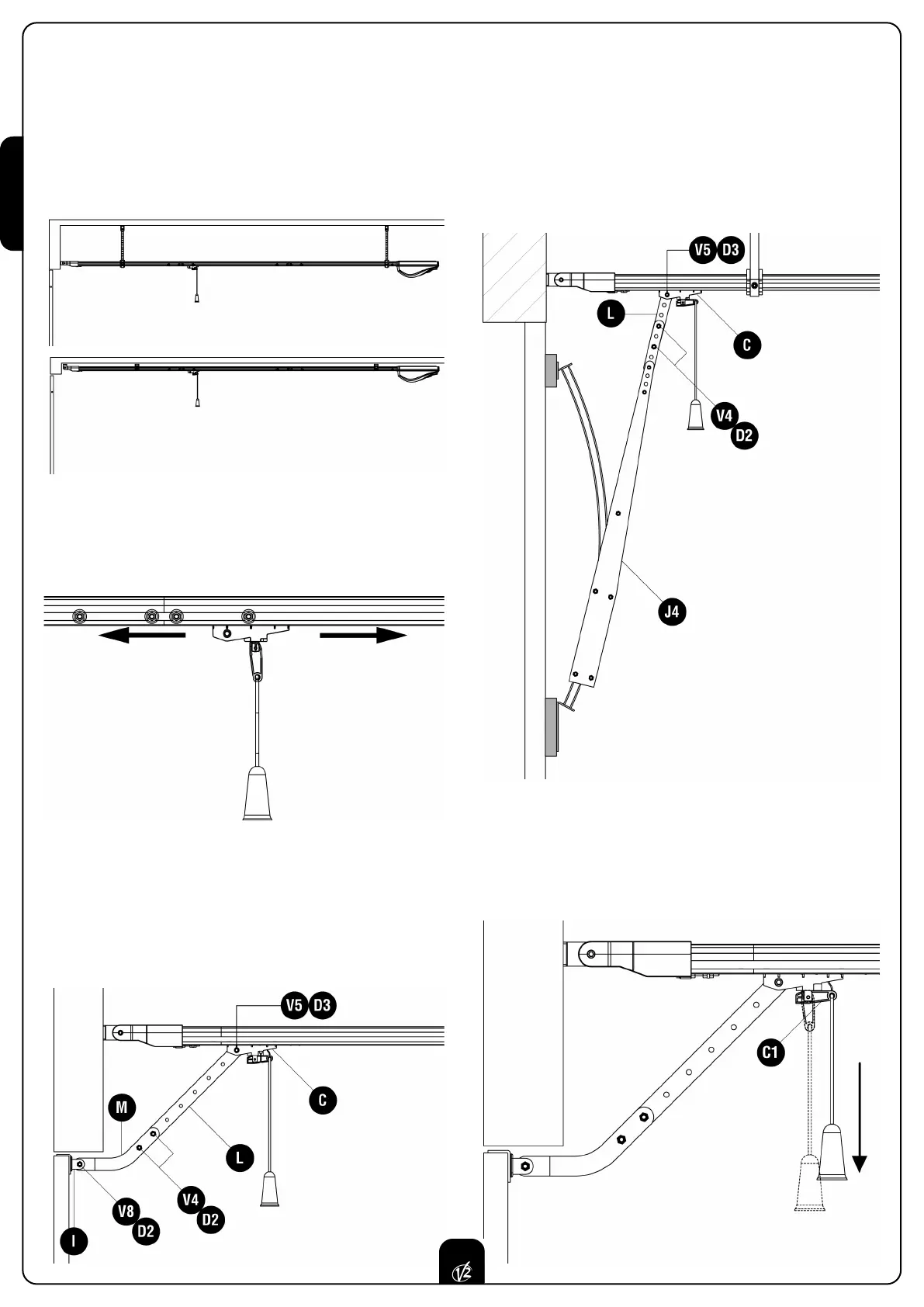

2.5 For sectional and spring doors only
Fasten the draft small square I on the door upper part
by following the previous reference points.
Join the draft small square I and the drilled bar L by
means of the special curved arm M through 2 bolts V4,
1 bolt V8 and 3 nuts D2.
Join the drilled bar L to the draft truck C by means of a
screw V5 and a nut D3.
2.4 Following the reference points, which have been previously
traced on the ceiling, identify the fastening points for
supports E or bracket P, then drill and using plugs
suitable to the ceiling (ø min. 8 mm) fasten the automation.
WARNING: follow the measurements listed in the
paragraph “USE LIMITS” page 22.
IT IS FORBIDDEN hanging objects or weights to the section
or motor.
2.6 For counterweight balanced doors only
Fasten the sliding arm J4 on the door upper part by
following the previous reference points.
The two anchor plates (upper and lower) of the adapter
arm J4 must be on the same line, otherwise add
thickness.
Join the drilled bar L to the drilled bar of the arm by
means of 2 bolts V4 and 2 nuts D2.
Join the drilled bar L to the draft truck C by means of a
screw V5 and a nut D3.
WARNING: release the draft truck and control that
slide easily along the whole guide.
Remove any friction before installing.
28
