Vacon NX series User Manual

Appendices vacon • 119
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
7

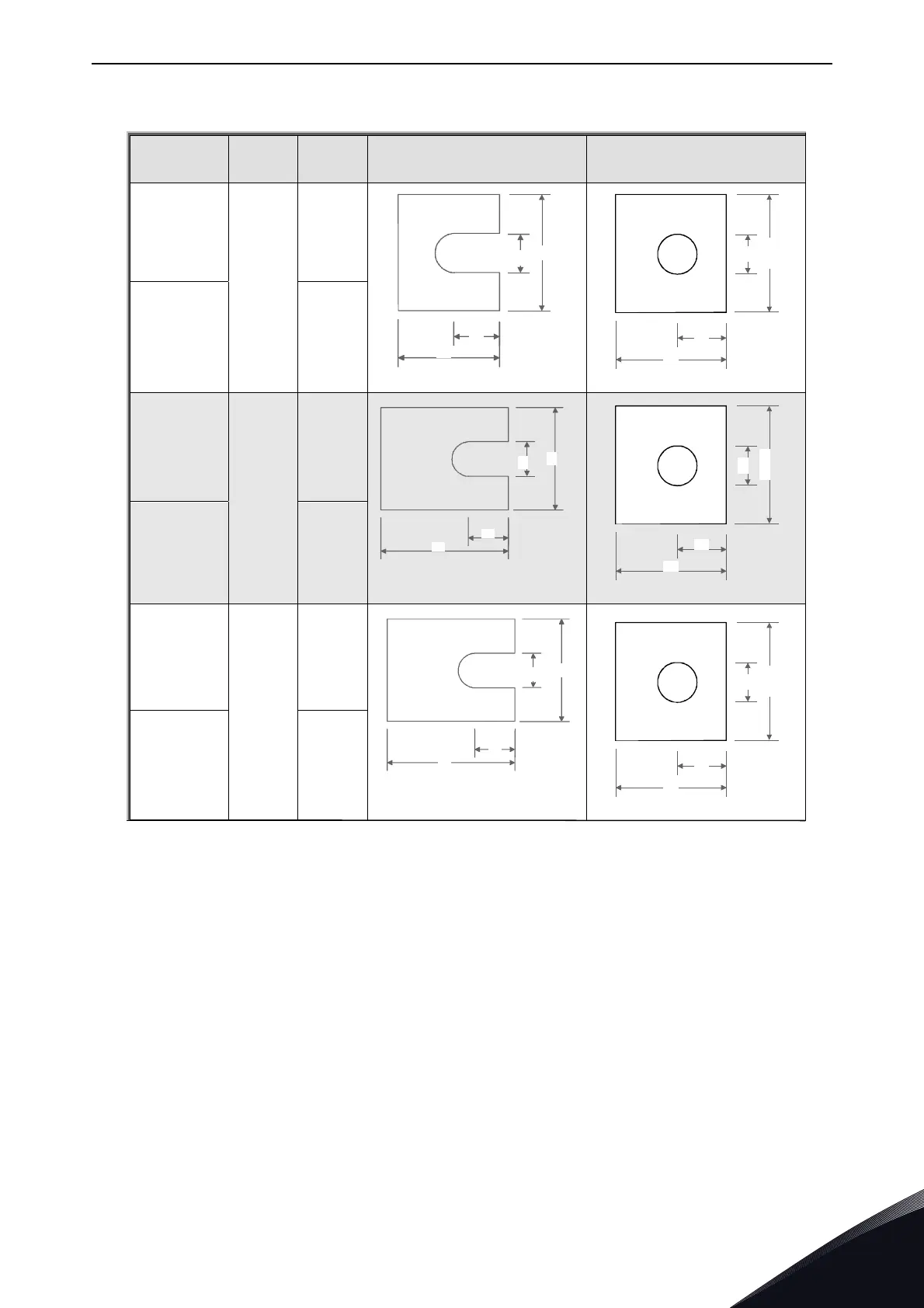

Figure 87. Terminal sizes for VACON
®
NX Active Front End units
Frame Type
IL
[A]
DC terminal AC Terminal
NXA_0261 5
FI9
261
PE: M8×25
NXA_0170 6 170
NXA_0460 5
FI10
460
PE: M8×25
NXA_0325 6 325
NXA_1300 5
FI13
1300
PE: M8×25
NXA_1030 6 1030
40
13
35
16
6x40
13
38
17
40
13
50
16
40
13
50
16
6x40
13
38
17
6x40
13
38
17
11213.emf

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
