Installation vacon • 79
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
5
Jumper selections on the OPTA1 basic board
You can change the functions of the AC drive to make them better agree with your requirements. To
do this, change some positions for the jumpers on the OPTA1 board. The positions of the jumpers
set the signal type of analogue and digital inputs.
On the A1 basic board, there are 4 jumper blocks: X1, X2, X3 and X6. Each jumper block contains 8
pins and 2 jumpers. See the possible jumper selections in the figure below.

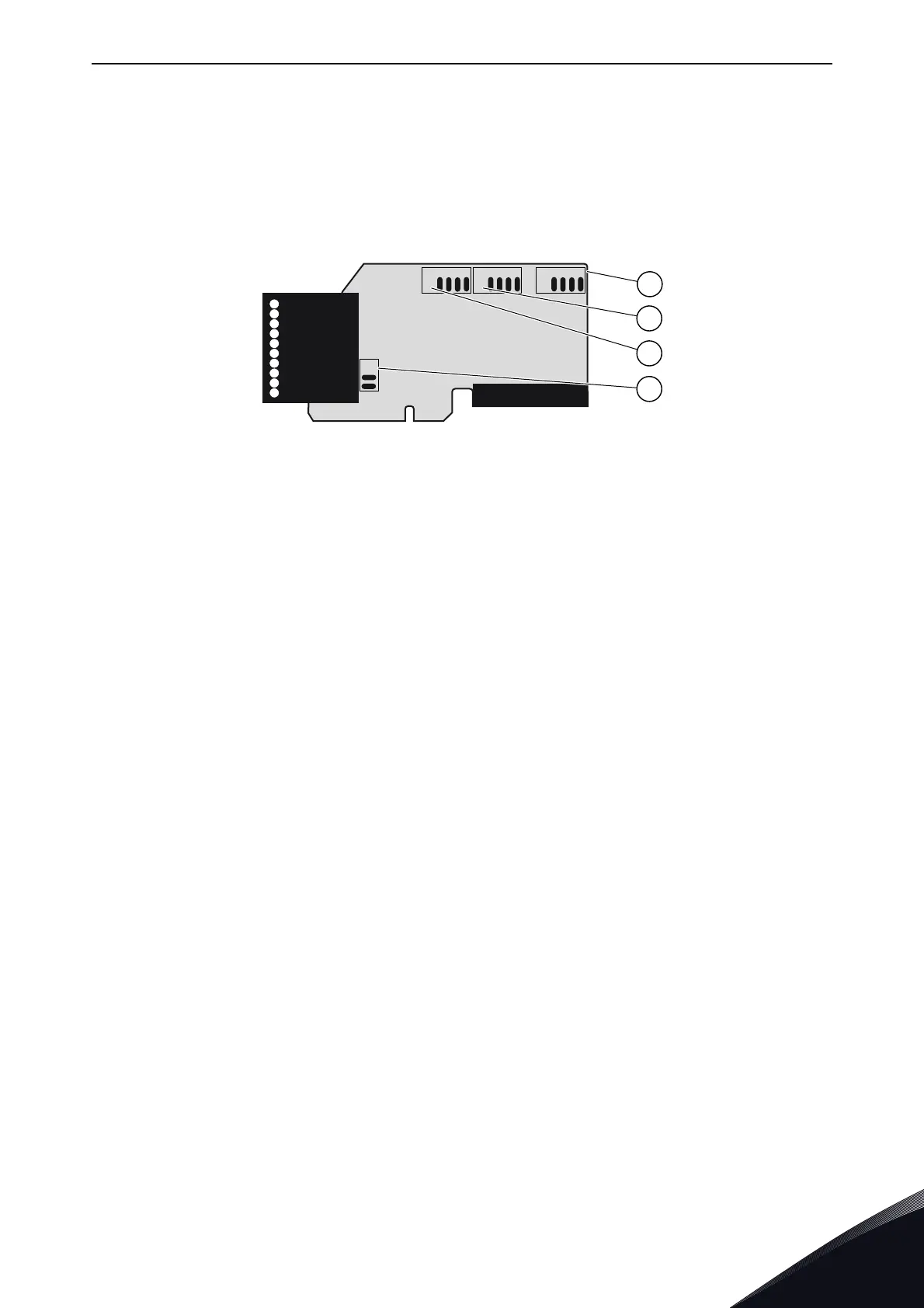

Figure 51. Jumper blocks on OPTA1
X6
X2
X1
X3
X6X2X1
ABCD ABCD ABCD
X3

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
