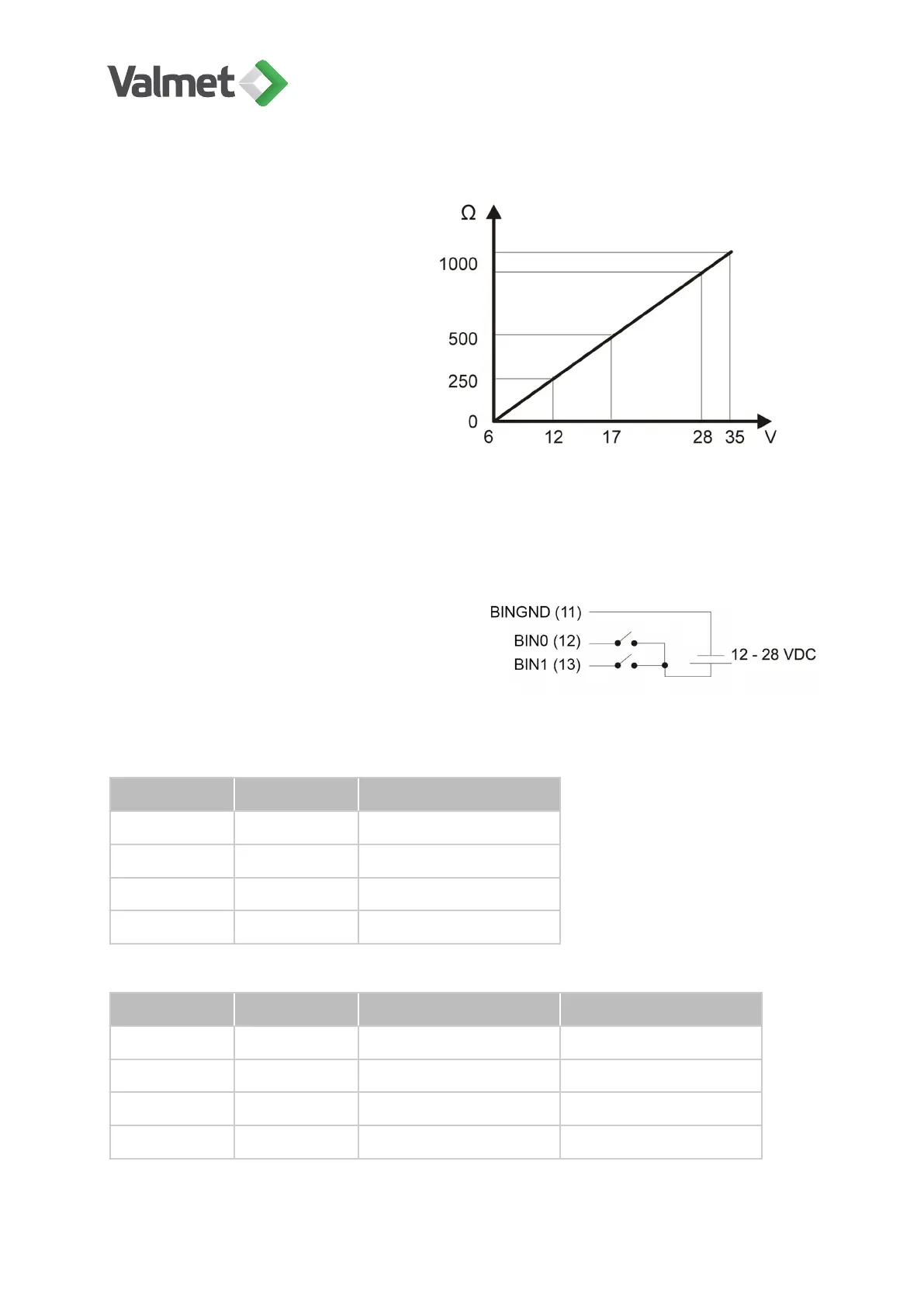

The device contains a passive
currently supply that requires an
external power source. The load
capacity of the current output as
a function of supply voltage. Re-
sistance here is the sum of load
resistor, cable resistance and
power source resistance in the
current loop. HART communica-
tion requires min. 250 Ω load re-
sistance.
6.3
Binary inputs
The TCU has two galvanically isolated bi-
nary inputs, BIN 0 (term. 12) and BIN 1
(term. 13). These inputs share a common
ground (term. 11). The system must sup-
ply 12–28 VDC / 10 mA voltage to the bi-
nary input.
Table 1: BIN1 configured for recipe selection.
BIN0 BIN1 recipe
open open recipe 1 selected
closed open recipe 2 selected
open closed recipe 3 selected
closed closed recipe 4 selected
Table 2: BIN1 configured for sampler status.
BIN0 BIN1 recipe sampler status
open open recipe 1 selected sampler not active
closed open recipe 2 selected sampler not active
open closed recipe 1 selected sampler active
closed closed recipe 2 selected sampler active
Installing the TCU | 23 (48)
K20798 V1.1 EN - 1 - 12/2019
