46
Installation With 1430CIK—Clean Install Kit

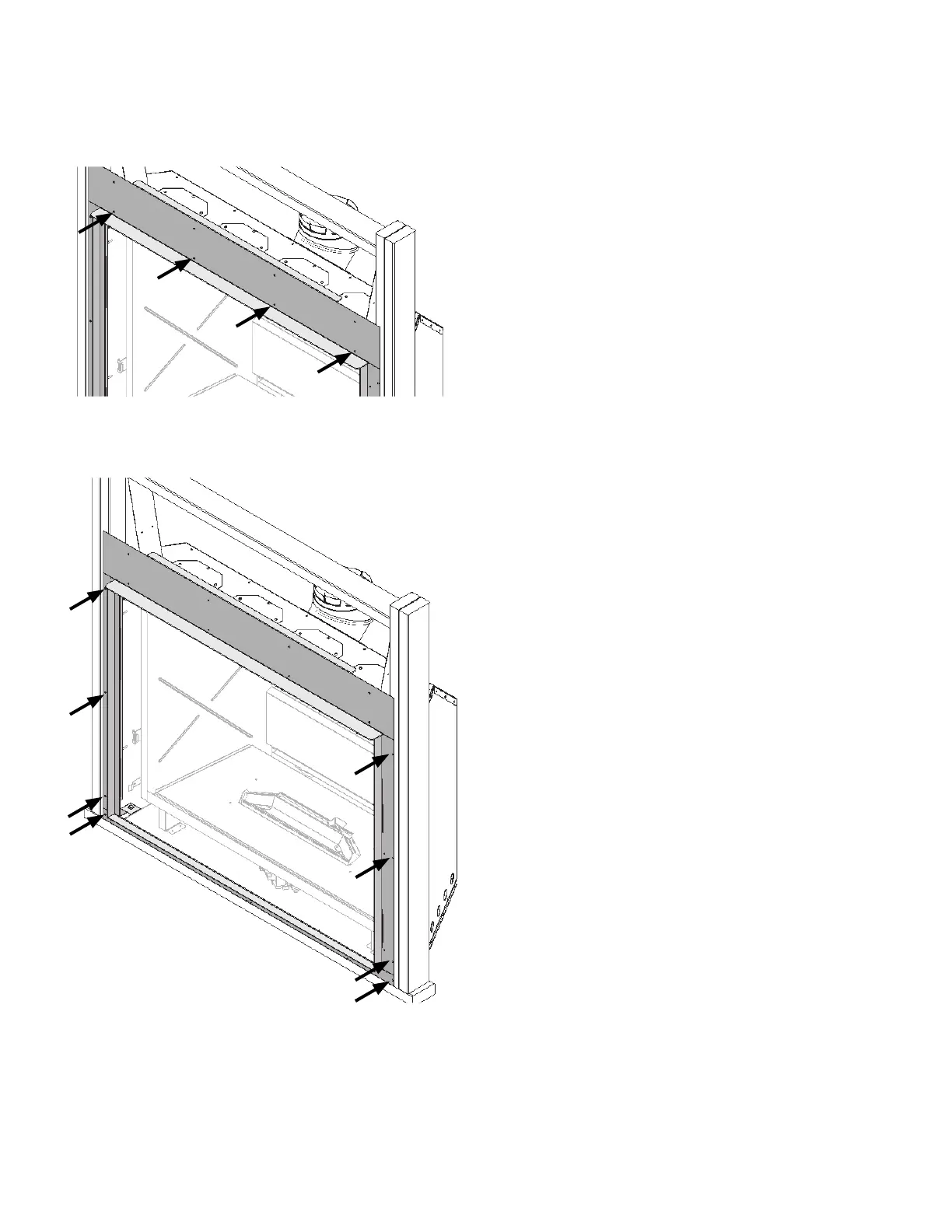

9. Install the top panel as indicated (4 x 1/2” screws).
10. Ensure the appliance is snug against the framing
and secure it to the studs on each side (4 fi xing
points per side). Use wood screws (not supplied).
11. Set aside the side doors, removable panel and bar-
rier screen to install later when the appliance’s set-
up and wall fi nish application are completed.
12. Continue the installation of the appliance.
