Valor H6 - Page 93

93
Appendix D - HeatShift System

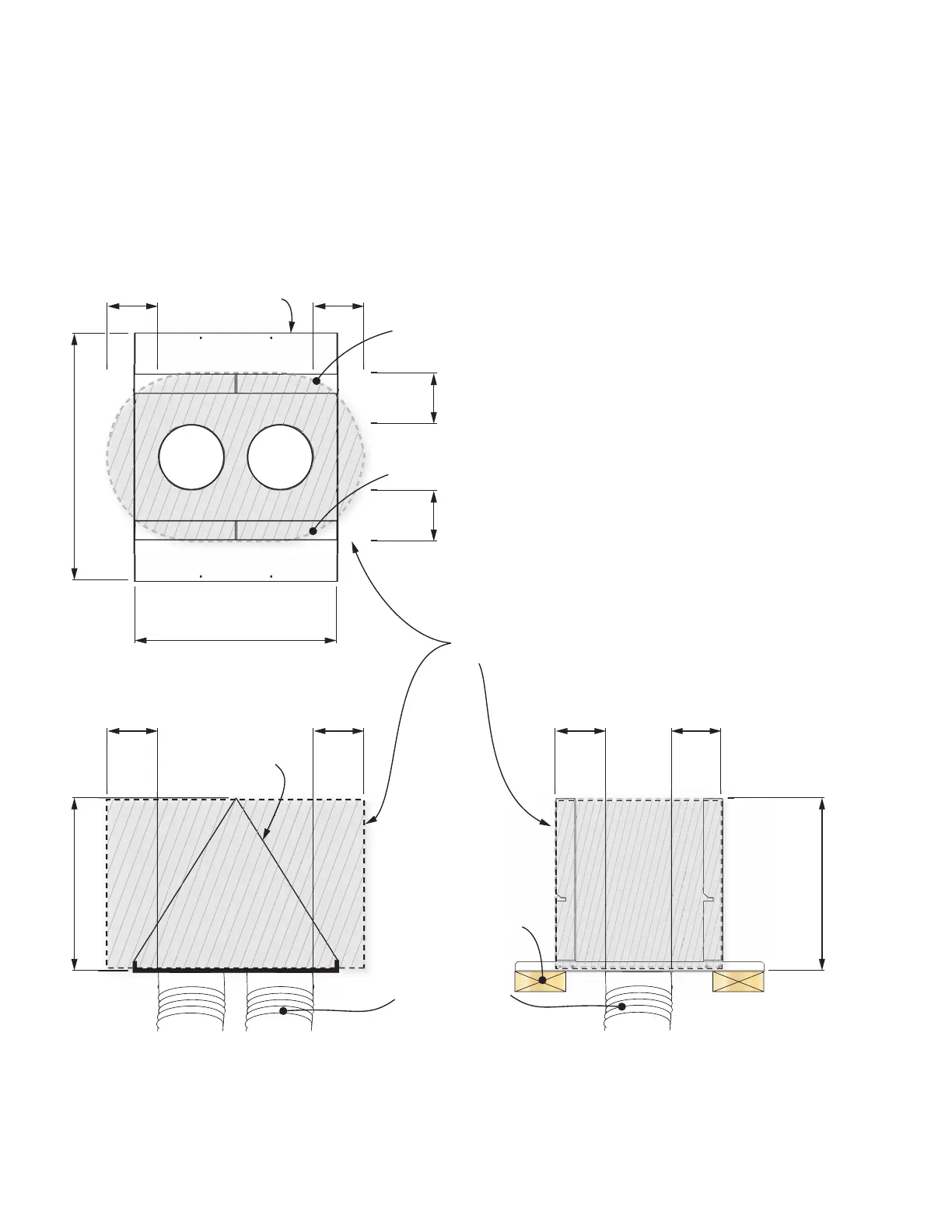

LDK7 Clearances to Combustibles
4”4”
4”4” 4”4”
13-1/2”
19-1/2”
16”
13-1/2”
4” 4”
Stand-o
Non-combustible
zone above plates
Perimeter of plates
may be trimmed to
suit installation
Combustible framing
allowed below plates
5” dia. pipes -
maintain 1” clearance
to combustible materials
Front View
Top View
Right Side View
Stand-o
Stand-os
