10. Technical Specifications
PaX-i Plus / Insight Installation Manual 119
10. Technical Specifications
10.1 Mechanical Specifications.

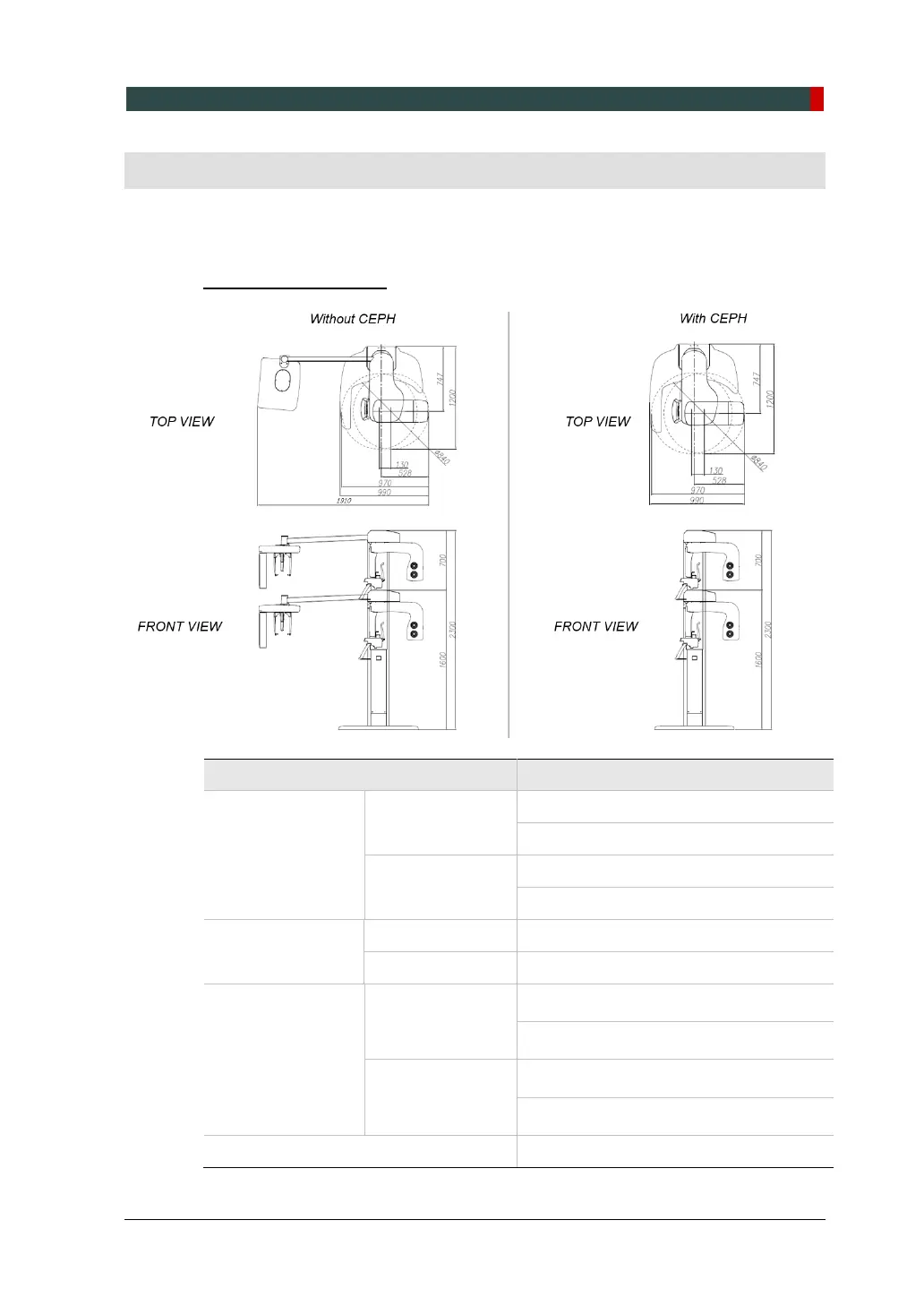

Dimensions (unit = mm)
Item Description
Weight
Without CEPH
unit
95 kg (209.4 lbs. – without Base)
135 kg (297.6 lbs. – with Base)
With CEPH unit
120 kg (264.5 lbs. - without Base)
160 kg (352.7 lbs. - with Base)
Total Height
Without Base Max. 2272 mm
With Base Max. 2300 mm
Dimensions during
operation
(Length x Width x
Height)
Without CEPH
unit
990 mm (L) x 1200 mm (W) x 2272 mm
(H) (without Base)
990 mm (L) x 1200 mm (W) x 2300 mm
(H) (with Base)
With CEPH unit
1910 mm (L) x 1200 mm (W) x 2272 mm
(H) (without Base)
1910 mm (L) x 1200 mm (W) x 2300 mm
(H) (with Base)
Rotating Unit Vertical Movement Max. 700 mm
