Vatech PaX-i Plus

7. Setting up PC
PaX-i Plus / Insight Installation Manual 79
7. Setting up PC

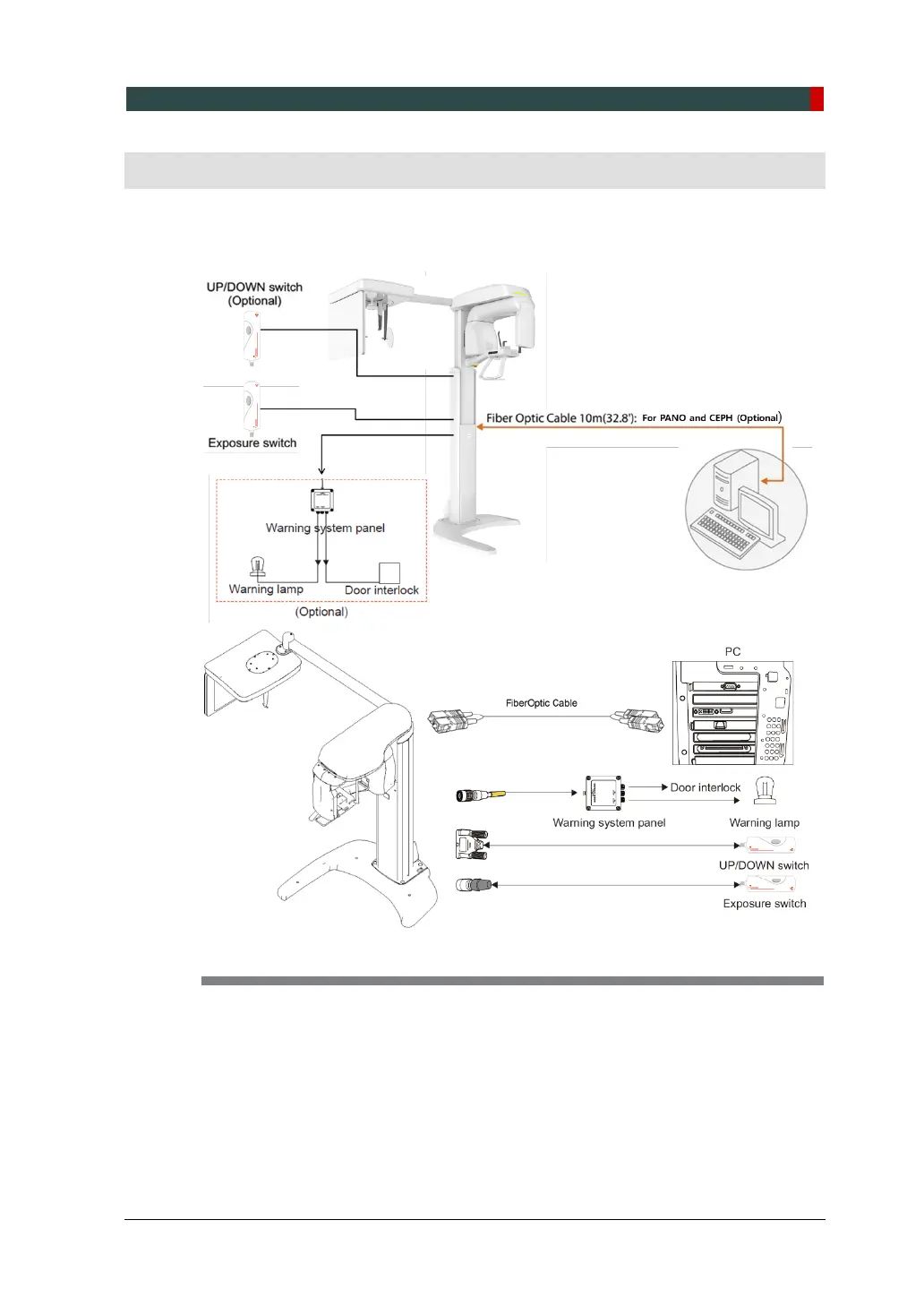

7.1 Direct Connection Diagram
Fiber Optic Cable - Used to transfer image data to the PC.
Warning System Panel - Used to provide a visible indicator: Light on when the
equipment is irradiating X-ray.
