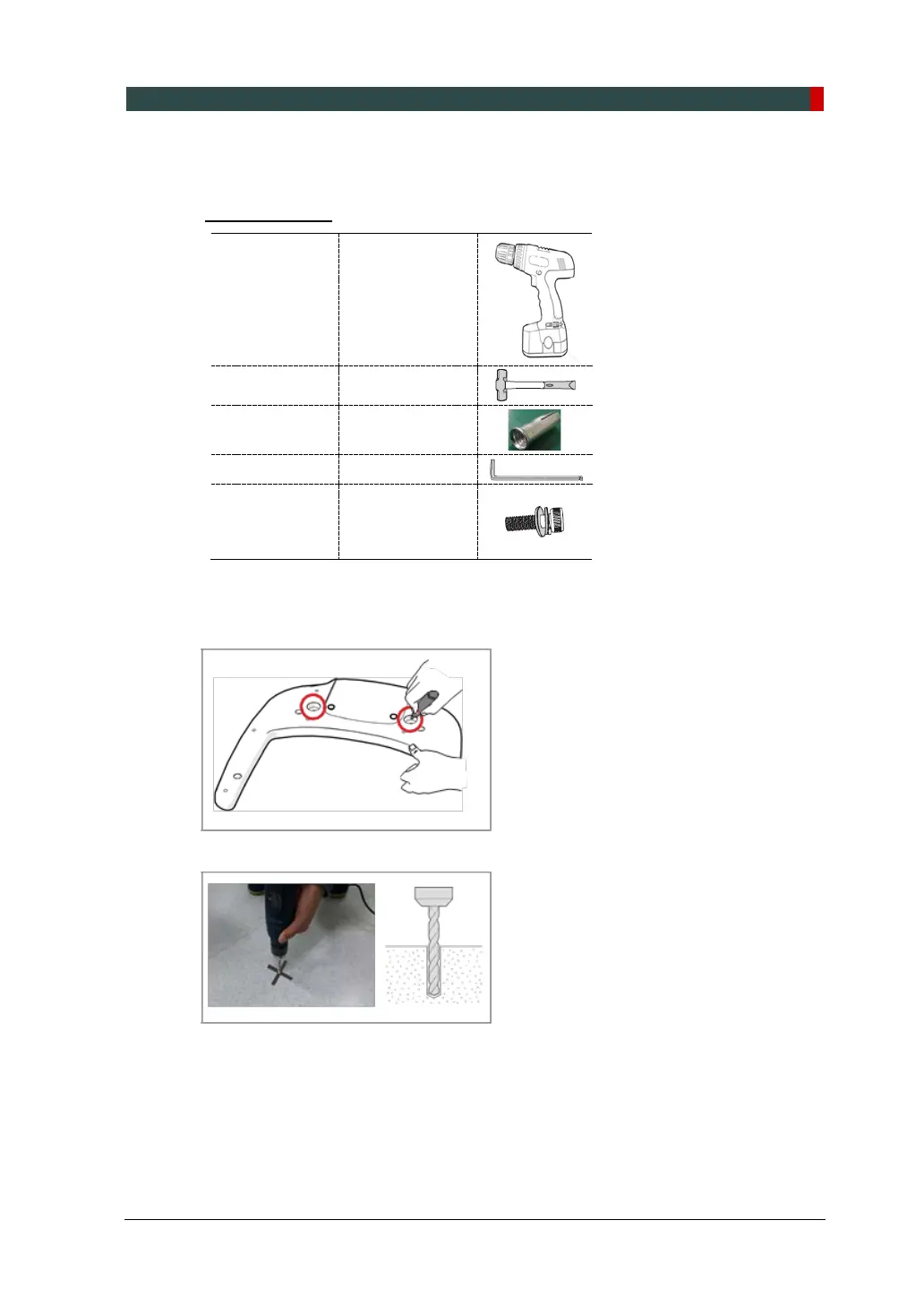

4. Installing the Equipment: Base Stand (Optional)
PaX-i Plus / Insight Installation Manual 55
4.7 Fixing the Base (Optional)
Concrete Floor
Hammer Drill
L = 200 mm
(7.9ā€)
Hammer n/a
Ficher strong
anchor
M10 x 40
(Part No. 34)
Allen Wrench
8 mm / 0.3ā€
Wrench Bolt
M10 x 25
w/ Spring and
Flat Washers
(Part No. 24)
1. Before installing the equipment, put the base unit on the installation site and mark 2
locations on the floor
2. Drill the floor holes of size 12mm x 30mm (depth) using the concrete hammer drill.
3. Remove the debris and clean the holes using the dust pump.
