6.2 Assembling the Temple Supports and the Chinrest

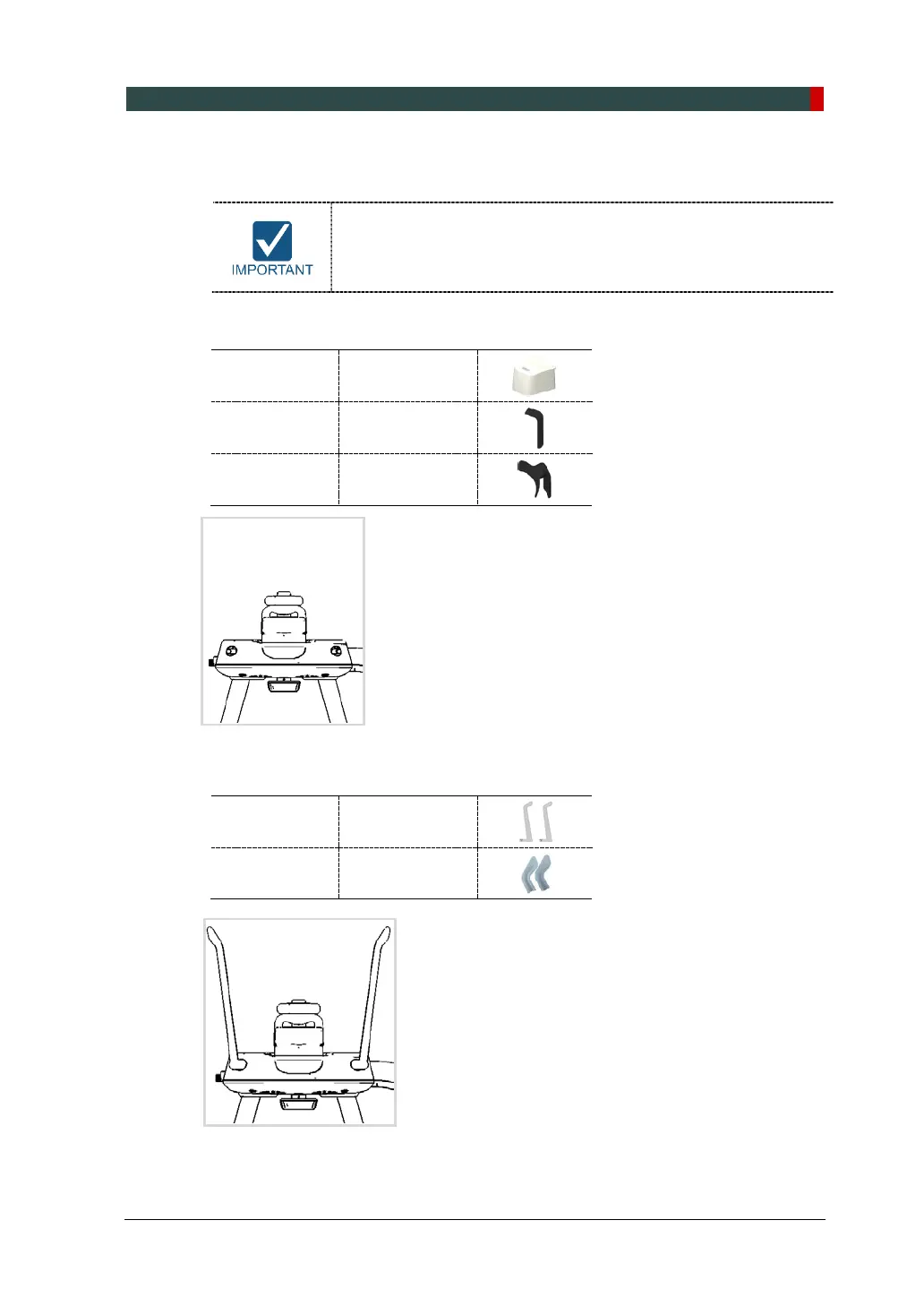

Assembling the Temple Supports and the Bite Block should be
done after Acquiring a test image is completed
1. Insert the normal Chinrest and the normal Bite Block into the unit.
Chin
Block_High
(Part No.7)
Chin_Bite (Part No. 8)
Chin-Bite2 (Part No. 8)
2. Insert the Temple Supports.
Temple
Supports
1 set
(Part No. 5)
Cap Ear ROD
1 set
(Part No. 5)
