Appendix A
PaX-i Plus / Insight Installation Manual 127

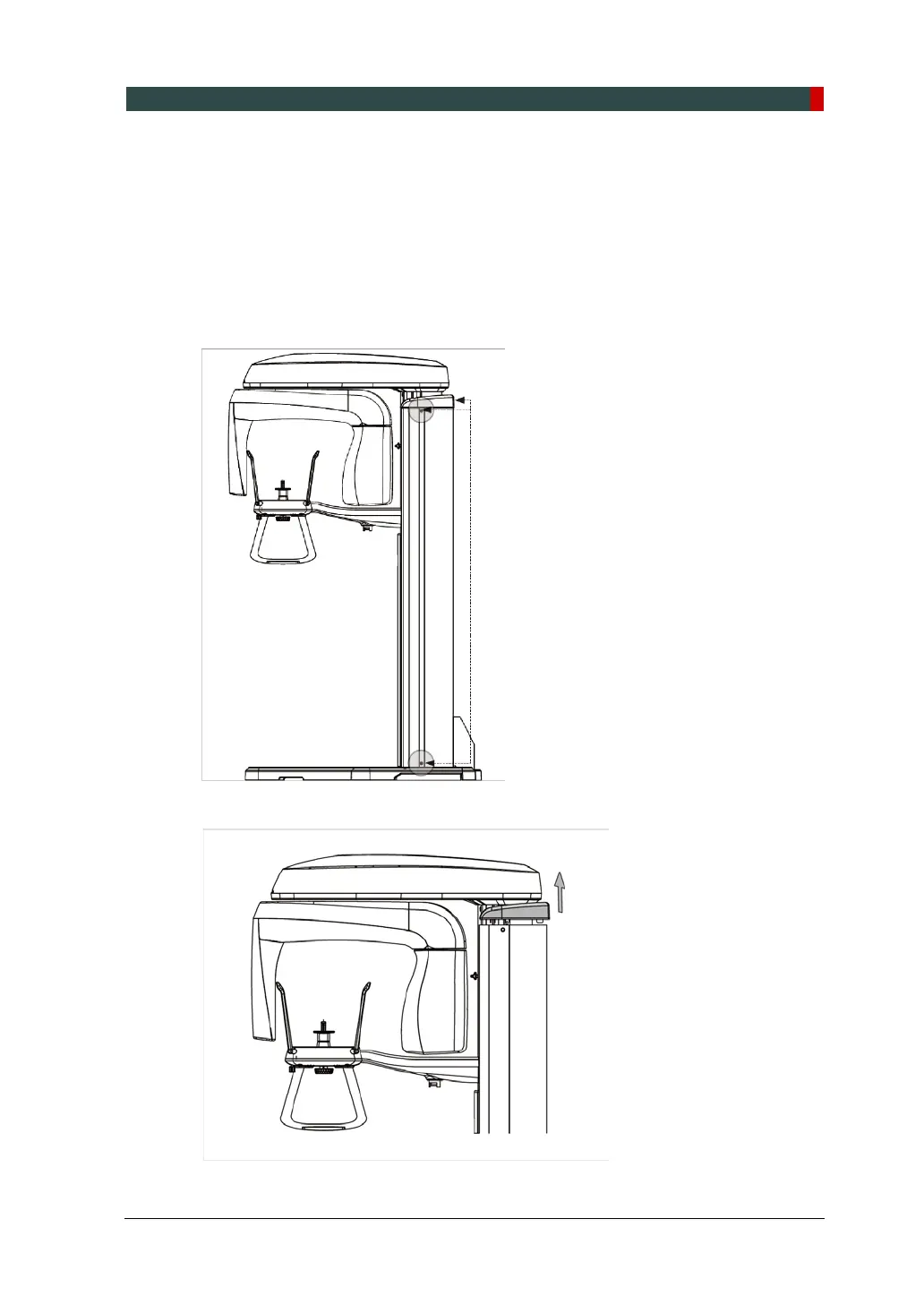

C. Limiting the Column Height
This section explains how to limit the column height within permissible range.
1. Measure the ceiling height in the X- ray shield room : H
ceiling
< Removing the column covers >
2. Remove three Fixing Bolts as shown in the figure.
3. Remove the Column Rear-Top Cover as shown in the figure.
