126 PaX-i Plus / Insight Installation Manual

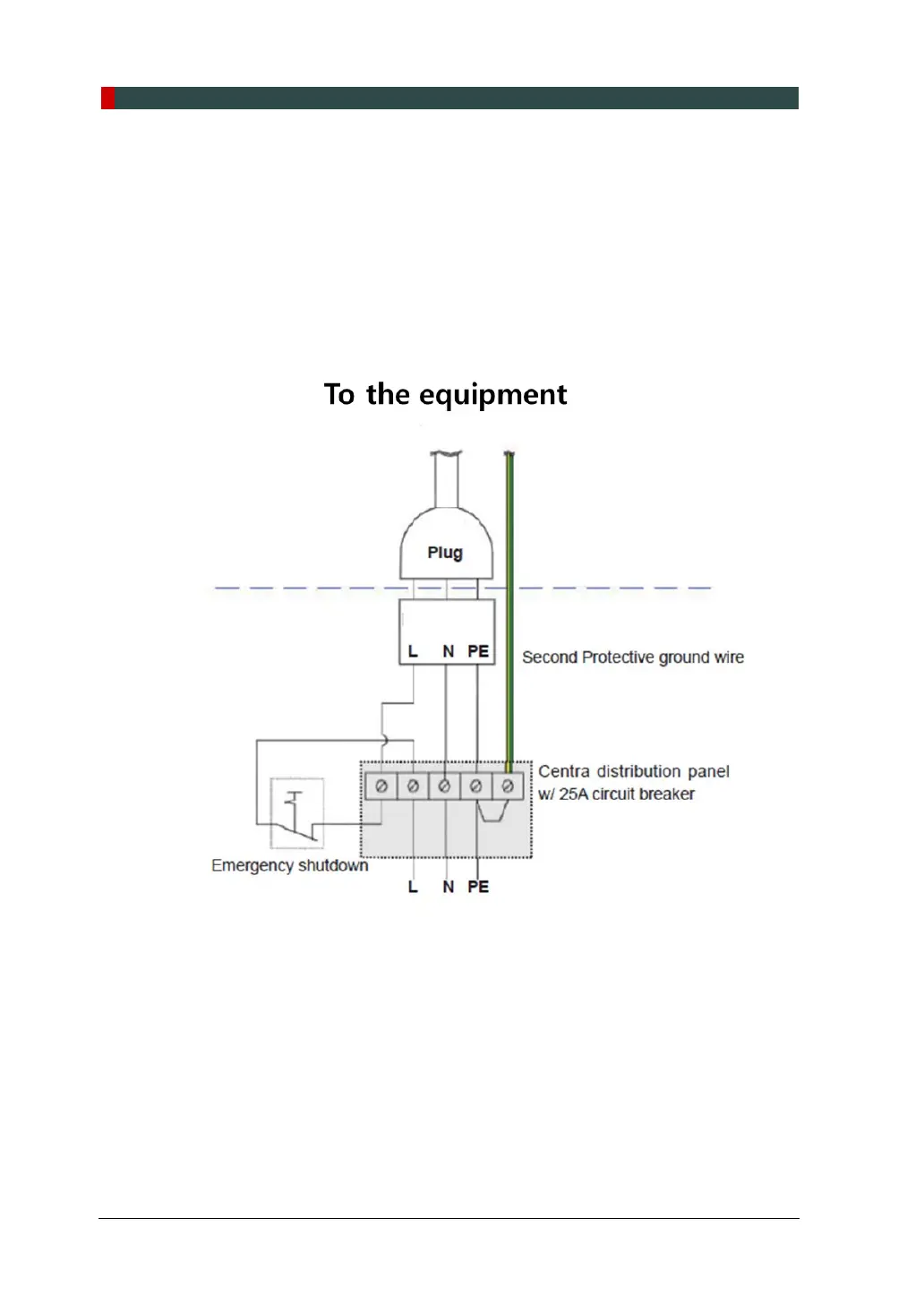

B. Installing the Emergency Stop Switch
 Install the Emergency Stop Switch in the power cable line.
 Install this switch so that it is easy to reach in the emergency case but can’t be
pushed by mistake.
 The switch shall be a type of mistake-proof.
 The switch is not supplied.]
 The switch shall be installed at a height of 1.2 to 1.5 meters (47 to 60”).
1. The cable sizes: N, L and PE≥ 12 AWG (3 x 4 mm
2
).
2. The cable to Emergency Stop Switch shall be the same size as the power cable itself.
3. Install the socket connector terminal for the 2nd protective ground wire.
