4. Installing the Equipment: Base Stand (Optional)
PaX-i Plus / Insight Installation Manual 43

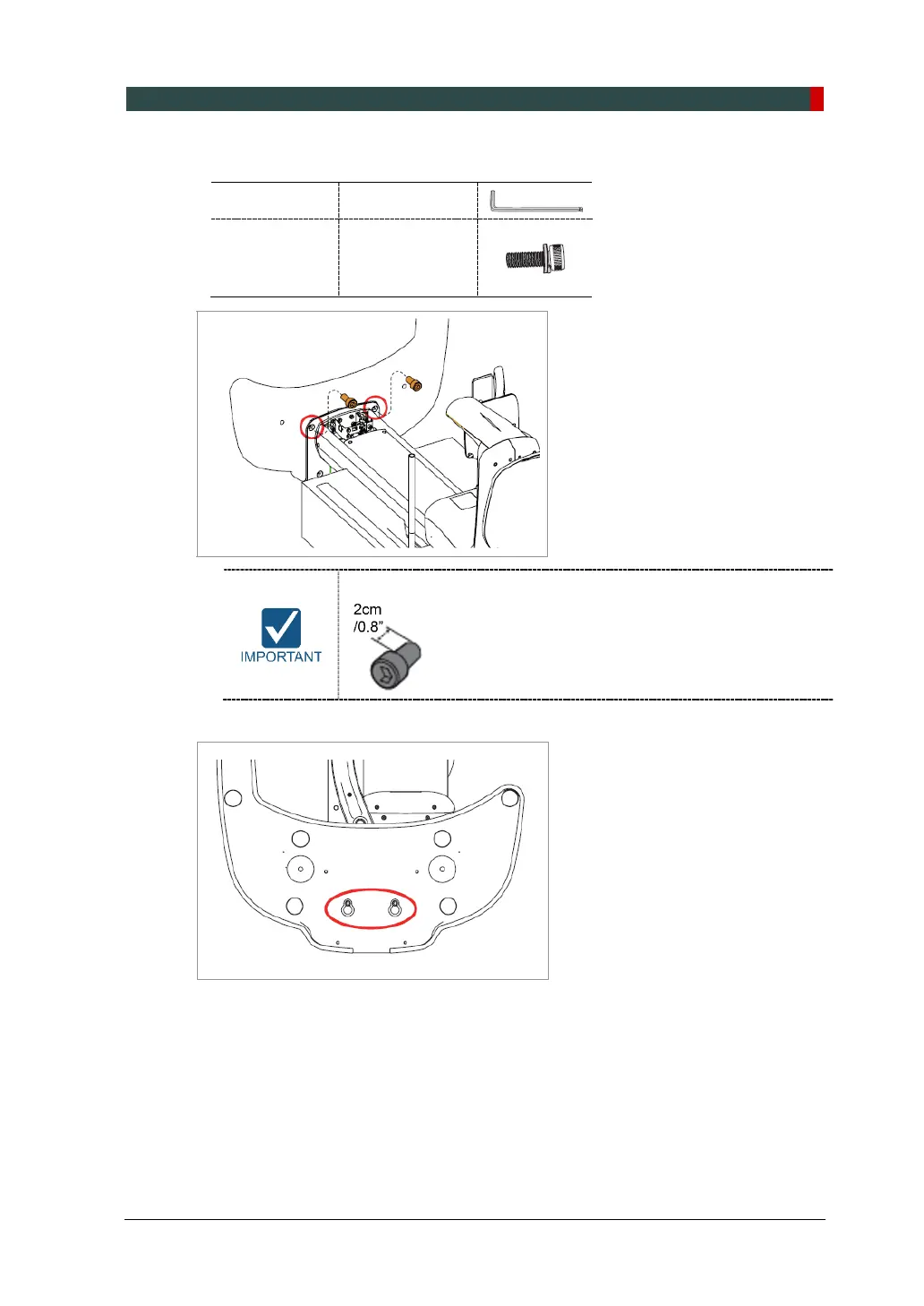

2. Fasten the Base Unit with two Wrench Bolts.
Allen Wrench 8 mm / 0.3”
Wrench Bolt
M10 x 20
w/ Spring
(Part No. 23)
Put the bolts into the holes until
about 20 mm are left outside.
3. Tighten two Wrench Bolts firmly as shown as below.
