7. Setting up PC
84 PaX-i Plus / Insight Installation Manual
Installing the Fiber Optic Frame Grabber Board
1. Unplug the power cable from the back of PC and wait for a while.
2. Open the PC cover.

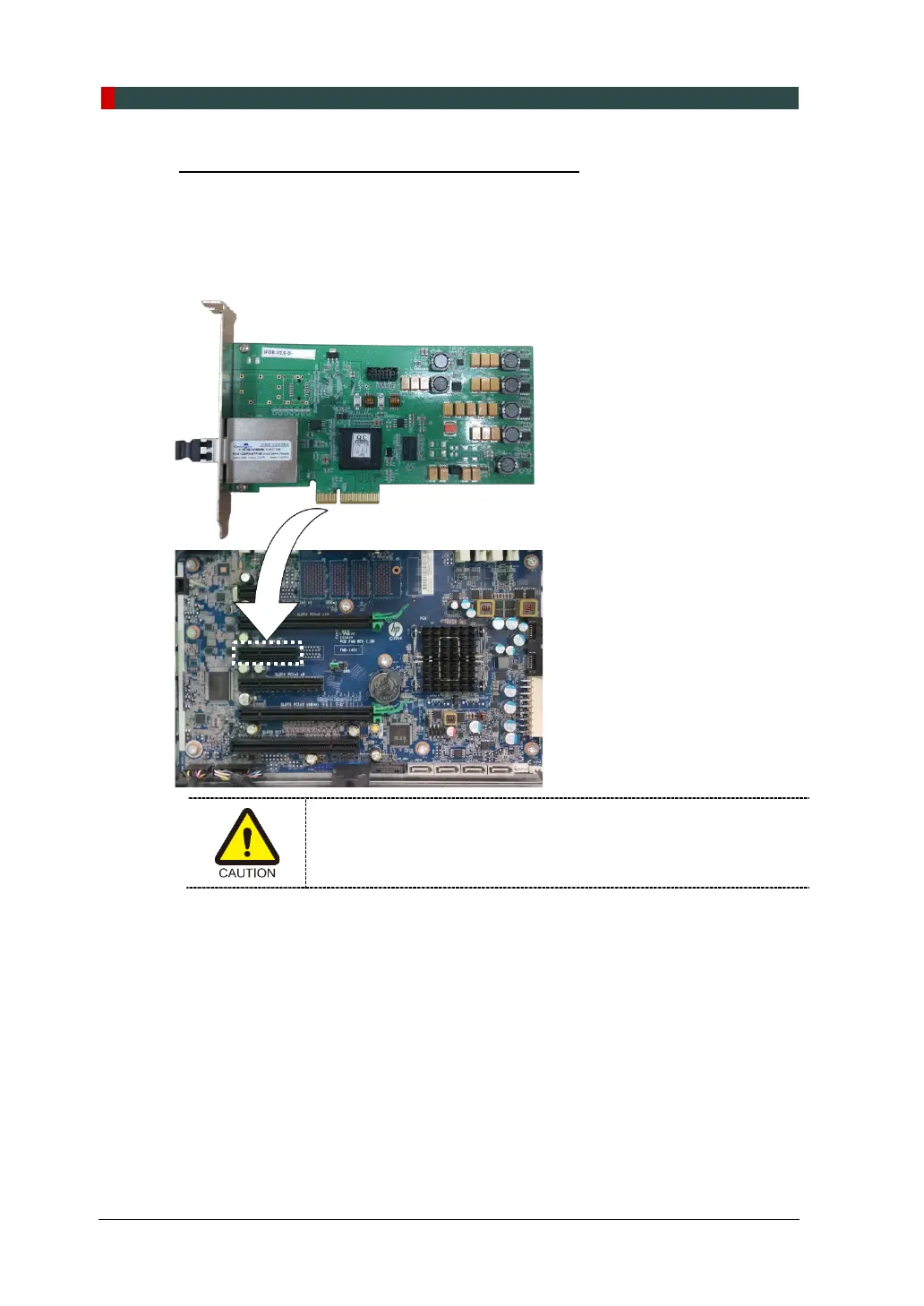

3. Insert the fiber grabber board (Part No. 21) carefully into that PCIe2 x 4 slot and
lock it.
Double check the locking status between the board and its holder
after the board installed. A bad insertion of the board into the PC
slot could cause failure for Dark calibration data acquisition or noisy
image acquisition.
4. Put the slot holder back to its initial position.
To Next Page
