9 Acquiring the test image
12.
Make sure that the result meets the PANO collimator alignment standard.
Permitted value
(Red pixels covered by collimator)
Top 10~35 pixels
Bottom 10~25 pixels
Left 2~4 pixels
Right 2~4 pixels

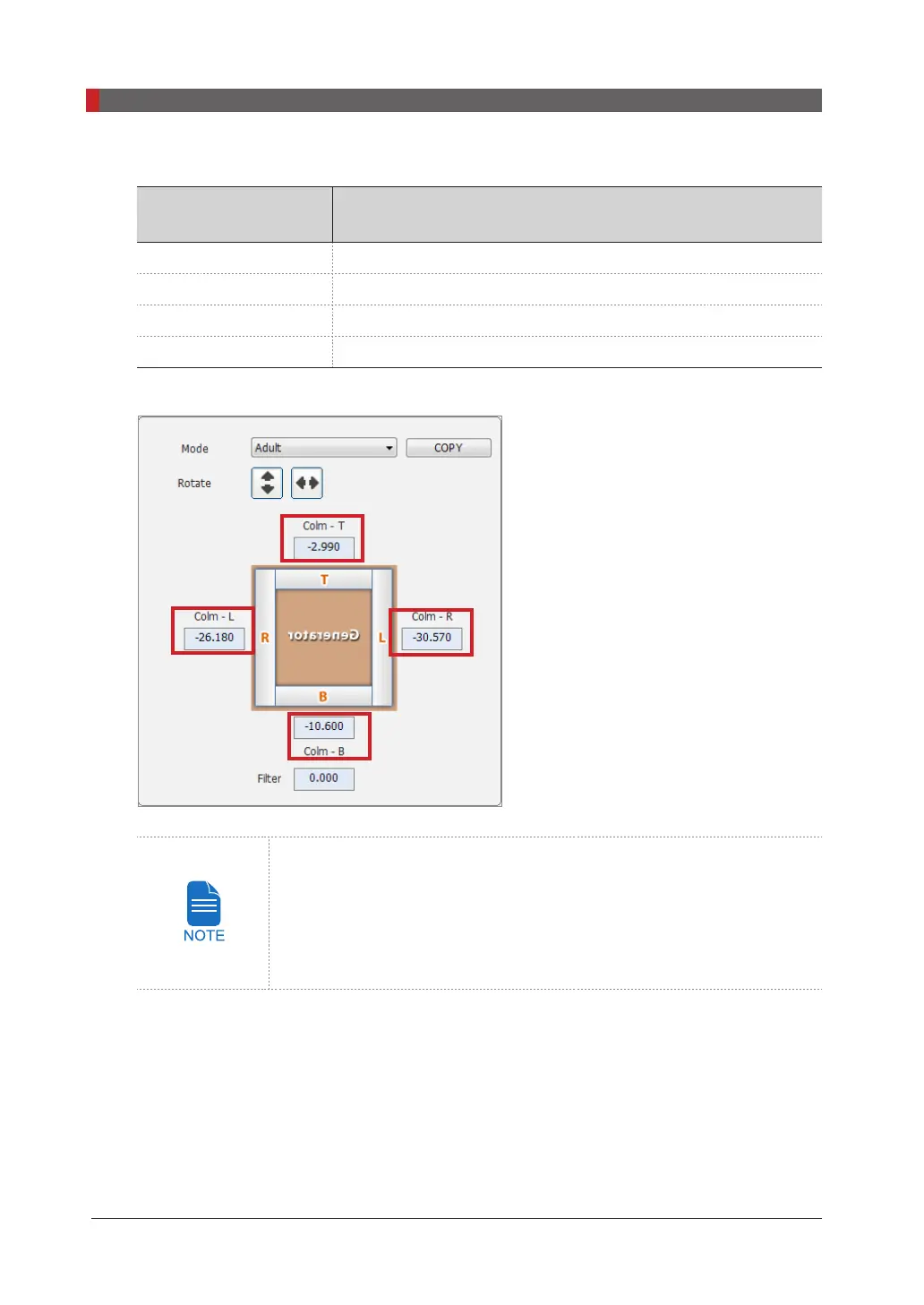

13.
If the red pixel count is out of the permitted value, change the collimator position values.
●
0.1(mm) is approximately 3 pixels.
●
To close the 4 axis collimator, decrease the collimator position
values.
To open the 4 axis collimator, increase the collimator position
values.
14.
Do the steps 5 through 12 until the top/bottom/left/right red pixel count is within the permitted
value.
15.
When the Collimator Alignment is completed, click
COPY
to save the Adult mode collimator
position value as Child mode default value.
