Vatech PaX-i3D Smart Installation Manual

Pax-i3D Smart(PHT-30LFO) Installation Manual
131
9 Acquiring the test image

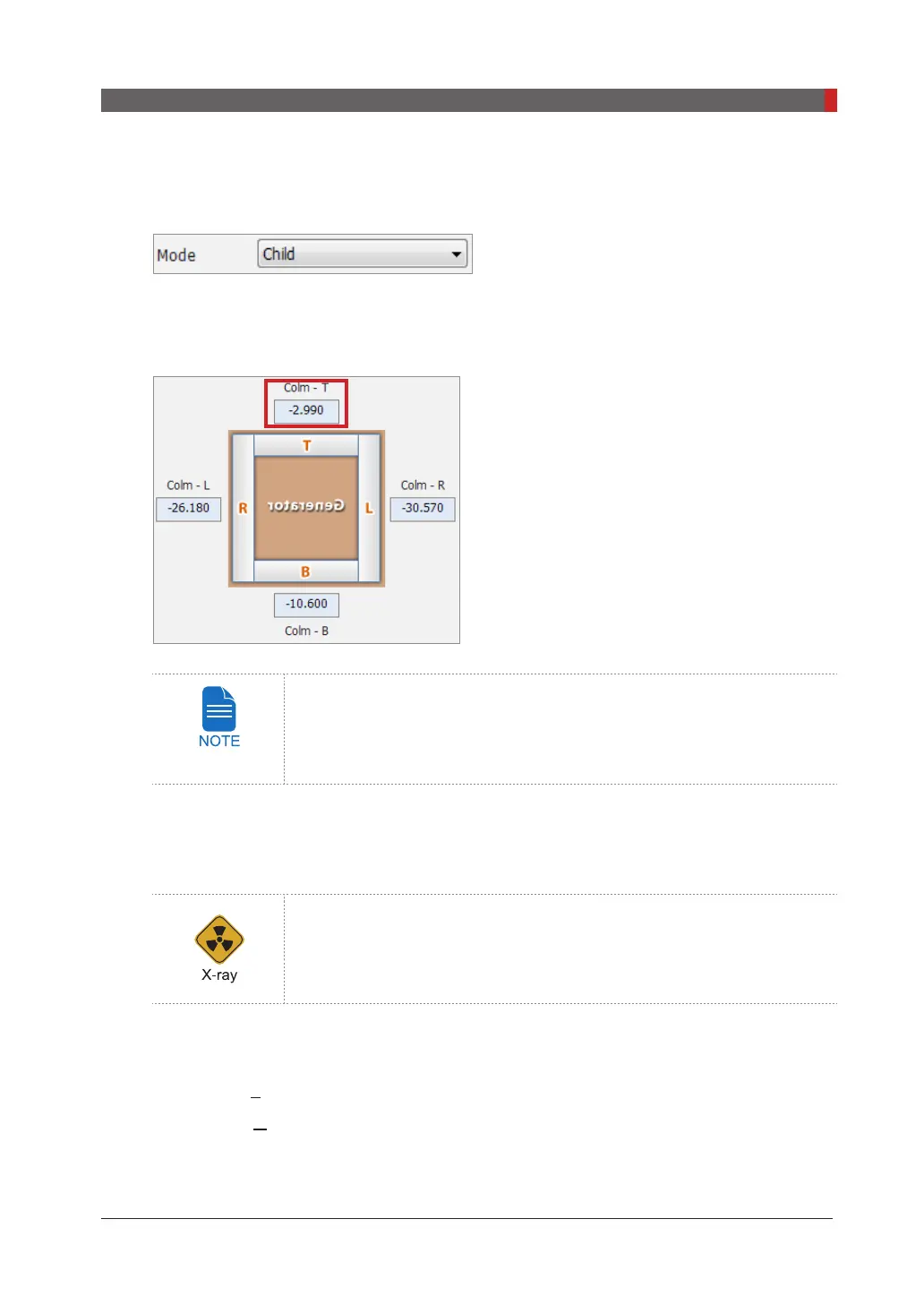

ChildmodeAlignment
1.
Select
Child
in the
Mode
drop-down list box.
2.
Subtract -3.0(mm) from Adult mode Top position value and type the calculation value in the
Colm-T
box. Ensure the other values(for Bottom/Left/Right) are the same as Adult mode values
and do not change these values.
If the Adult alignment Top value is -2.990, type -5.990 in the Colm-T
box.
(-2.990 - 3.000= -5.990)
3.
Click
Initial
and wait until the system is initialized.
4.
Click
Capture
when it is enabled.
5.
When Align Sequence window appears, press the X-ray exposure switch
Stay outside of the X-ray shielding room during the exposure.
6.
When
Raw Viewer
window appears, release the X-ray exposure switch.
7.
Select
0009.raw
in the raw le list.
8.
Type
90
in the
T
box
9.
Select
S
in the
M
box.
10.
Make sure that the result meets the PANO collimator alignment standard.
11.
Click
Close
to exit the Collimator Align program.
