Pax-i3D Smart(PHT-30LFO) Installation Manual
135
9 Acquiring the test image
6.
Select
100 x 70
in the
FOV
drop-down list box.
7.

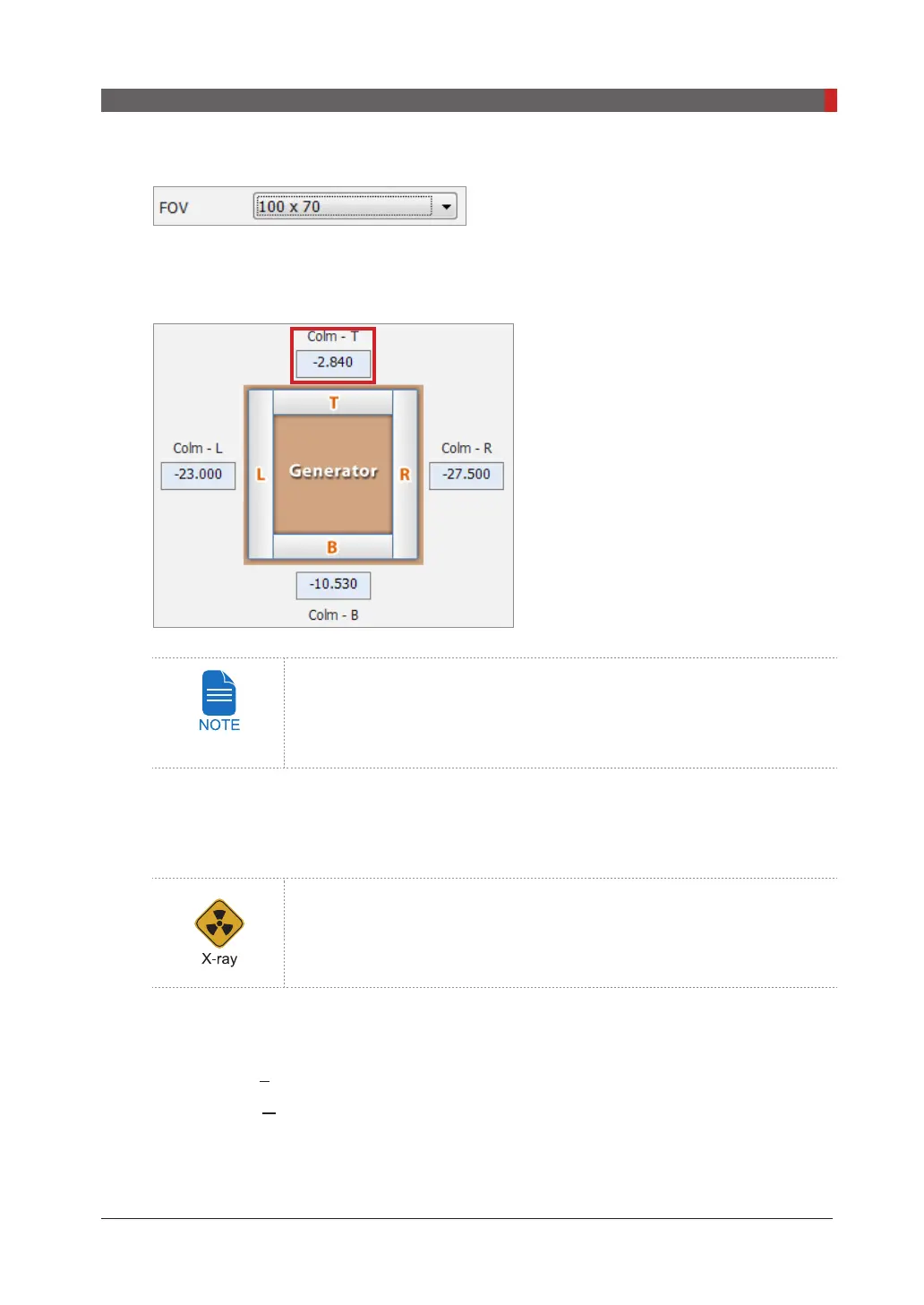

Subtract -7.1(mm) from FOV 10 x 85 Top position value and type the calculation value in the
Colm-T
box. Ensure the other values(for Bottom/Left/Right) are the same as FOV 100 x 85
values and do not change these values.
If the Adult alignment Top value is -2.840, type -9.940 in the Colm-T
box.
(-2.840 - 7.100= -9.940)
8.
Click
Initial
and wait until the system is initialized.
9.
Click
Capture
when it is enabled.
10.
When Align Sequence window appears, press the X-ray exposure switch
Stay outside of the X-ray shielding room during the exposure.
11.
When
Raw Viewer
window appears, release the X-ray exposure switch.
12
. Select
0009.raw
in the raw le list.
13
. Type
75
in the
T
box
14.
Select
S
in the
M
box.
15.
Make sure that the result meets the CBCT Top collimator alignment standard.
16.
When the Collimator Alignment is completed , click
Close
to exit the Collimator Align program.
