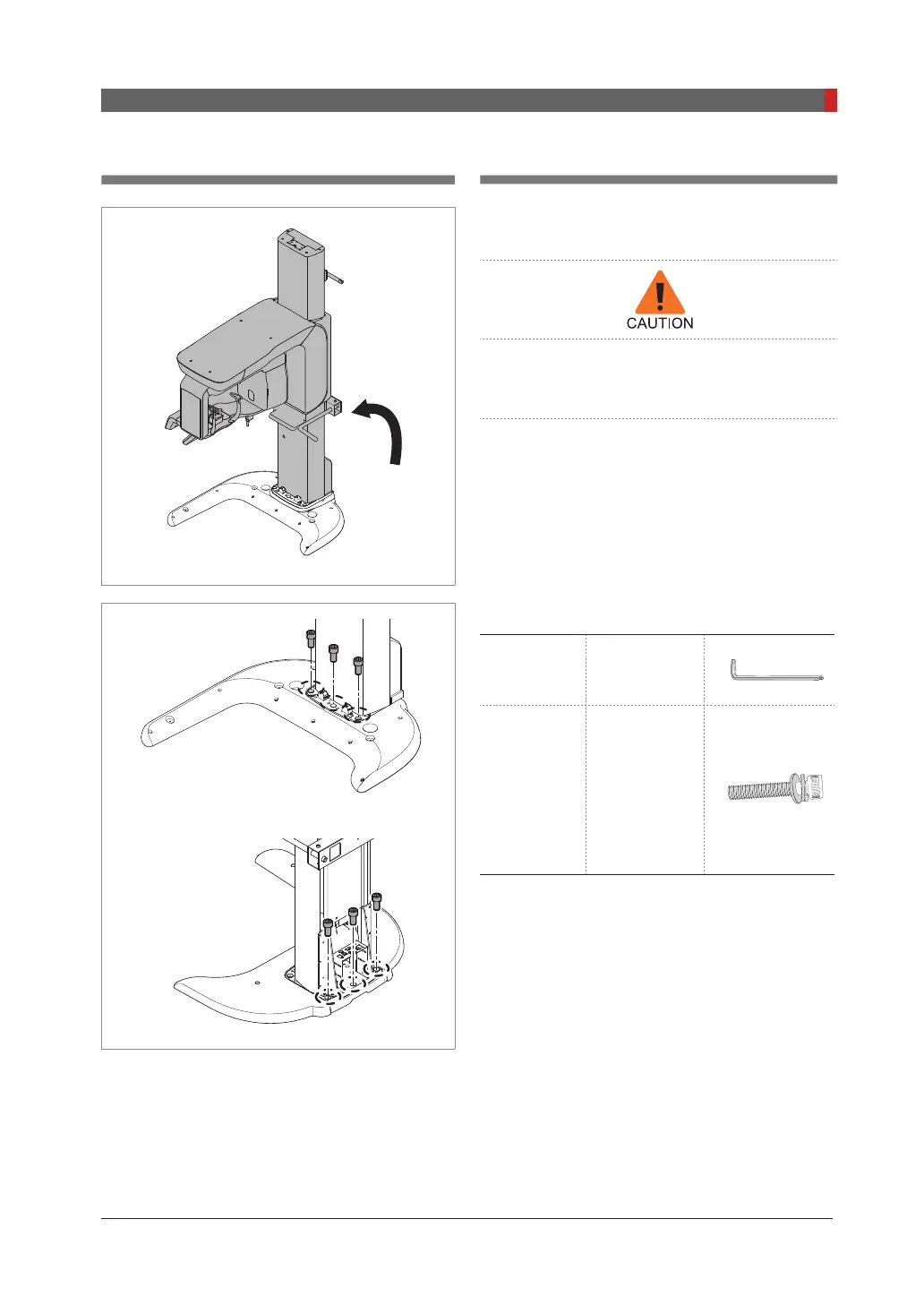

4 Installing the Equipment: Floor Standing (Optional)
3.
Erect the equipment in an upright position on
the base.
Be careful not to damage the cables. Before
erecting the equipment, keep them clear of
the equipment
4.
Fix the column unit to the base unit
.
Allen wrench 8 mm/0.31”
WRENCH
BOLT
M10 x 25
w/spring
and at
washers
Part No.: 23
6 PCS
