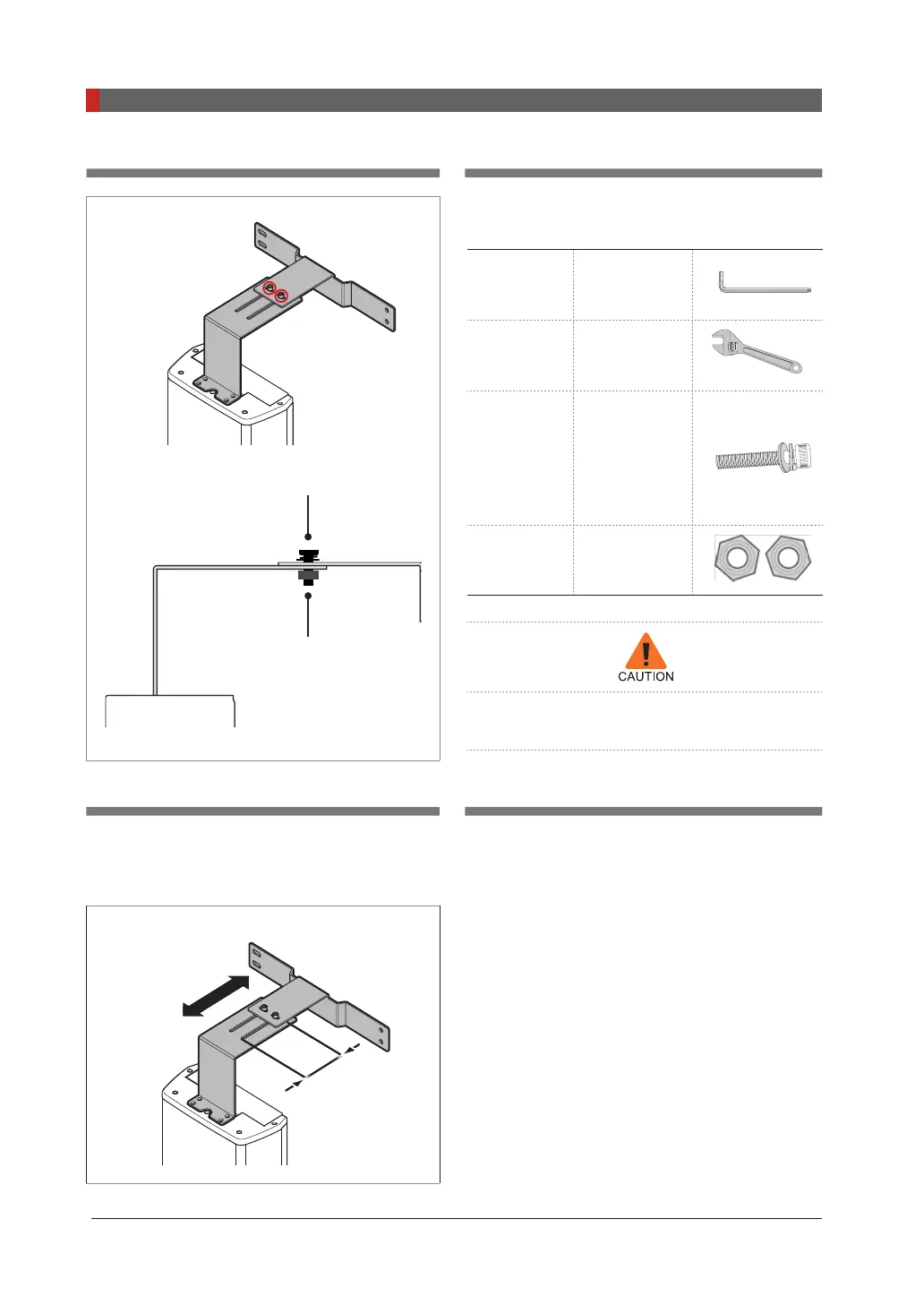

4 Installing the Equipment: Floor Standing (Optional)
Wrench bolts
Nuts
2.
Combine the column and wall brackets in the
following manner with the 2 wrench bolts.
Allen wrench 6 mm/0.24”
Monkey
wrench
WRENCH
BOLTS
M8 x 25 w/
spring and
at washers
Part No.: 35
2 PCS
NUTS
Part No.: 35
2 PCS
Do not tighten the bolts fully yet.
Marking 4 points on the wall
1.
Move the equipment to the installation site as
close as possible
Variable
distance
2.
Adjust the distance between the wall and
equipment by moving it slightly, so that the
wall bracket touches the wall.
