Pax-i3D Smart(PHT-30LFO) Installation Manual
57

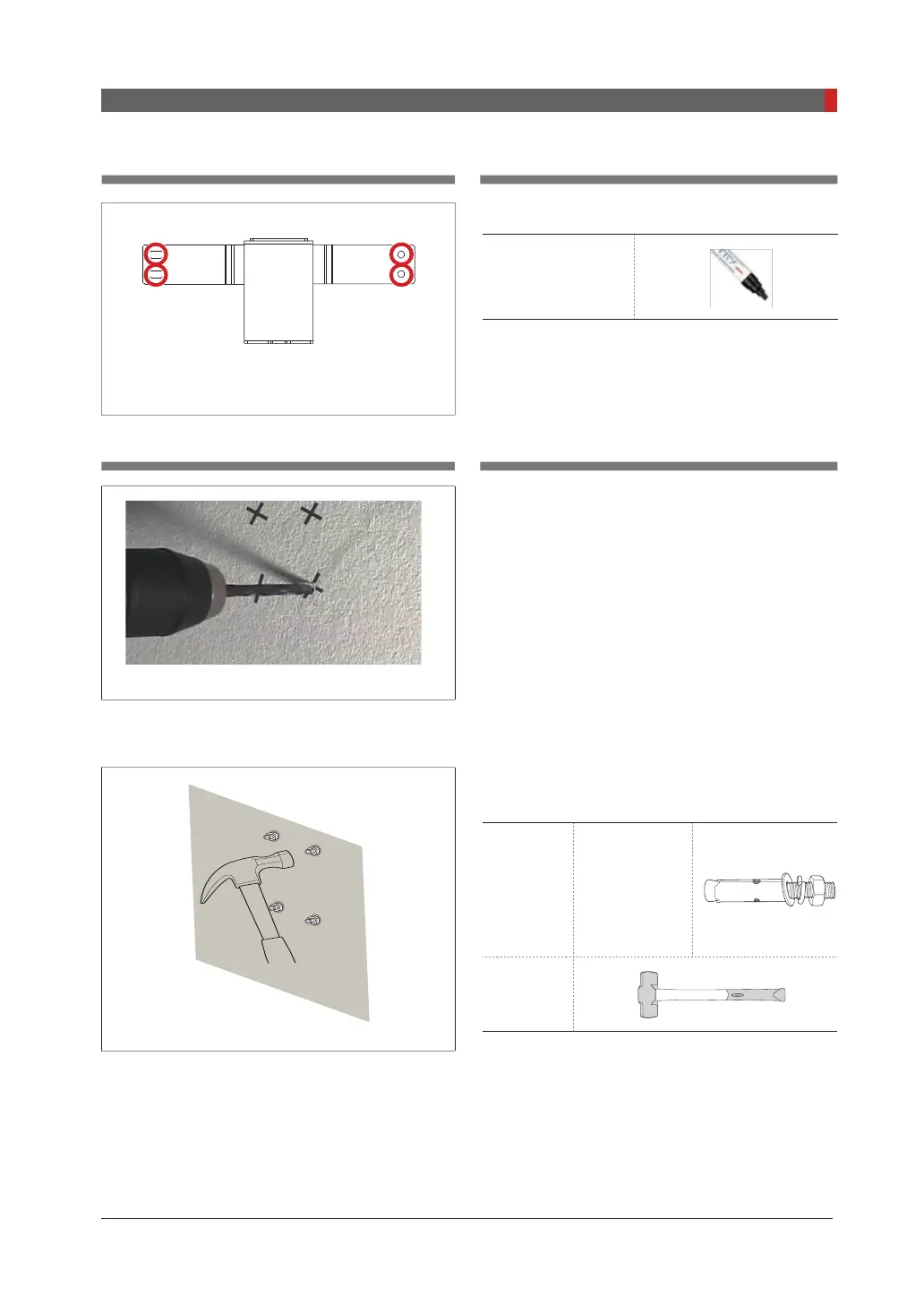

4 Installing the Equipment: Floor Standing (Optional)
On the wall
3.
Mark 4 anchor bolts locations on the wall.
Marker
Drilling on the wall
1.
Drill the wall holes of size 10.5 mm x 30 mm
(depth) using the concrete hammer drill.
2.
Remove the debris and clean the holes using
the dust pump.
3.
Anchor the bolts with the hammer.Verify that
the anchors are secured
WRENCH
BOLTS
M8 Size
Part No.: 34
Wall: 4 PCS
Hammer
drill
