PaX-i3D Green (PHT-60CFO) User Manual
137
12 Technical Specications

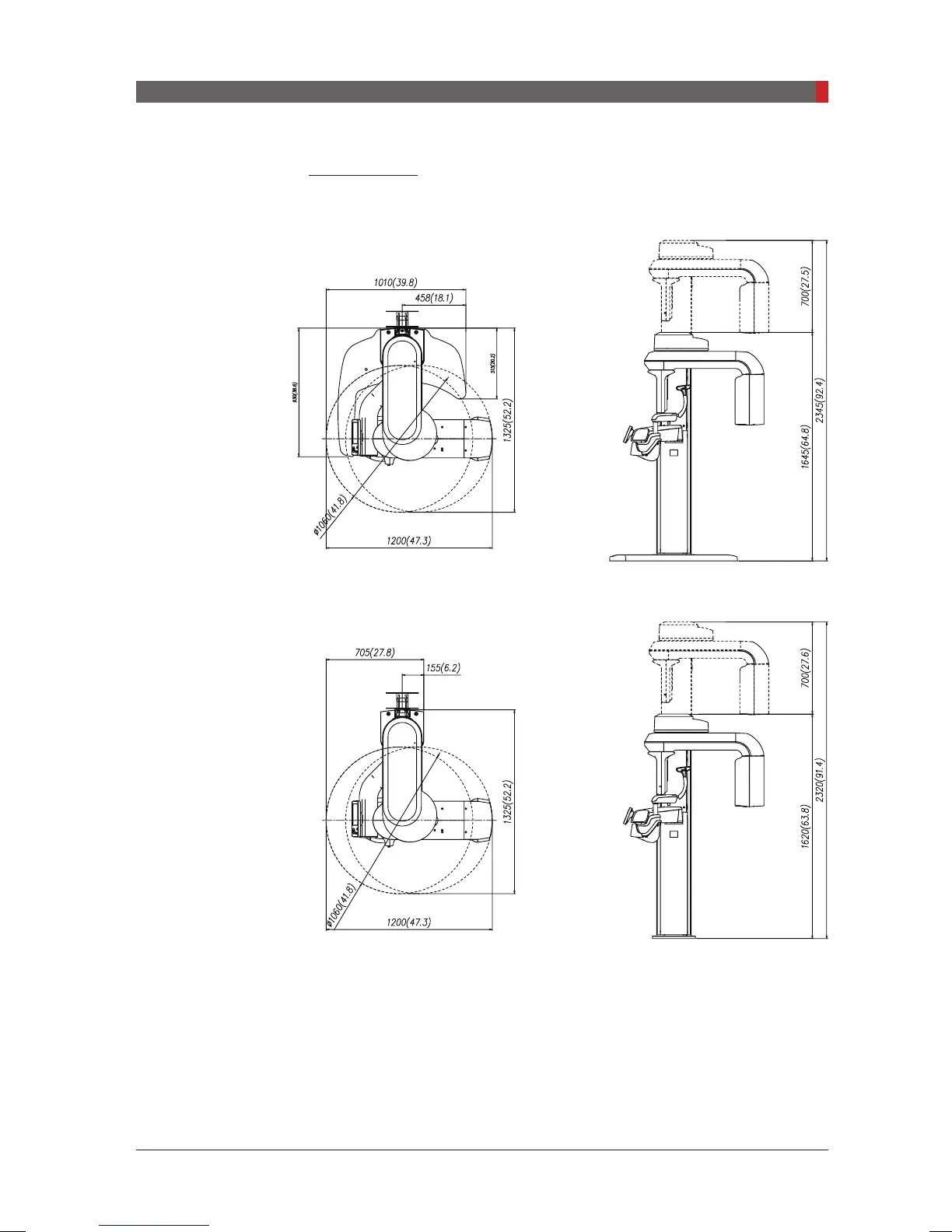

B. Dimension
Without Cephalometric Unit & Base type
Without Cephalometric Unit & Non-Base type
[Unit: mm (Inches)]
[PI3DG_130U_44A_en]User Guide.indd 137
2016-05-24 오후 4:19:15
136
138
Table of Contents
Table of Contents
6
Notice
5
Table of Contents
6
1 General Information
11
Manufacturer's Liability
12
Owner and Operator's Obligations
12
Conventions in this Manual
13
2 Warnings and Precautions
15
General Safety Precautions
16
Electricity-Related Safety Precautions
20
Radiation Safety
21
Warnings
22
3 Pax-I3D Green Imaging System Overview
25
Introduction
26
System Components
26
Features
26
The Pax-I3D Green Model Series (Optional)
28
Standards and Regulations
29
Imaging System Structure
30
General View of the Pax-I3D Green
31
Control Panel
33
Touch Screen
34
Emergency Stop Switch
39
The Exposure Switch
39
Components and Positioning Accessories
40
Marks and Symbols
41
4 Software Overview
43
PC System Requirements (Recommended)
44
Easydent / Ezdent-I
45
Imaging Software Overview
46
Pano
50
Ceph
55
Cbct
57
5 Getting Started
63
5 Getting Started
64
Turning on the Pax-I3D Green
64
Running the Image Viewer
65
Creating a New Patient Record
65
Retrieving Patient Records
67
Initiating the Imaging Program
69
6 Acquiring Pano Images
71
PANO Imaging Program
72
Setting Exposure Parameters
77
Positioning the Patient
80
Positioning the Patient
81
PANO Standard and Bitewing Mode
82
TMJ Open
86
TMJ Close
89
Sinus
90
Initiating X-Ray Exposure
92
Initiating X-Ray Exposure
93
7 Acquiring Ceph Images
95
Setting the Exposure Parameters
96
Positioning the Patient
99
Positioning the Patient
100
Lateral / Full Lateral
101
Frontal (PA)
102
Smv
104
Waters View
105
Carpus
106
Initiating X-Ray Exposure
106
Initiating X-Ray Exposure
107
8 Acquiring Ct Images
111
Default Chapter
112
Setting the Exposure Parameters
112
Positioning the Patient
115
Positioning the Patient
116
Acquiring a SCOUT Image
120
Acquiring a SCOUT Image
121
Starting Imaging with the SCOUT Feature
121
SCOUT Viewer
122
SCOUT Viewer
123
Initiating X-Ray Exposure
124
Troubleshooting
127
10
130
Cleaning and Maintenance
129
Maintenance
130
Regular Maintenance
131
Maintenance Task Checklis
132
12
135
Disposing of the Unit
133
Technical Specifications
135
Technical Specifications
139
Electrical Specifications
145
Appendices
147
1 Recommended X-Ray Exposure Table
148
2 X-Ray Dose Data
150
DAP Table
150
X-Ray Leakage Dose
152
X-Ray Scatter Dose
153
3 Electromagnetic Compatibility (EMC) Information
156
4 Acquiring Image for the Pediatric Dental Patient
161
Age Group: Classification Table
161
Positioning the Pediatric Dental Patient
161
Setting Exposure Values to the Age Group
162
The References Pertinent to the Potential Risks for the Pediatric Patients
162
5 Abbreviations
164
